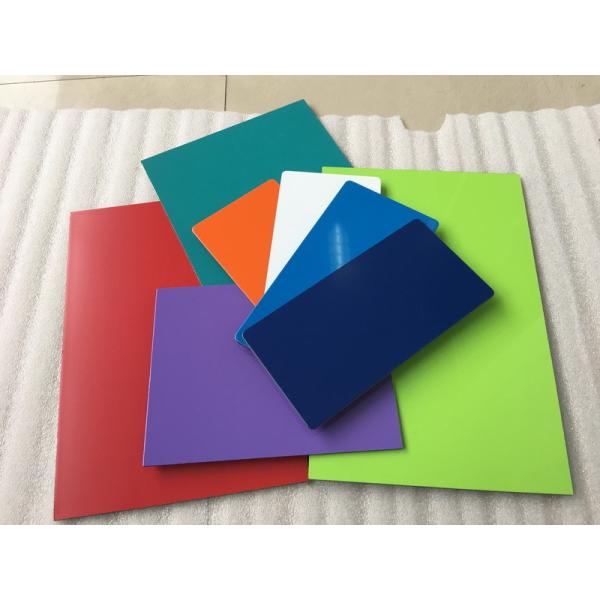

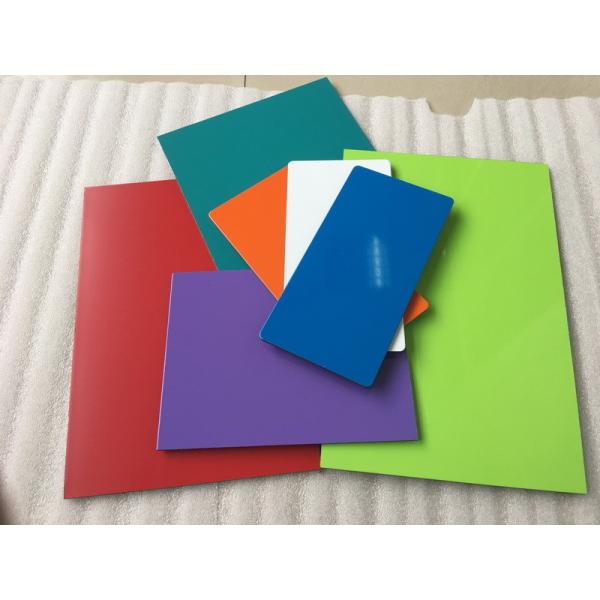

PVDF Insulated Aluminum Composite Material Rustproof With Smooth Surface
PVDF Insulated Aluminum Composite Material Rustproof With Smooth Surface
PVDF Insulated Aluminum Composite Material Rustproof With Smooth Surface
PVDF Insulated Aluminum Composite Material Rustproof With Smooth Surface
Specifications
Brand Name :
OEM
Model Number :
1,500 x 5,700 x 4mm (0.50/0.50mm)
Certification :
ISO9001:2008, ISO14001:2015
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
250,000 + square meters + per month
Delivery Time :
15 days
Packaging Details :
Strong wooden packages according to customer requirements
MOQ :
negotiation
ALUMINUM ALLOY :
AA3105, AA1100, AA3003, AA5005
COLOR :
More than 70 Standard colors and custom colors are available
PACKAGES :
Strong wooden packages for your choice
SIZE :
1,500 x 5,700 x 4mm (0.50/0.50mm)
MOQ :
500 square meter
PAINT :
NANO PVDF paint
Description

Nano PVDF paint Aluminum Composite Material with 1,500 x 5,700 x 4mm (0.50/0.50mm) for wall cladding

Dimensions:
1,500 x 5,700 x 4mm (0.50/0.50mm)
Non-standard Aluminum Composite Material are available, Maximum width is 2,000mm

Aluminum Composite Material Thickness: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
Aluminum Thickness: 0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.50mm
Standard Width: 1220mm, 1250mm,1575mm,1550mm,2000mm (Custom width is also available)
Standard Length: 2440mm, 2500mm, 3000mm, 3050mm, 3660mm, 4000mm, 4880mm ,5000mm or any length according to your requirement

Advantages:
Excellent Coating

Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability

Nano PVDF paint Aluminum Composite Material Standard Index Result Conclusion
Appearance Clean Surface without swell, scrath and aberration Pass Qualified
Deviation of Dimension Deviation of Diagonal: ≤5mm 1mm Qualified
Coating Thickness ≥35um 35u(av.35) Qualified
Hardness of Pencil ≥HB H Qualified
Toughness of Coating ≤2T 2T Qualified
Impact Strength 50 Kg.cm Without paint off and crack Pass Qualified
Boiling Water Resistance Boiling for 2h without change Unchanged Qualified
Acid Resistance Immerse Surface with 5% HCI(v/v) for 24h without change Unchanged Qualified
Alkali Resistance Immerse Surface with 5% NaOH(m/m) for 24h without change Unchanged Qualified
Solvent Resistance Clean 100times without change Bottom unrevealed Qualified
Cleaning Resistance ≥10000 times without change Unchanged Qualified
Bend Strength ≥100Mpa 121Mpa Qualified
Flexuous Modulus of Elasticity ≥2.0x10 4 Mpa 3.12x10 4 Mpa Qualified
Cutting Strength ≥28.0 Mpa 32.0 Mpa Qualified
180°Peel strength ≥7.0 N/mm 11.2N/mm Qualified
Salt Haze Resistance(3000h) Not less than Grade 2 Grade 1 Qualified
Artificial Weathering(4000h) Artificial Resistance Aberration ≤4.0 1.24 Qualified
Aging Resistance out of Light Not less than Grade 2 Grade 1 Qualified


Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 10-year guarantee for polyester aluminum composite panels

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case

PVDF Insulated Aluminum Composite Material Rustproof With Smooth SurfacePVDF Insulated Aluminum Composite Material Rustproof With Smooth Surface
