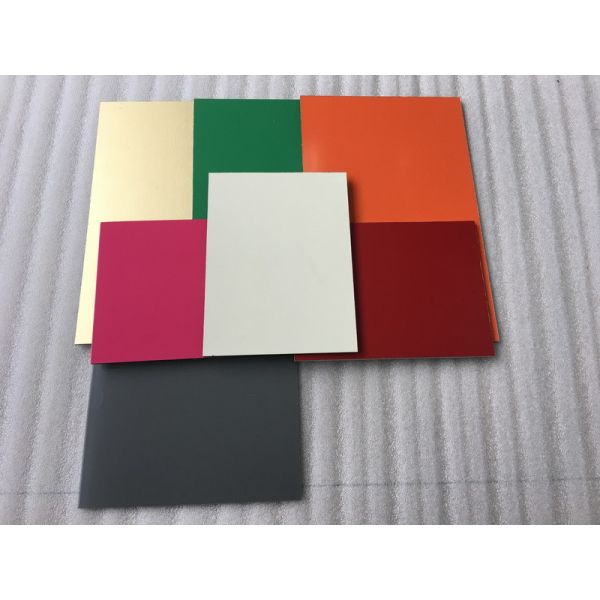

Colorful Aluminum Composite Cladding Materials , Exterior Wall Covering Materials
Colorful Aluminum Composite Cladding Materials , Exterior Wall Covering Materials
Colorful Aluminum Composite Cladding Materials , Exterior Wall Covering Materials
Colorful Aluminum Composite Cladding Materials , Exterior Wall Covering Materials
Specifications
Brand Name :
OEM
Model Number :
2,000 x 3,600 x 3mm (0.30/0.30mm)
Certification :
ISO9001:2008, ISO14001:2015
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
250,000 + square meters + per month
Delivery Time :
15 days
Packaging Details :
Strong wooden packages according to customer requirements
MOQ :
negotiation
ALUMINUM ALLOY :
AA1100, AA3003, AA3105
COLOR :
Custom colors are available for your choice
PACKAGES :
Strong wooden cases with fumigation
SIZE :
2,000 x 3,600 x 3mm (0.30/0.30mm)
MOQ :
500 square meter
PAINT :
Polyester / Polyester
Description

Polyester paint Aluminum Composite Material with 2,000 x 3,600 x 3mm (0.30/0.30mm)

Dimensions:
2,000 x 3,600 x 3mm (0.30/0.30mm)


Other specifications available, according to customers' requirements
3) Various colors are available according to customers' demand
4) Great weather adaptabilities, high intensity, and easy maintenance
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) High impact resistance and good plasticity
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 10-year guarantee for polyester aluminum composite panels


Advantages:
Excellent Coating
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability

Items (POLYESTER ACP) Standard Index Result Conclusion
Appearance Clean Surface without swell, scrath and aberration Pass Qualified
Deviation of Dimension Deviation of Diagonal: ≤5mm 1mm Qualified
Thickness of Coating ≥18um 19um Qualified
Hardness of Pencil ≥HB 2H Qualified
Toughness of Coating ≤2T 2T Qualified
Impact Strength 30 Kg.cm Without paint off and crack Pass Qualified
Boiling Water Resistance Boiling for 2h without change Unchanged Qualified
Acid Resistance Immerse Surface with 2% HCI(v/v) for 24h without change Unchanged Qualified
Alkali Resistance Immerse Surface with 2% NaOH(m/m) for 24h without change Unchanged Qualified
Solvent Resistance Clean 200 times without change Bottom unrevealed Qualified
Cleaning Resistance ≥10000 times without change Unchanged Qualified
Bend Strength ≥100Mpa 121Mpa Qualified
Flexuous Modulus of Elasticity ≥2.0x10 4 Mpa 3.12x10 4 Mpa Qualified
Cutting Strength ≥28.0 Mpa 32.0 Mpa Qualified
180°Peel strength ≥7.0 N/mm 11.2N/mm Qualified
Salt Haze Resistance(3000h) Not less than Grade 2 Grade 1 Qualified
Artificial Weathering(4000h) Artificial Resistance Aberration ≤4.0 1.24 Qualified
Aging Resistance out of Light Not less than Grade 2 Grade 1 Qualified

Specifications:
1. Standard:
Total thickness:2mm, 3mm, 4mm, 5mm, 6mm
Alu. Thickness: 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.21mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm
Width: 1220, 1250,1500,1550,2000mm (Special width is also available)
Length: standard length 2440mm,3050mm,3660mm, 4880mm ,5000mm or any length you need



(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case

Colorful Aluminum Composite Cladding Materials , Exterior Wall Covering MaterialsColorful Aluminum Composite Cladding Materials , Exterior Wall Covering Materials
