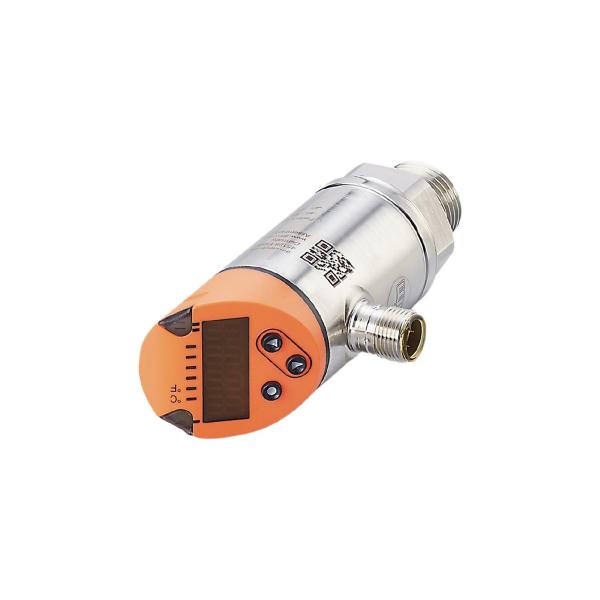

IP67 IFM Evaluation Unit With Display For PT100 PT1000 TR2439 Temperature Sensors
IP67 IFM Evaluation Unit With Display For PT100 PT1000 TR2439 Temperature Sensors
IP67 IFM Evaluation Unit With Display For PT100 PT1000 TR2439 Temperature Sensors
IP67 IFM Evaluation Unit With Display For PT100 PT1000 TR2439 Temperature Sensors
IP67 IFM Evaluation Unit With Display For PT100 PT1000 TR2439 Temperature Sensors
IP67 IFM Evaluation Unit With Display For PT100 PT1000 TR2439 Temperature Sensors
IP67 IFM Evaluation Unit With Display For PT100 PT1000 TR2439 Temperature Sensors
IP67 IFM Evaluation Unit With Display For PT100 PT1000 TR2439 Temperature Sensors
Specifications
Brand Name :
IFM
Model Number :
TR2439
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
IFM
Product No :
TR2439
Communication interface :
IO-Link
Protection class :
III
Total number of outputs :
2
Protection :
IP 67
Description

IFM Evaluation unit with display for PT100/PT1000 temperature sensors TR2439 TR-000KDBM12-MFPKG/US/

Very large temperature evaluation range

Programmable switching output with IO-Link and scalable analog output

Intuitive and user-friendly 3-pushbutton control

Red/green display for clear identification of the acceptable range

Automatic recognition of the connected sensor type

Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
Measuring range -100...600 °C-148...1112 °F
Communication interface IO-Link
Process connection threaded connection G 1/2 external thread

Application

System gold-plated contacts
Application for Pt100 and Pt1000 measuring elements

Electrical data

Operating voltage[V] 18...32 DC; (cULus - Class 2 source required)
Current consumption[mA] < 50
Protection class III
Reverse polarity protection yes
Power-on delay time[s] 1
Integrated watchdog yes

Inputs / outputs

Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1

Outputs

Total number of outputs 2
Output signal switching signal; analog signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 1
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 250
Number of analog outputs 1
Analog current output[mA] 4...20
Max. load[Ω] 500
Analog voltage output[V] 0...10
Min. load resistance[Ω] 2000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes

Measuring/setting range

Measuring range -100...600 °C-148...1112 °F
Factory setting -40...300 °C / -40...572 °F
Set point SP -99.8...600 °C-147.6...1112 °F
Reset point rP -100...599.8 °C-148...1111.6 °F
Analog start point -100...595 °C-148...1103 °F
Analog end point -95...600 °C-139...1112 °F
In steps of 0.1 °C0.1 °F

Accuracy / deviations

Switch point accuracy[K] ± 0,3 + (± 0,1 % MS)
Precision analog output[K] ± 0,3 + (± 0,1 % MS)
Display accuracy[K] ± 0,3 + (± 0,1 % MS)
Temperature coefficient[% of the span / 10 K] 0,1; (In case of deviation from the reference condition 25 ± 5 °C)

Reaction times

Response time[ms] 390
Max. response time analog output[ms] 390

Software / programming

Parameter setting options hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output

Interfaces

Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
