Leuze FT328.34P-M12 Energetic Diffuse Photoelectric Sensor

Specifications

Certification :

ATEX

Warranty :

1year

Supply Ability :

100pcs per month

Mounting Hole Spacing :

7.874" (200.00mm)

Payment Terms :

T/T,Alipay,Paypal

Storage :

2 GB Compact Flash Card

Price :

Negotiate

Packaging Details :

carton

Measuring Length :

50...7620 mm

Place of Origin :

Pressure Range :

0-125 PSI

MOQ :

Version :

Snap contact

Delivery Time :

FT328.34P-M12

Tightening Torque :

35 N.m

Brand Name :

Leuze

Flow :

0.70 Cv

Description

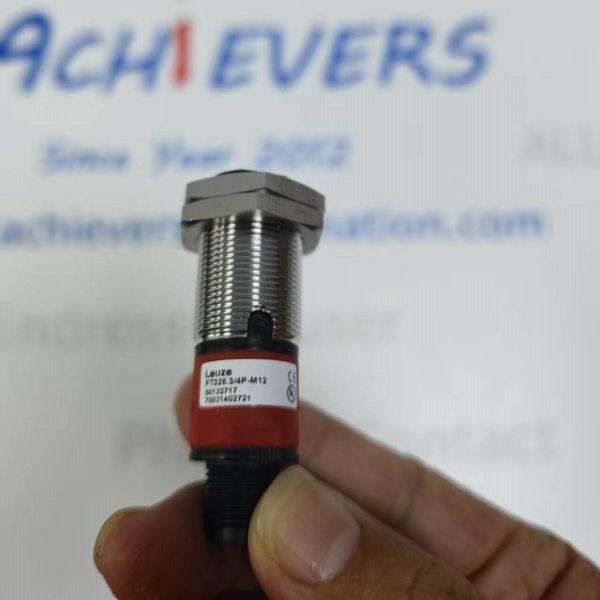

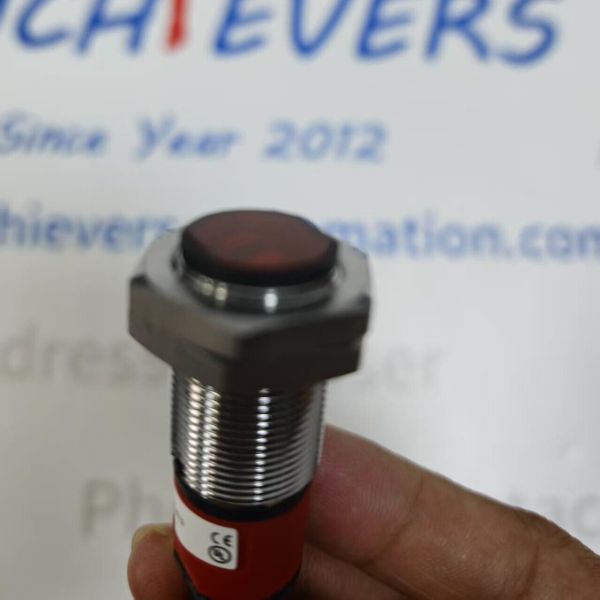

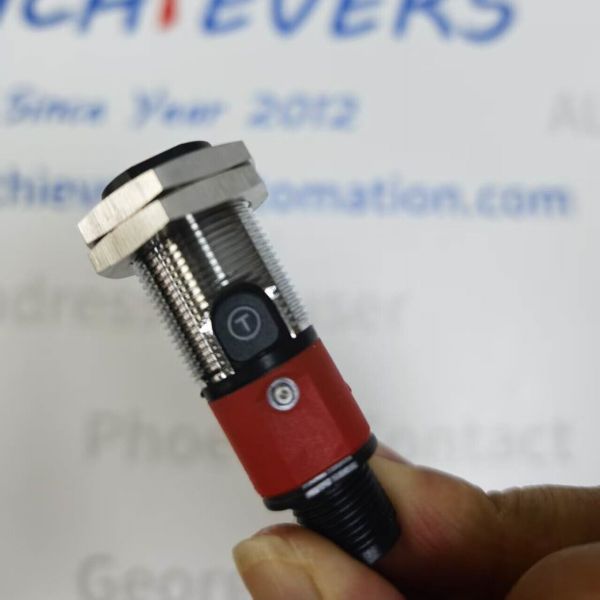

Leuze FT328.34P-M12 Energetic Diffuse Photoelectric Sensor

Product Details:
Manufacturer : Leuze

Product No. : FT328.34P-M12

https://www.achievers-automation.com More Products

Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

It features an M18×1 stainless steel threaded barrel and A-coded M12 4-pin male plug for fast field wiring without stripping cable cores. Two independent PNP transistor outputs deliver light-switch and dark-switch signals simultaneously to PLC input modules. Red pulsed LED light source enhances anti-interference capacity against ambient factory lighting and workpiece reflective surface fluctuations. Dual LED indicators (green power status, yellow detection signal) enable direct on-site troubleshooting without disassembling machine housings.

Detail:

Parameter Item	Technical Specification
Full Model Number	FT328.34P-M12 (FFT328.34P-M12)
Manufacturer	Leuze Electronic
OEM Order Code	50122717
Detection Principle	Energetic Diffuse Reflection with Triangulation Background Suppression
Light Source	Red Pulsed LED, 620 nm Wavelength, Exempt Laser Group EN62471
Rated Sensing Range (90% White Target)	1 mm ~ 280 mm
Sensing Range (18% Gray Target)	3 mm ~ 180 mm
Sensing Range (6% Black Target)	5 mm ~ 120 mm
Supply Voltage	10 VDC ~ 30 VDC (15% max residual ripple)
Digital Switching Outputs	2 × PNP Transistor; OUT1 Light Switch, OUT2 Dark Switch
Max Single Output Load Current	100 mA
Voltage Drop at Full Load	≤ 2.5 V
No-Load Supply Current	≤ 25 mA
Max Switching Frequency	500 Hz
Response Time	≤ 1 ms
Startup Readiness Delay	300 ms
Mechanical Thread Spec	M18 × 1 mm, V2A Stainless Steel Sleeve
Overall Dimension	Ø18 mm × 46 mm
Electrical Connection	M12 A-coded Male Plug, 4-Pin
Adjustment Method	Physical Teach-In Button Calibration
Net Weight	20 g
Indicator Lights	Green LED (Power Ready), Yellow LED (Object Detected)

Specification Item	Technical Value
Operating Ambient Temperature	-40 °C ~ +60 °C
Storage Temperature Range	-40 °C ~ +70 °C
Ingress Protection Rating	IP67, Dust-tight & Splash-proof
Protection Class	Class III (Extra Low Voltage Safety)
Built-in Circuit Protection	Reverse Polarity Protection, Short-Circuit Protection for All Outputs
Anti-Interference Performance	Immune to Incandescent, Fluorescent and LED Workshop Ambient Light
Lens Housing Material	Impact-Resistant ABS Plastic
Thread Sleeve Material	V2A Nickel-Plated Stainless Steel
Compliance Standards	IEC 60947-5-2, EN 62471
Global Certifications	cULus Listed, RoHS Compliant
ECLASS Classification Code	27270903
Allowable Vibration Resistance	10–2000 Hz per EN 60068-2-6
Anti-Background Disturbance	Automatically Suppress Static Rear Background Reflection
Service Life	≥ 100 Million Switching Cycles
