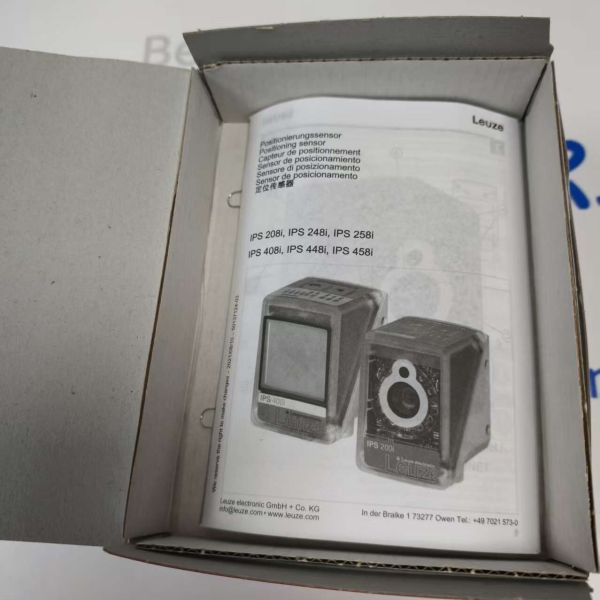

Leuze IPS 248i FIX-M3-102-I3 High-Precision Smart Vision Positioning Sensor

Specifications

Brand Name :

Leuze

Model Number :

IPS 248i FIX-M3-102-I3

Certification :

ATEX

Place of Origin :

MOQ :

Price :

Negotiate

Payment Terms :

T/T,Alipay,Paypal

Supply Ability :

100pcs per month

Packaging Details :

carton

Flow :

0.70 Cv

Warranty :

1year

Pressure Range :

0-125 PSI

Version :

Snap contact

Measuring Length :

50...7620 mm

Storage :

2 GB Compact Flash Card

Mounting Hole Spacing :

7.874" (200.00mm)

Tightening Torque :

35 N.m

Description

Leuze IPS 248i FIX-M3-102-I3 High-Precision Smart Vision Positioning Sensor

Product Details:
Manufacturer : Leuze

Product No. : IPS 248i FIX-M3-102-I3

https://www.achievers-automation.com More Products

Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

The Leuze IPS 248i FIX-M3-102-I3 is a compact, high-performance smart vision camera designed for camera-based fine compartment positioning in automated warehouse and intralogistics systems. As a core model of Leuze’s IPS 200i series intelligent vision sensors, this device delivers reliable, high-precision visual positioning for stacker cranes and automated storage and retrieval systems (AS/RS).

Detail:

Technical Item	Parameter Value
Product Model	IPS 248i FIX-M3-102-I3
Manufacturer	Leuze Electronic
Product Series	IPS 200i Smart Vision Sensor
Core Application	Camera-based fine compartment positioning for AS/RS stacker cranes
Image Sensor Type	Monochrome industrial camera
Camera Resolution	1280 px (horizontal) × 960 px (vertical)
Working Distance Range	100 mm – 600 mm
Positioning Repeatability	0.1 mm (1 Sigma, application-dependent)
Light Source Type	Pulsed infrared LED
Electronic Exposure Time	0.068 ms – 5 ms
Applicable Marker Size	5 mm – 20 mm (round marker)
Operating Voltage Range	18 V DC – 30 V DC
Average Power Consumption	8 W
Digital Input Quantity	3 channels
Digital Output Quantity	5 channels
Max Switching Current	100 mA per output channel
Protection Functions	Short-circuit protection, reverse polarity protection
Communication Protocols	PROFINET RT Class B, TCP/IP, UDP
Ethernet Transmission Speed	10/100 Mbit/s auto-negotiation

Physical & Environmental Item	Parameter Value
Product Dimensions (H × W × L)	43 mm × 44 mm × 61 mm
Net Weight	120 g
Main Connector Type	M12 12-pin male round connector (A-coded, metal housing)
Connector Functions	Power supply, digital signal input, digital signal output
Network Architecture	Client/Server mode
IP Address Assignment	Manual configuration / DHCP automatic acquisition
Operating Temperature Range	0 °C to +45 °C
Storage Temperature Range	-30 °C to +70 °C
Operating Humidity	90% non-condensing
Housing Structure	Compact integrated industrial housing, dust-proof and anti-interference
Software Functions	Precision position fine-tuning, real-time position deviation detection, quality score feedback
Industrial Adaptability	Anti-ambient light interference, stable continuous operation for long-cycle logistics equipment
