Specifications
Model Number :
UT55A-021-10-00 LP
Brand Name :
YOKOGAWA
MOQ :
1
Delivery Time :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Ambient Temperature :
-
Supply Ability :
100pcs per month
Power Supply :
1
Price :
Negotiable
Electrical Rating :
G
Certification :
ATEX
Certifications :
S
Place of Origin :
KR
Packaging Details :
carton
Description
Yokogawa UT55A-021-10-00/LP | 1/4 DIN PID Controller, 4 DI, 2 DO, 24V DC
Yokogawa UT55A-021-10-00/LP digital indicating controller. 1/4 DIN, universal input, 4-digit LED, 4 DI / 2 DO, 24V DC supply, ladder program function, IP66 front.

Product Overview

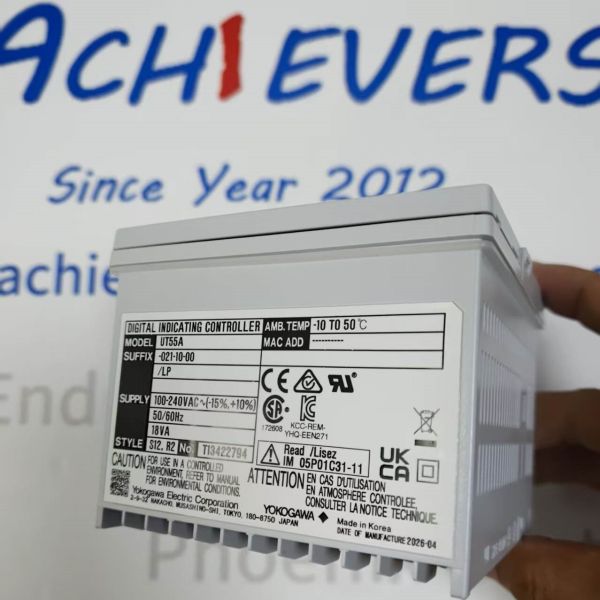

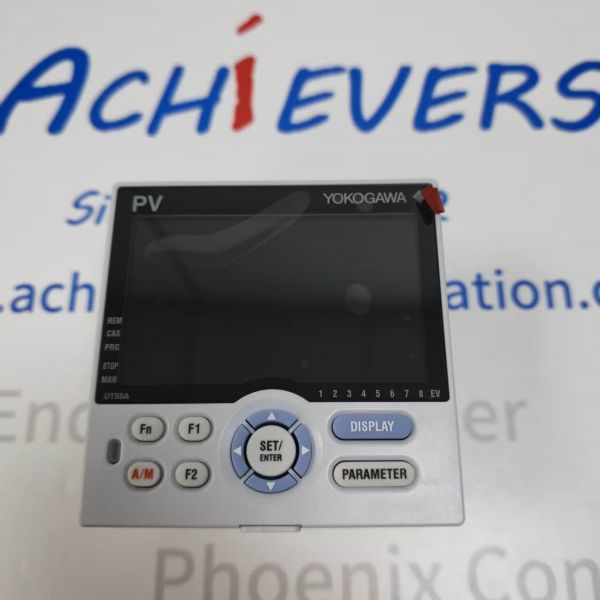

The Yokogawa UT55A-021-10-00/LP​ is a 1/4 DIN (92×92mm) digital indicating controller​ from the UTAdvanced (UT55A) series. It features a universal input​ (TC, RTD, mA, V), 4-digit 7-segment LED display, 4 digital inputs, 2 relay contact outputs, and a ladder sequence program function​ for custom control logic. Powered by 24V DC, this model is designed for precise PID temperature and process control in furnaces, ovens, packaging machines, and semiconductor equipment.

Technical Specifications (Control & I/O)

Parameter
Specification
Model / Series​
UT55A-021-10-00/LP​ (UTAdvanced Series)
Panel Size​
1/4 DIN​ (92 × 92 mm cutout)
Input Type​
Universal​ — TC (K, J, R, S, etc.), RTD (Pt100), 0–20mA, 4–20mA, 0–5V, 1–5V
Control Outputs​
2 Relay Contact Outputs​ (Standard — for Heat/Cool or Alarm)
Digital Inputs (DI)​
4 points​ (for RUN/STOP, SP change, Auto/Man, etc.)
Digital Outputs (DO)​
Not included​ (Relay outputs serve as control/alarm; optional expansion DO on comms module)
Control Algorithm​
PID with Auto-tuning (AT), ON/OFF, PD, PI, 2-degrees-of-freedom PID
Special Function​
Ladder Program Function (/LP suffix)​ — 64 steps user logic

Technical Specifications (Electrical & Mechanical)

Parameter
Specification
Power Supply​
24 V DC​ (±10%, 50/60 Hz)
Display Type​
4-digit 7-segment LED (PV) + 4-digit (SV/Param) + Status LEDs
Communication (Option)​
Not included in base (-00 = no comms module; can add FA-M3/PROFIBUS/ETH later)
Front Protection​
IP66 / NEMA 4X​ (Faceplate)
Case Depth​
~100 mm behind panel
Ambient Temperature​
0 … +50 °C​ (Operating)
Standards​
CE, UL, cUL, KC

Key Features

  • Ladder Sequence Programming (/LP):​ Built-in 64-step ladder logic allows creation of custom interlock sequences, alarm logic, and start-up procedures — reducing the need for external PLC I/O.
  • Universal Input Flexibility:​ One device covers TC, RTD, voltage, and current signals — simplifies spares inventory.
  • Dual Output + 4 DI:​ Two relay outputs handle heat/cool or heat/alarm; four digital inputs allow external switch control of setpoints, mode changes, or hold functions.
  • Advanced PID with Self-Tune:​ Auto-tuning determines optimal PID constants on first heat-up; robust against process gain changes common in thermal applications.

Applications

  • Heat Treatment & Furnaces:​ Kiln, oven, and furnace temperature control with ramp/soak (via ladder or external programmer).
  • Plastic & Packaging Machines:​ Barrel and sealing jaw temperature regulation with custom start/stop logic.
  • Semiconductor Process Tools:​ Precise bath and chuck temperature control with interlock functions.
  • Food & Pharmaceutical Ovens:​ Sanitary-area temperature monitoring with NEMA 4X front face.
Note: "/LP" indicates the Ladder Program Function​ is enabled. The "-021-10-00" breakdown: 0=UT55A, 2=24V DC, 1=Relay x2 + 4DI, 0=No retransmission, 10=Eng. text / Std spec, 00=No comms/options. For RS-485 or Ethernet communication, a plug-in communications module (FA-M3 etc.) must be added separately.
