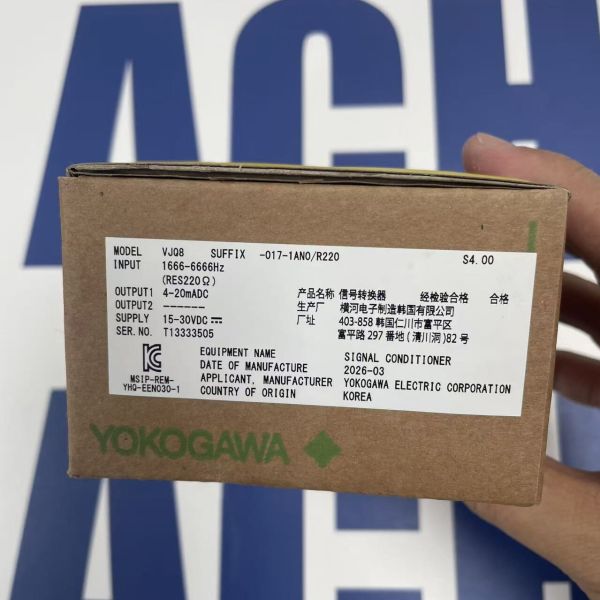

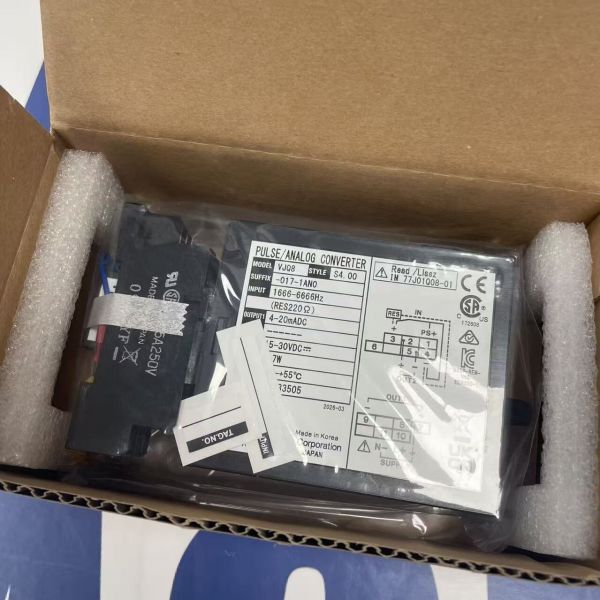

YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω
YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω
YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω
YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω
YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω
YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω
Specifications
Brand Name :
YOKOGAWA
Model Number :
VJQ8-017-1AN0R220
Certification :
ATEX
Place of Origin :
JP
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω

YOKOGAWA VJQ8-017-1AN0R220 signal conditioner. Converts frequency/pulse to 4-20mA, 15-30V DC power, 220Ω shunt resistor, 76x29.5x124.5mm.

Product Overview

The YOKOGAWA VJQ8-017-1AN0R220​ is a microprocessor-based frequency/pulse to analog converter​ from the JUXTA VJ series. It features single-channel isolation​ and converts a frequency or pulse input into a standard 4-20 mA DC analog output. This model is powered by 15-30V DC​ and includes a built-in 220 Ω shunt resistor​ (denoted by /R220) for current loop applications. Its compact, plug-in design is used for signal conditioning and isolation in process control systems.

Technical Specifications (Electrical & I/O)

Parameter

Specification

Model Code​

VJQ8-017-1AN0R220​

Function​

Frequency / Pulse to Analog Converter

Input Signal​

Frequency, Pulse (Open Collector, etc.)

Output Signal​

4-20 mA DC​ (Isolated)

Power Supply​

15 ... 30 V DC​ (±20%)

Transmitter Supply​

24 V DC ±10% (for 2-wire sensor)

Shunt Resistor​

220 Ω​ (Internal, Fixed)

Isolation​

Input/Output/Power 3-way Isolation

Technical Specifications (Physical & Environmental)

Parameter

Specification

Housing Series​

JUXTA VJ (Plug-in Type)

Dimensions (HxWxD)​

76 mm x 29.5 mm x 124.5 mm​

Operating Temperature​

-10 °C ... +55 °C

Storage Temperature​

-25 °C ... +70 °C

Ambient Humidity​

10 ... 90% RH (Non-condensing)

Mounting​

DIN Rail (35 mm)

Standards​

CE, UL, CSA (Note: Check local approval status)

Configuration​

PC (VJ77) or Handheld Terminal (JHT200)

Key Features

  • Signal Conversion:​ Converts frequency or pulse signals (e.g., from flow meters, tachometers) into a standardized 4-20 mA process signal.

  • Built-in Resistor:​ The /R220 option provides an internal 220 Ω shunt resistor, simplifying loop configuration without external components.

  • Compact Isolation:​ Provides 3-way isolation (Input/Output/Power) in a slim 29.5mm wide housing, saving panel space.

Applications

  • Flow meter signal conditioning (frequency to 4-20mA)

  • Speed monitoring and tachometer signal processing

  • Signal isolation and conversion in DCS/PLC analog input systems
