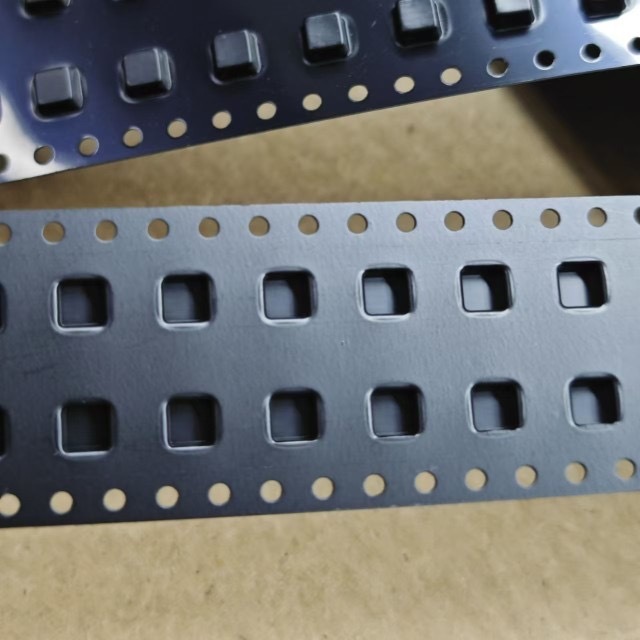

16mm Clear PS ESD Carrier Tape for SMT SMD Component Packaging
16mm Clear PS ESD Carrier Tape for SMT SMD Component Packaging
16mm Clear PS ESD Carrier Tape for SMT SMD Component Packaging
16mm Clear PS ESD Carrier Tape for SMT SMD Component Packaging
Specifications
Model Number :
Customizable
MOQ :
2000 Meters
Delivery Time :
5-8 work days
Brand Name :
ACE DELIXIN
Packaging Details :
Carton box packing
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Material :
PS/PC/PET
Place of origin :
Shenzhen, China
Certification :
ROHS,SGS
Price :
Discussable
ESD Value :
10E5 to 10E9
Supply Ability :
200000meters per month
Color :
Black or Clear
Size :
Customizable
Place of Origin :
Shenzhen, China
Description

Custom Embossed Carrier Tape PS PET PC for IC Semiconductor SMT Packaging

Typical Applications

The carrier tape can be configured for different electronic component packages and automated assembly requirements, including:

  • Chip Resistors
  • MLCC Capacitors
  • SMD LEDs
  • Diodes
  • Transistors
  • IC Components
  • QFN / DFN Packages
  • Connectors
  • Sensors
  • Semiconductor Components
  • Other Customized SMD Devices

For components with special dimensions or irregular package configurations, the pocket geometry can be developed according to the customer's component drawing or physical sample.

Why Choose a Customized Carrier Tape?

Different electronic components require different pocket dimensions, cavity depths and pitches. A carrier tape designed specifically for the component can provide better positioning and feeding performance than a standard tape that does not match the package geometry.

For customized projects, the engineering process can start from a component sample, dimensional drawing, package specification or existing carrier tape sample. The pocket structure is then developed around the actual component dimensions and packaging requirements.

This allows important details such as pocket size, cavity depth, pitch, component positioning and tape configuration to be evaluated before volume production.

Parameter Specification
Product Type SMD / SMT Embossed Carrier Tape
Available Width 8–104 mm
Material PS / PC / PET
Thickness 0.2–1.0 mm
Pocket Depth 0.3–40 mm
Pocket Design Customized according to component dimensions
Pocket Pitch Customized
Pocket Geometry Customized cavity shape and dimensions
ESD Protection Anti-static / Conductive options available
Color Options Black / Transparent / Customized
Component Type Resistors, Capacitors, LEDs, ICs, Connectors, Sensors, Semiconductors
Packaging Function Component Packaging, Protection, Transportation and Automated Feeding
Feeding Application SMT Pick-and-Place / Automated Component Feeding
Cover Tape Heat-Seal or Pressure-Sensitive Cover Tape Compatible

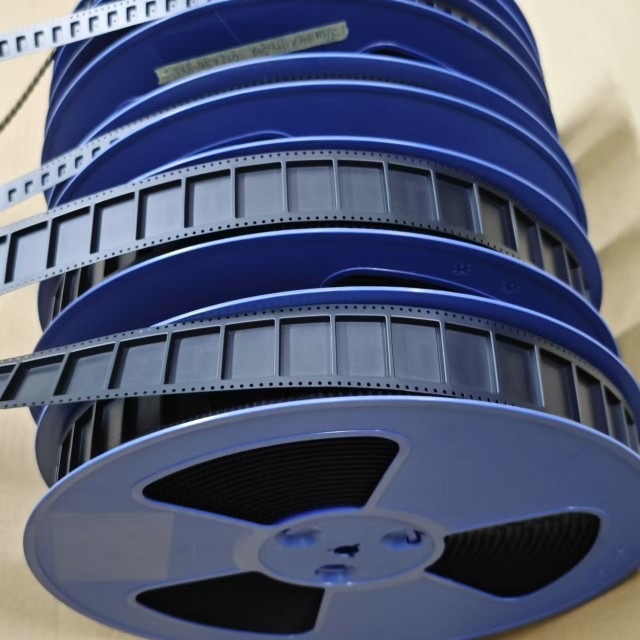

Reel Plastic Reel Compatible
Tooling Customized Tooling Available
Prototype Prototype Sample Available
Engineering Support Pocket Design, Tooling Development and Sample Verification
OEM / ODM Supported
Production Capability Prototype to Mass Production
Customization Width, Thickness, Pocket, Pitch and Packaging Configuration
