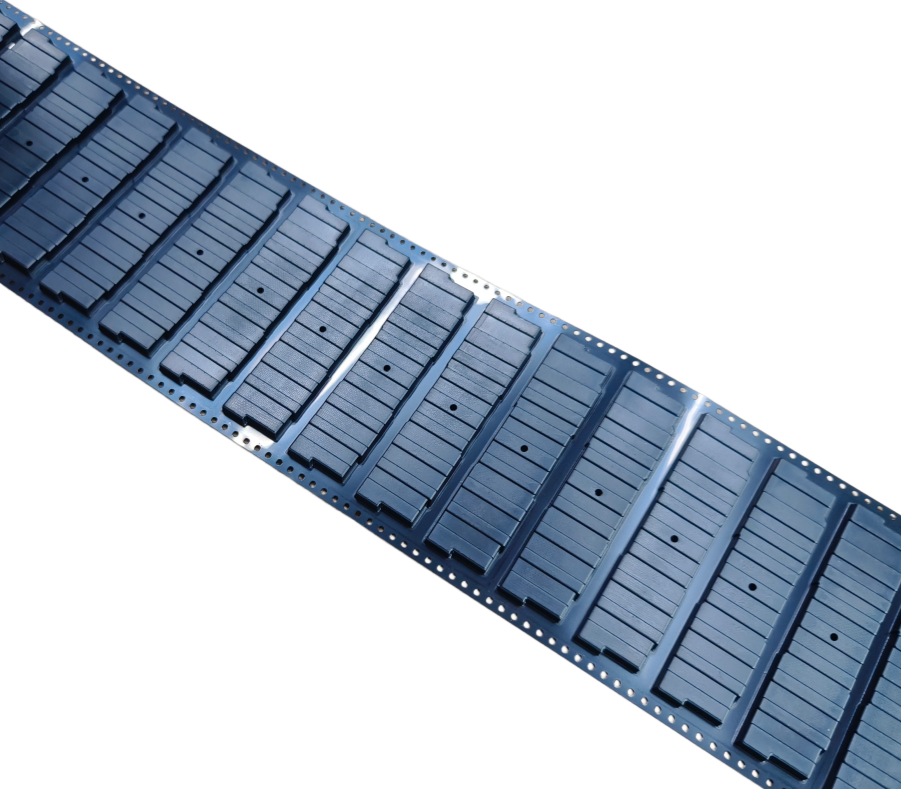

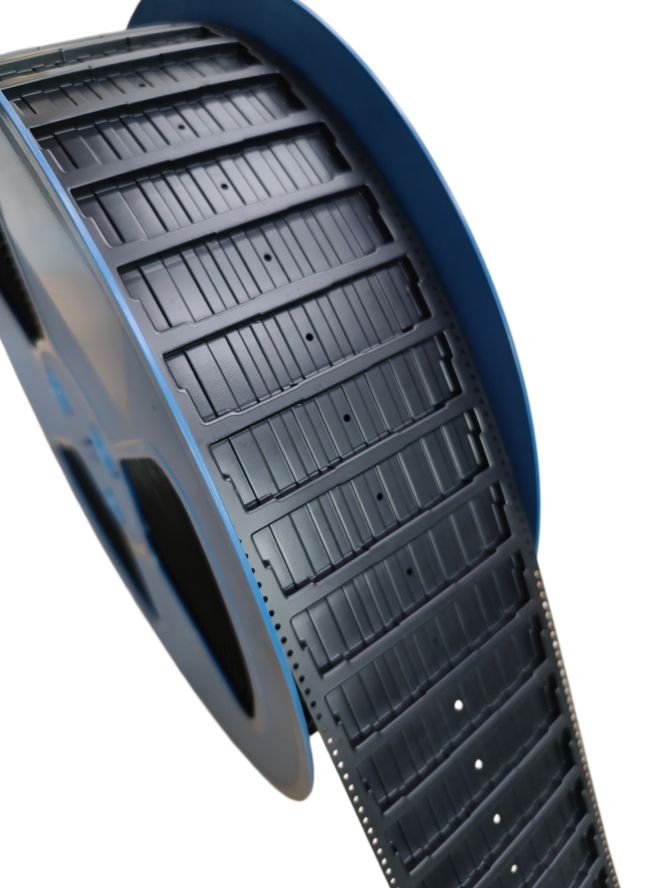

10⁶-10⁹ Ω Surface Resistance Antistatic PC Carrier Tape for Sensitive ICs
10⁶-10⁹ Ω Surface Resistance Antistatic PC Carrier Tape for Sensitive ICs
Specifications
Model Number :
Customizable
MOQ :
2000 Meters
Delivery Time :
5-8 work days
Brand Name :
ACE DELIXIN
Packaging Details :
Carton box packing
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Material :
PS/PC/PET
Place of origin :
Shenzhen, China
Price :
Discussable
ESD Value :
10E5 to 10E9
Supply Ability :
200000meters per month
Color :
Black or Clear
Certification :
ROHS,SGS
Size :
Customizable
Place of Origin :
Shenzhen, China
Description

High-Transparency Polycarbonate (PC) Carrier Tape with High Heat Resistance

Product Overview

Carrier tape, also known as component tape, is a strip-shaped electronic packaging material specially developed for automated packaging in Surface Mount Technology (SMT). Equipped with equidistant pockets (recesses) for holding electronic components and precise sprocket indexing holes along its length, the pockets carry components while the indexing holes engage with the gears of SMT feeders to achieve accurate step-by-step transportation.
Used together with cover tape, carrier tape forms sealed packaging by heat-sealing cover tape on top. It safeguards electronic components against contamination and damage during transportation, storage and automated production. During SMT assembly, the cover tape is peeled off. The pick-and-place machine positions via indexing holes and sequentially retrieves components from pockets for mounting onto PCBs.
Parameter Specification
Material PS (Polystyrene), PC (Polycarbonate), PET, ABS
Tape Width 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm
Tape Thickness 0.3mm, 0.35mm, 0.4mm, 0.5mm
Color Black (Conductive Type), Transparent (Antistatic Type)
Performance Grade Conductive, Antistatic, Non-conductive & Non-antistatic
Winding Type Single Wind, Cross Wind
Compliance Standard EIA-481
10⁶-10⁹ Ω Surface Resistance Antistatic PC Carrier Tape for Sensitive ICs10⁶-10⁹ Ω Surface Resistance Antistatic PC Carrier Tape for Sensitive ICs
