Specifications
Brand Name :
FIREPOWER
Model Number :
MFOG-091A
Place of Origin :
China
MOQ :
1
Price :
1500$
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 week for sample
Packaging Details :
sponge+box
Measuring Range :
±300°/s
Zero-bias stability (10s, 1σ, °/h) :
2°/h
Angular random walk (°/H1/2) :
≤0.04°/h
Zero-Bias Repeatability :
≤2°/h
Scale factor stability (RMS,%) :
7±0.7mv/o/s
Power supply (V) :
5+0.15V
Dimension :
24X51.6mm
Weight :
≤30g
Description
Micro-Nano Integrated Fiber Optic Gyroscope Fizoptika Vg091 for Industrial Control
Product Specifications
Attribute Value
Measuring Range ±300°/s
Zero-bias stability (10s, 1σ, °/h) 2°/h
Angular random walk (°/H1/2) ≤0.04°/h
Zero-Bias Repeatability ≤2°/h
Scale factor stability (RMS,%) 7±0.7mv/o/s
Power supply (V) 5+0.15V
Dimension 24X51.6mm
Weight ≤30g
Product Description

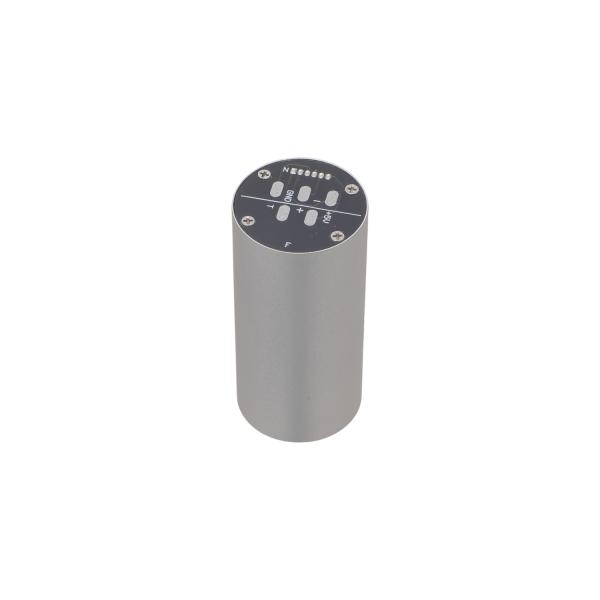

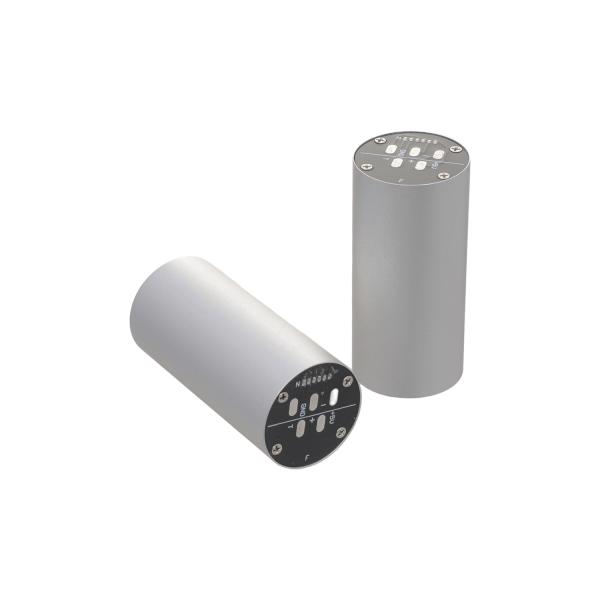

The MFOG-091A micro-nano fiber optic gyroscope is an angular rate sensor integrating optics, mechanics and electronics. Based on the Sagnac effect, it incorporates various micro-nano fiber devices and implements the detection process by measuring, processing, and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product consists of optical path components, circuit components and structural components. It features a simple structure with no moving parts or wear components, offering fast startup, compact size, and lightweight design. Suitable for attitude control and measurement of carriers.

Product Composition
  • Optical path assembly
  • Detection and control signal circuit board
  • Optical fiber ring skeleton, shell and other structural parts
Technical Parameters
Serial No. Project Performance Indicators
1 Range (°/s) ±300
2 Scale factor 7±0.7mv/o/s
3 Scale factor nonlinearity (ppm) ≤1000
4 Zero-bias stability (10s, 1σ, °/H) ≤2
5 Zero-bias repeatability (1σ, °/H) ≤2
6 Angular random walk (°/H 1/2) ≤0.04
7 Zero bias (°/s) ≤0.05
8 Bandwidth 3dB Band Width (Hz) ≥450
9 Power supply (V) 5 ± 0.15
10 Power Consumption (W) ≤0.7
11 Dimension (mm) φ24X51.6
Outline Drawing
Micro-Nano Integrated Fiber Optic Gyroscope Fizoptika Vg091 for Industrial control
