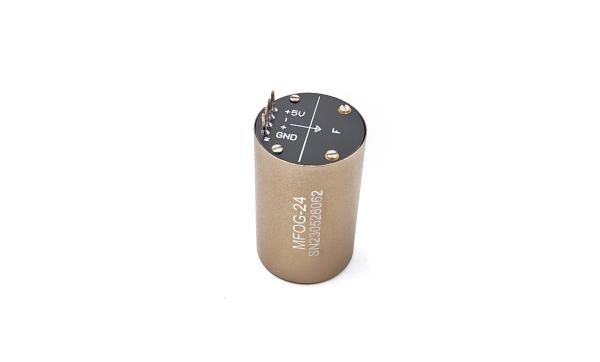

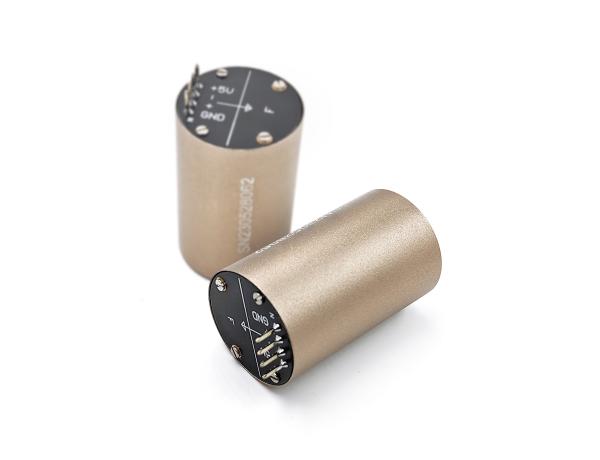

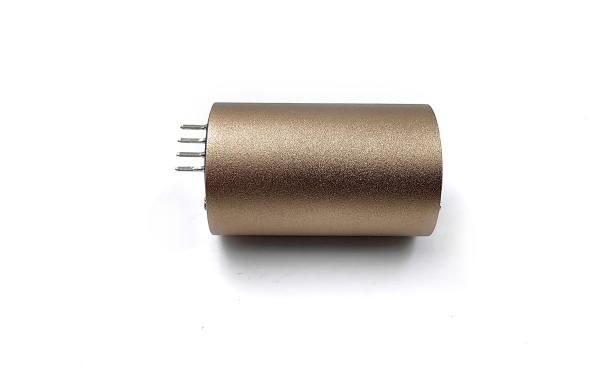

Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg091 Replacement for UAV
Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg091 Replacement for UAV
Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg091 Replacement for UAV
Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg091 Replacement for UAV
Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg091 Replacement for UAV
Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg091 Replacement for UAV
Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg091 Replacement for UAV
Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg091 Replacement for UAV
Specifications
Brand Name :
FIREPOWER
Model Number :
MFOG-091
Certification :
CE
Place of Origin :
China
Measurement Range :
±300°/s
Zero-bias stability (10s, 1σ) :
≤3 °/h
Zero-bias repeatability (1σ) :
≤2 °/h
Angular random walk :
≤0.02 °/h
Scale Factor :
3600 LSB/°/s
Dimension :
φ24mm × 51.6mm
Power supply :
5+0.15V
weight :
≤30g
Description

Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg905 Replacement for UAV

  • Product Description

MFOG-091 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.


  • Composition

A) an optical path assembly;

B) Detection and control signal circuit board;

C) Optical fiber ring skeleton, shell and other structural parts

  • Product Parameter

Serial number

Project

Performance indicators

1

Range (°/s)

±300

2

Scale factor (LSB/o/s)

3600

3

Scale factor stability (RMS,%)

≤0.1

4

Zero-bias stability (10s, 1σ, °/H)

≤3

5

Zero-bias repeatability (1σ, °/H)

≤2

6

Angular random walk (°/H1/2)

≤0.02

7

Start-up Time (s)

≤2

8

Power supply (V)

5+0.15

9

Power Consumption (W)

≤1.5

10

MTBF (Calculated Assessment)

50000h @ 20℃


  • Outline Drawing

Fast Response Fiber Optic Gyroscope Sensor Fizoptika Vg091 Replacement for UAV
