Specifications
Brand Name :
FIREPOWER
Model Number :
HG4930C
Place of Origin :
China
MOQ :
1
Price :
7000$
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 week for sample
Packaging Details :
sponge+box
Measuring Range :
±300°/s
Zero-bias stability (10s, 1σ, °/h) :
3°/h
Angular random walk (°/H1/2) :
≤0.02°/h
Zero-Bias Repeatability :
≤2°/h
Scale factor stability (RMS,%) :
≤0.1%
Power supply (V) :
5+0.15V
Description

Product Description

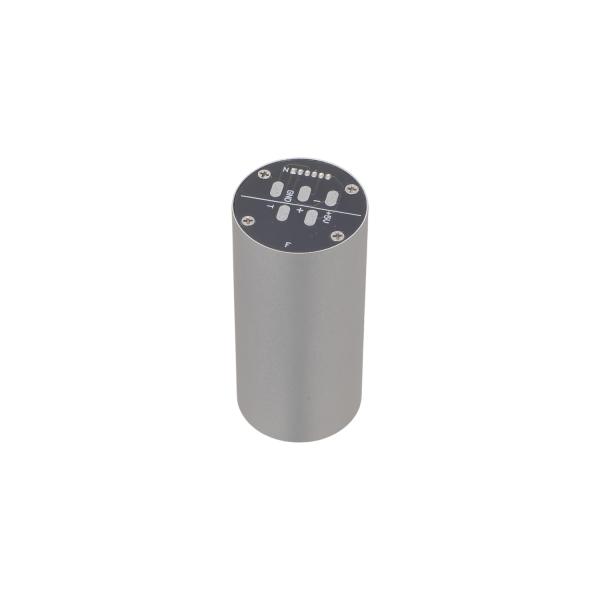

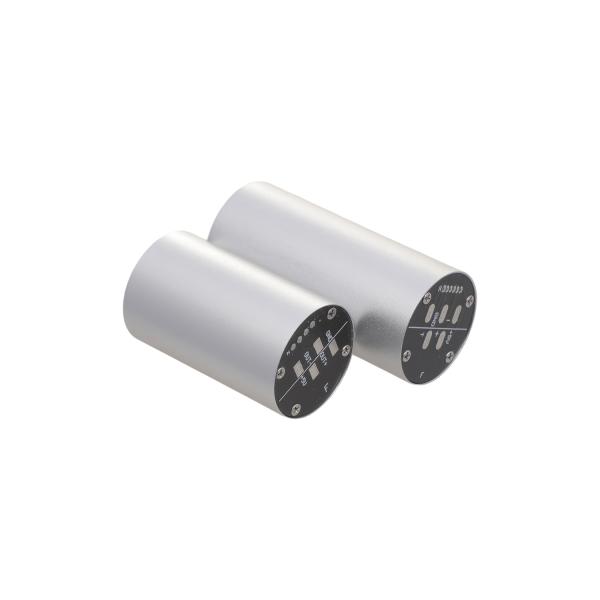

MFOG-091D micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.


Composition
(a) an optical path assembly;
(b) Detection and control signal circuit board;
(C)Optical fiber coil skeleton, shell and other structural parts;


Appearance and installation dimension

(a)Overall dimensions
Overall dimension (mm):φ24mm × 51.6mm.


Weight
.
Total weight of the product ≤30g


Technical Parameters

Serial number

Project

Performance indicators

1

Range (°/s)

±300

2

Scale factor (LSB/o/s)

3600

3

Scale factor stability (RMS,%)

≤0.1

4

Zero-bias stability (10s, 1σ, °/H)

≤3

5

Zero-bias repeatability (1σ, °/H)

≤2

6

Angular random walk (°/H1/2)

≤0.02

7

Start-up Time (s)

≤2

8

Power supply (V)

5+0.15

9

Power Consumption (W)

≤1.5

10

MTBF (Calculated Assessment)

50000h @ 20℃


Outline Drawing
