Specifications
Brand Name :
Firepower
Model Number :
MFOG-103
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs
Delivery Time :
1 week
Packaging Details :
Wooden Box
Measuring Range :
±350°/s
Bias stability :
≤1°/h
Bandwidth :
≥1000Hz
Random walk :
≤0.02°/√h
Power Consumption :
≤1W
Acceleration :
≥70g
Description

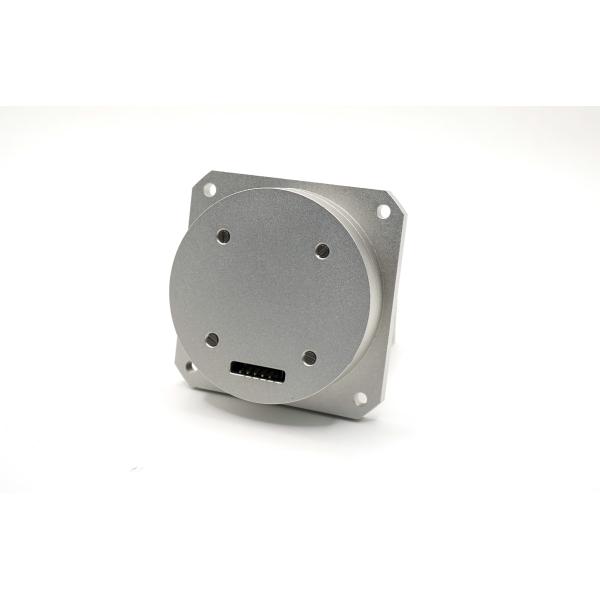

MFOG-103 is a compact, high-performance fiber optic gyroscope that integrates optical, mechanical, and electronic technologies.
Based on the Sagnac effect, it measures angular rate by detecting the phase difference between two counter-propagating light beams in a micro-nano fiber coil.

It features a solid-state design with no moving or wearing parts, ensuring high reliability, fast startup, low power consumption, and excellent stability.
The MFOG-103 is a direct replacement for the Fizoptika VG103, offering improved performance.

Composition:
A) Optical path assembly
B) Detection and control circuit board
C) Fiber coil frame and housing structure


Main Performance Parameters

Serial number

Project

Performance indicators

1

Range (°/s)

±350

2

Scale factor (mV/ o /s)

6±0.6

3

Zero-bias stability (10s, 1σ, o /H)

≤1

4

Zero-bias repeatability (1σ, o /H)

≤1

6

3dB Bandwidth (Hz)

≥1000

7

Random walk ( o /√ H)

≤0.02

8

Power supply (V)

5+0.25

9

Power Consumption (W)

≤1

10

Impact (g)

≥1500

11

Acceleration (g)

≥70

12

Service Life (years) (calculated assessment)

≥15

13

MTBF (Calculated Assessment)

≥100000

Weight

≤80g.

4.5 Operating temperature

-40℃~+70℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

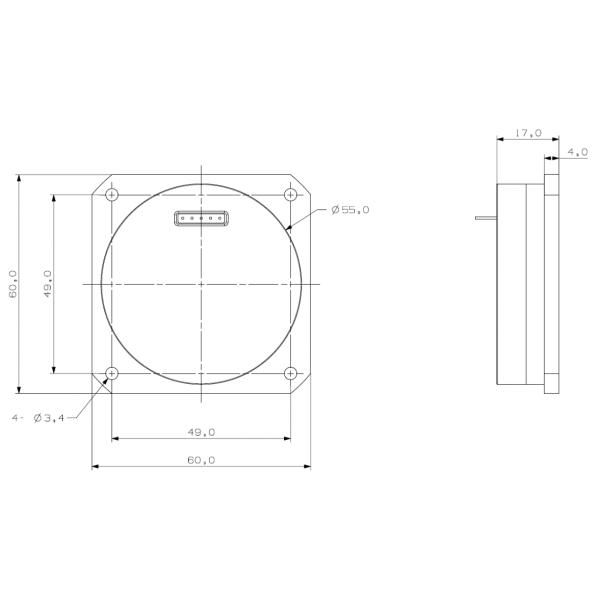

Outline DrawingMiniature Fiber Optic Gyro VG103 Angular Rate Sensor for Inertial Navigation System
