Specifications
Brand Name :
Firepower
Model Number :
F50 Freestanding optic fiber coil
Place of Origin :
China
MOQ :
1
Price :
700$
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 Week for sample
Packaging Details :
BOX+Sponge
Length :
260±5m
Optical Fiber :
80/135μm Optical Fiber
Layers :
36
Crosstalk :
≤-22dB
Insertion Loss :
≤0.2dB
Constant Temperature Bias Stability (10s Smoothing) :
≤0.3°/h
Description

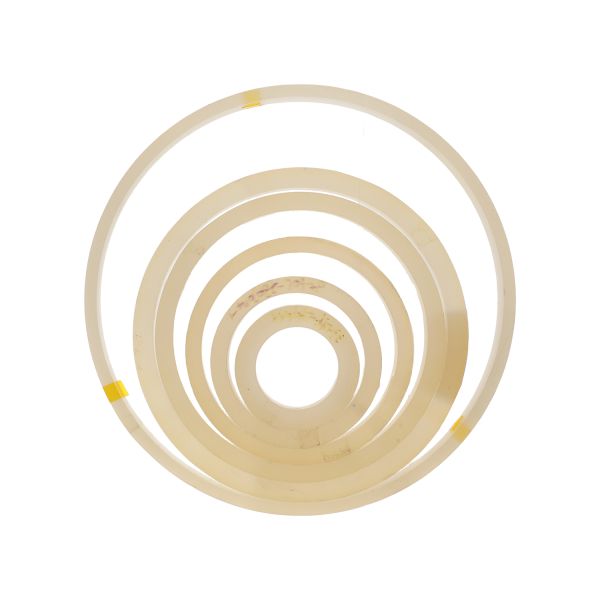

Closed-Loop Fog Standard Freestanding Optical Fiber 50mm Gyro Coil

Manufactured with precision winding and UV-cured adhesives, this φ50 coil ensures high reliability, low signal loss, and vibration resistance. A perfect choice for high-accuracy gyroscope systems used in industrial environments.

Application Areas

Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This optical fiber coil adopts a multi-pole symmetric winding method and uses 135μm thin diameter optical fibers with UV-cured adhesive. The ring exhibits excellent temperature and vibration performance, and can be mass-produced with good product consistency.

Technical Specifications
Feature Unit Index
Length M 260±5
Optical Fiber / 80/135μm Optical Fiber
Layers layer 36
Crosstalk dB ≤-22
Full Temperature Crosstalk dB ≤-20
Insertion Loss dB ≤0.2
Constant Temperature Bias Stability (10s Smoothing) °/h ≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) °/h ≤1.5
Temperature Range °C -45-80
Temperature Rate of Change °C/min 1
Geometric Dimensions / 29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)
Customization Options

The geometric dimensions, length, and performance of the optical fiber coil can be designed according to customer's application requirements.
