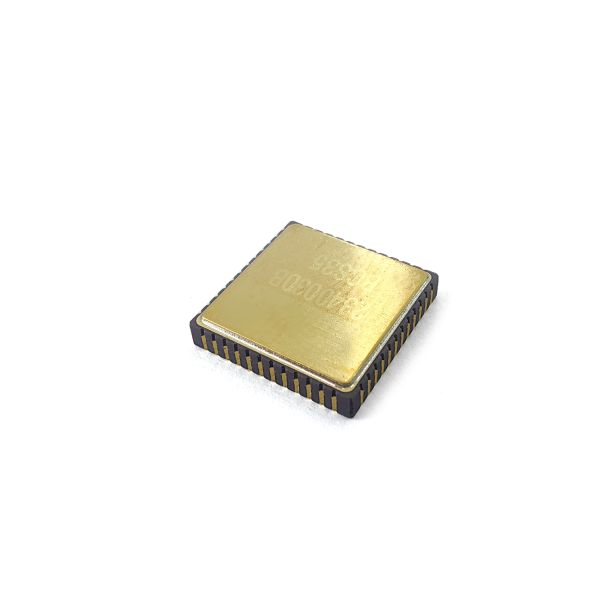

High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
Specifications
Brand Name :
Firepower
Model Number :
MGZ318HC-A1
Place of Origin :
china
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500/month
Delivery Time :
7 days for sample
Packaging Details :
sponge+box
Measuring range :
400
Bias stability :
<0.1°/h
Band Width :
200Hz
Angular random walk :
<0.05°/√h
Supply voltage :
5±0.25V
Current consumption :
45ma
Description
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
Product Overview

Our MEMS gyroscope chip provides accurate and stable motion sensing for next-generation navigation and control systems. With low noise and high reliability, it supports applications in UAVs, robotics, and autonomous vehicles. OEM customization ensures compatibility with your specific system requirements.

PCB Design Guidelines
  • Decoupling capacitors for pins VCP, VREF, VBUF, and VREG should be placed as close to the pins as possible
  • Minimize equivalent resistance of traces
  • Connect other ends of decoupling capacitors for VREF, VBUF, and VREG to nearest AVSS_LN and then to signal ground via magnetic bead
  • Place decoupling capacitors for VCC and VIO close to corresponding pins
  • VCC normal operation current: approximately 35 mA - requires wide PCB traces for voltage stability
  • Avoid routing under package for smooth assembly
  • Locate components to avoid stress concentration areas
  • Avoid areas with large heat dissipation elements, external mechanical contact, extrusion, pulling, and positioning screw warping zones
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
Technical Specifications
Performance Unit MGZ318HC-A1
Range deg/s 400
Band Width @3DB (customized) Hz 200
Output accuracy (digital SPI) bits 24
Output rate (ODR) (customized) Hz 12K
Delay (customized) ms <1.5
Bias stability deg/hr(1σ) <0.1
Bias stability (1σ 10s) deg/hr(1σ) <1
Bias error over temperature (1σ) deg/hr(1σ) <10
Scale factor at 25°C lsb/deg/s 16000
Scale factor repeatability (1σ) ppm(1σ) <20ppm
Scale factor vs temperature (1σ) ppm(1σ) <150ppm
Scale factor non-linearity (1σ) ppm <150ppm
Angular random walk (ARW) °/√h <0.05
Noise (Peak to Peak) deg/s <0.35
G Value sensitivity °/hr/g <1
Power-on time (valid data) s 750m
Sensor Resonant Frequency hz 10.5k-13.5K
Environmental Specifications
Impact (power on) 500g, 1ms
Impact resistance (power off) 10000g, 10ms
Vibration (power on) 18g rms (20Hz to 2kHz)
Working temperature -40°C to +85°C
Store temperature -55°C to +125°C
Supply voltage 5±0.25V
Current consumption 45mA
Installation Instructions
High Resolution Angular Rate MEMS Sensor Chip for Precision Control MGZ318HC-A1
