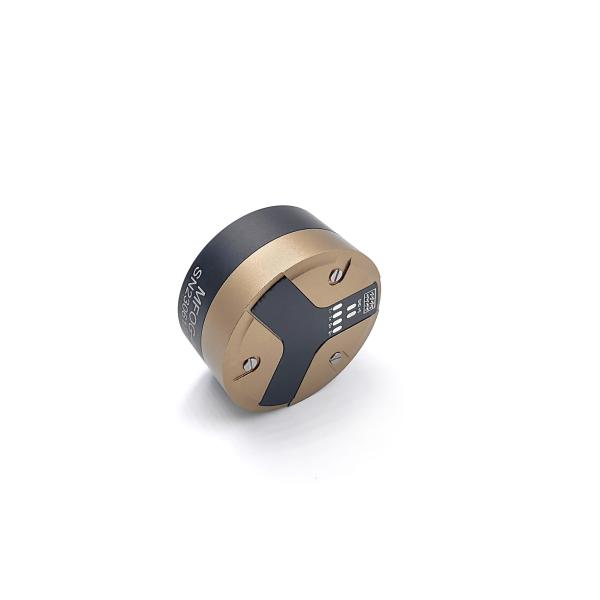

Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Specifications
Brand Name :
Firepower
Model Number :
MFOG-40
Place of Origin :
China
MOQ :
1
Price :
700$
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 Week for sample
Packaging Details :
BOX+Sponge
Maximum Angular Rate :
±300°/s
Bias Stability :
≤0.8°/h
Zero Bias Repatability :
≤0.8°/h
Random Walk Cefficient :
≤0.02°/√h
Supply Voltage :
+5V
Output Type :
Analog
Band Width :
≥300Hz
Dimension :
φ40X20mm
Description
Fiber Optic Gyroscope FOG High Precision Inertial Sensor for Electro-Optical Tracking System
Competitive Comparison: MFOG-40 vs Fizoptika VG1703
Parameter MFOG-40 Fizoptika VG1703
Measurement Range ± 300°/s ±130°/s / ±150°/s / ±300°/s
Zero Bias Stability ≤ 0.8°/h ≤1°/h
Angular Random Walk ≤ 0.02°/√h 0.008-0.02°/√h
Bias Repeatability ≤ 0.8°/h ≤1°/h
Scale Factor Nonlinearity ≤500 ppm ≤500 ppm
Bandwidth ≥300 Hz up to 1 kHz
Power Consumption ≤1.5W 0.25-0.5W
Size φ40*20 mm φ40*12-19 mm
Weight ≤40g 18-35g
Operating Temp -40 ~ +70°C -40 ~ +70°C
Vibration 20g up to 30g
Product Overview
The MFOG-40 is a compact fiber optic gyroscope offering ±300°/s measurement range and outstanding angular random walk performance (≤0.02°/√h). Built with micro-nano fiber technology, it ensures stable and accurate angular rate detection in harsh environments.
Technical Specifications
Parameter Specification
Measurement Range ±300°/s
Scale Factor 3600 LSB/(°/s)
Scale Factor Nonlinearity ≤500 ppm
Zero Bias Stability (10s, 1σ) ≤0.8°/h
Zero Bias Repeatability ≤0.8°/h
Angular Random Walk ≤0.02°/√h
Bias Stability (Full Temp) ≤1.5°/h
Bandwidth ≥300 Hz
Power Supply 5V ±0.15V
Power Consumption ≤1.5W
Applications
The MFOG-40 is widely used in:
  • Inertial Navigation Systems (INS)
  • UAV Flight Control & Stabilization
  • Robotics & Autonomous Systems
  • Antenna Stabilization Platforms
  • Industrial Motion Control
  • Marine & Land Navigation
  • Electro-Optical Tracking Systems
