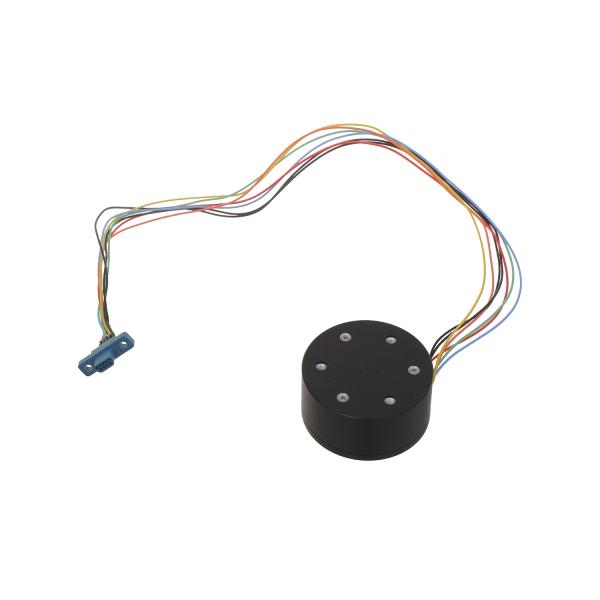

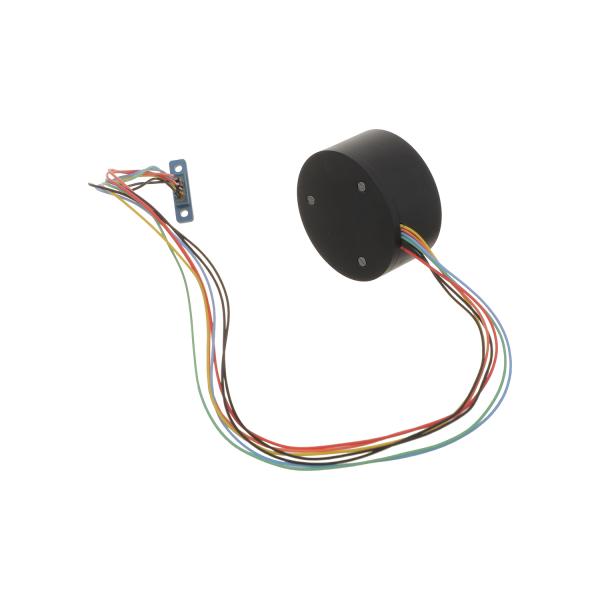

Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Specifications
Brand Name :
Firepower
Model Number :
MFOG-40
Place of Origin :
China
MOQ :
1
Price :
1350$
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 week
Packaging Details :
Sponge + Carton
Range :
±300(°/s
Zero-bias stability( (10s, 1σ) :
≤0.5°/h
Angular random walk :
≤0.02°/h
3dB Bandwidth :
≥300Hz
Zero-bias repeatability( (1σ) :
≤0.5°/h
Scale factor nonlinearity :
≤500ppm
Dimension :
φ40X20mm
Power Consumption :
≤1.5W
Description
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Product Overview

The MFOG-40 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor that seamlessly integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it utilizes cutting-edge micro-nano fiber devices to achieve high-precision measurement. The gyroscope detects angular velocity by monitoring the phase difference generated between two light beams propagating in opposite directions, processing this information through sophisticated electronics, and providing precise feedback for control or measurement purposes.

This product is designed with simplicity and reliability in mind. It features a compact and lightweight structure, with no moving parts or components subject to wear, ensuring long-term stability and durability. Its fast start-up capability, combined with its small size and low weight, makes it highly suitable for applications in attitude control, navigation, and motion measurement of various carriers, including aerial, marine, and ground platforms.

Key Features
  • Simple structure with no moving or wear parts
  • Fast startup and compact design (φ40*20mm)
  • Lightweight construction for versatile applications
  • Ideal for attitude control and carrier measurement systems
Technical Components
  • Optical path assembly
  • Detection and control signal circuit board
  • Fiber ring skeleton and structural housing
Power Requirements

The external power supply to the product has two circuits, and the requirements are shown below:

Parameter Specification
Voltage 4.85V~5.15V
Ripple 20mV
Electric current 0.2A
Electrical Interface

The MFOG-40 micro-nano fiber optic gyroscope is electrically connected to the outside by cables. See below for the definition of solder joints.

Node number Color Definition
1 Tangerine RS422 R-
2 Blue RS422 R+
3 Green RS422 T+
4 Yellow RS422 T-
5 Black GND
6 Black GND
7 Red 5V
Performance Parameters
Parameter Specification
Range (°/s) ±300
Scale Factor (LSB/°/s) 3600
Scale factor nonlinearity (ppm) ≤500
Zero-bias stability (10s, 1σ, °/H) ≤0.5
Zero-bias repeatability (1σ, °/H) ≤0.5
Angular random walk (°/H1/2) ≤0.02
Zero-bias stability at full temperature (°/H) ≤1.5
3dB Bandwidth (Hz) ≥300
Power supply (V) 5±0.15
Power Consumption (W) ≤1.5
Product Diagrams
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Fizoptika VG1703 Fiber Optic Gyroscope technical diagram
Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range 0.5°/h Stability
Fizoptika VG1703 Fiber Optic Gyroscope dimensional drawing
