Specifications
Brand Name :
FIREPOWER
Model Number :
MFOG-091D
Place of Origin :
China
MOQ :
1
Price :
900$
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 week for sample
Packaging Details :
sponge+box
Measuring Range :
±300°/s
Zero-bias stability (10s, 1σ, °/h) :
3°/h
Angular random walk (°/H1/2) :
≤0.02°/h
Zero-Bias Repeatability :
≤2°/h
Scale factor stability (RMS,%) :
≤0.1%
Power supply (V) :
5+0.15V
Description

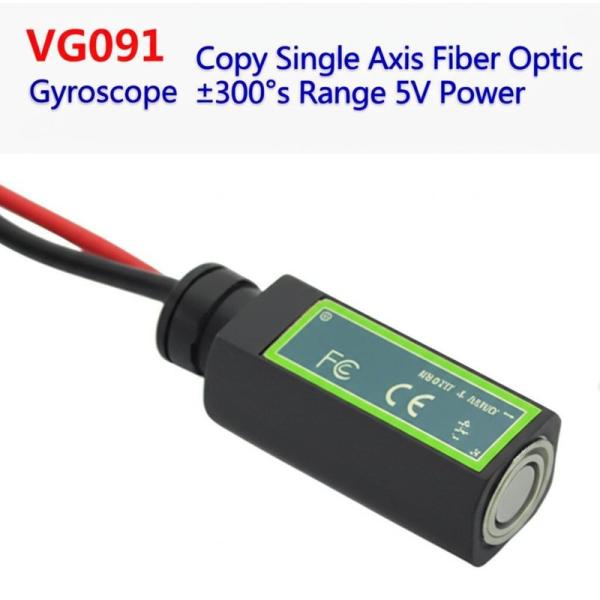

VG091 Copy Single Axis Fiber Optic Gyroscope ±300°/s Range 5V Power
Single Axis Fiber Optic Gyroscope ±300°/s Range 5V Power
Key Specifications
Attribute Value
Measuring Range ±300°/s
Zero-bias stability (10s, 1σ, °/h) 3°/h
Angular random walk (°/H1/2) ≤0.02°/h
Zero-Bias Repeatability ≤2°/h
Scale factor stability (RMS,%) ≤0.1%
Power supply (V) 5+0.15V
Product Overview

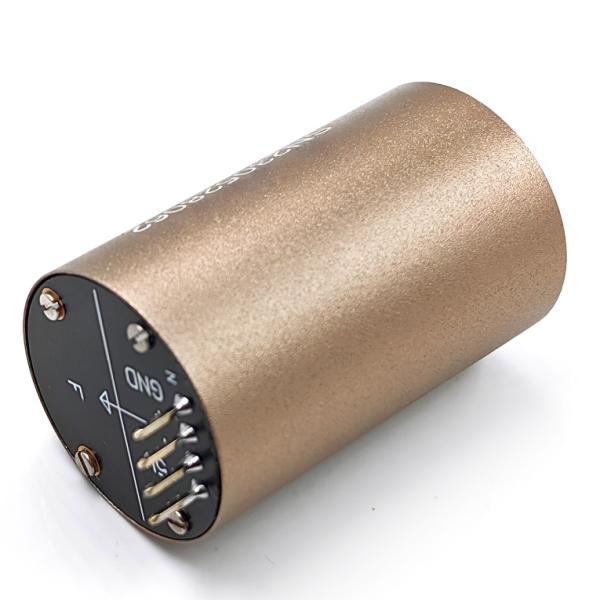

The MFOG-091D micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Utilizing the Sagnac effect, it precisely measures phase differences between counter-propagating light beams to deliver accurate rate sensing.

Key Features
  • Compact design with no moving parts for enhanced reliability
  • Rapid startup time (≤2 seconds)
  • Lightweight construction (≤30g total weight)
  • Low power consumption (≤1.5W)
  • High MTBF (50,000 hours @ 20℃)
Product Composition
  • Optical path assembly
  • Detection and control signal circuit board
  • Fiber coil skeleton and structural housing
Physical Specifications

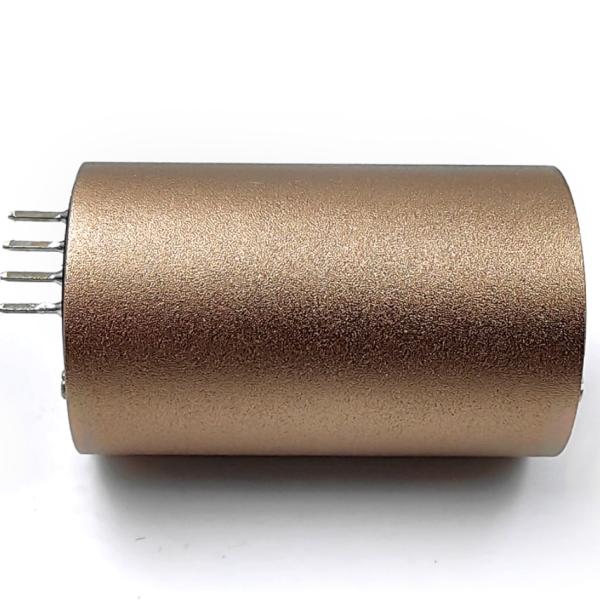

Dimensions: φ24mm × 51.6mm

Weight: ≤30g

Technical Parameters
Parameter Specification
Range (°/s) ±300
Scale factor (LSB/o/s) 3600
Scale factor stability (RMS,%) ≤0.1
Zero-bias stability (10s, 1σ, °/H) ≤3
Zero-bias repeatability (1σ, °/H) ≤2
Angular random walk (°/H1/2) ≤0.02
Start-up Time (s) ≤2
Power supply (V) 5+0.15
Power Consumption (W) ≤1.5
MTBF (Calculated Assessment) 50000h @ 20℃
Outline Drawing
