Specifications
Brand Name :
Firepower
Model Number :
MFOG-1703
Place of Origin :
CHINA
MOQ :
1
Price :
700USD
Payment Terms :
L/C,T/T
Supply Ability :
500/month
Delivery Time :
1 week for sample
Packaging Details :
sponge/box
Bias stability :
1°/h
Bias Repeatability :
1°/h
Dimension :
φ40 × 20 mm
Weight :
≤ 40g
Power Supply :
5+0.25 V
Random Walk Coefficient :
≤0.02°/Vh
Description

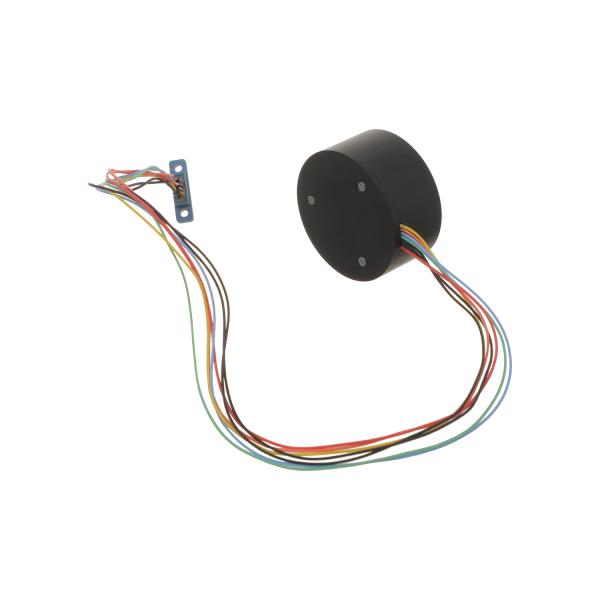

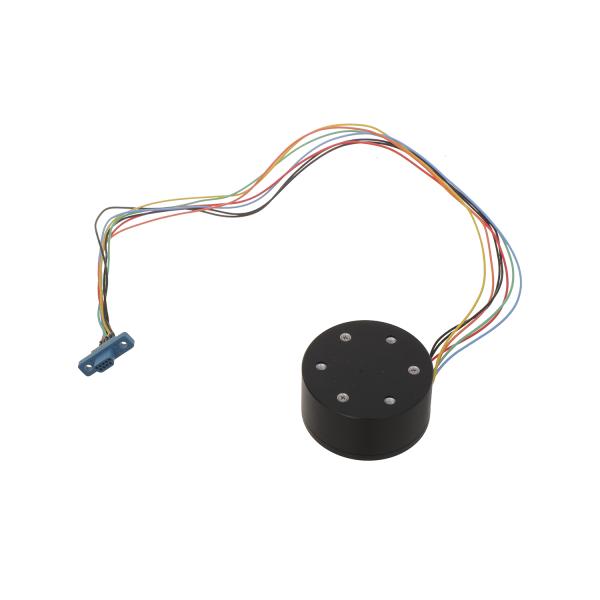

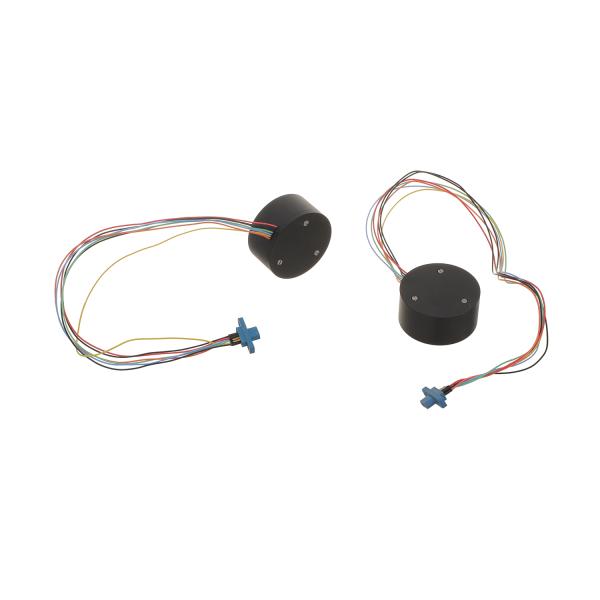

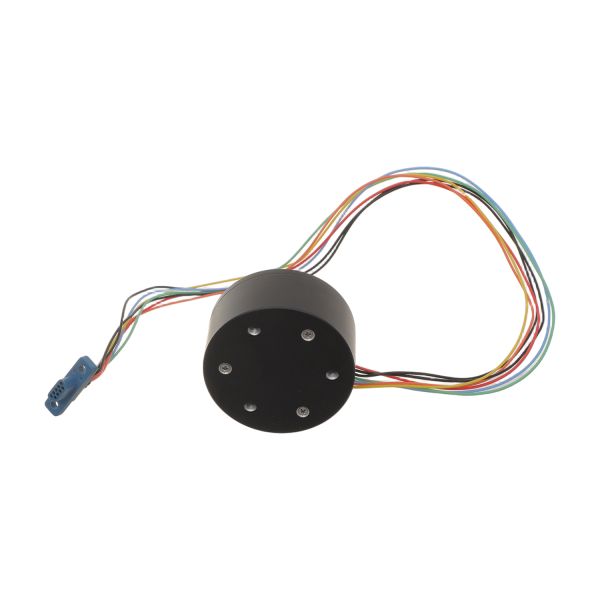

MFOG-1703 is a solid-state micro-nano fiber optic gyroscope that outputs precise angular rate data through internal detection, processing, and closed-loop control of optical phase differences. The system consists of an optical path module, detection and control electronics, and a rugged mechanical structure.

Its standardized interface and form factor allow seamless replacement of Fizoptika VG1703


Main Performance Parameters

Serial

number

Project

Performance

indicators

1

Range (°/s)

±150

2

Scale factor (mV/ o /s)

12±1.2

3

Zero-bias stability (10s, 1σ, °/h)

≤1

4

Zero-bias repeatability (1σ, °/h)

≤1

5

Angular random walk (°/h 1/2 )

≤0.02

6

Zero-bias temperature sensitivity (uV/° C)

≤1

7

Scale Factor Temperature Sensitivity

(ppm/° C)

≤300

8

3dB Bandwidth (Hz)

≥450

9

Impact (g)

1200, 1ms, half

sine

10

Power supply (V)

5+0.25

11

Power Consumption (W)

≤1

12

Dimension (mm)

φ40 × 20
