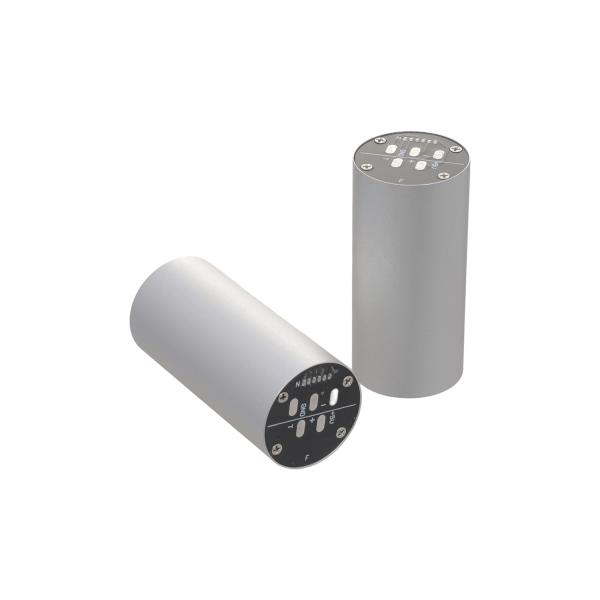

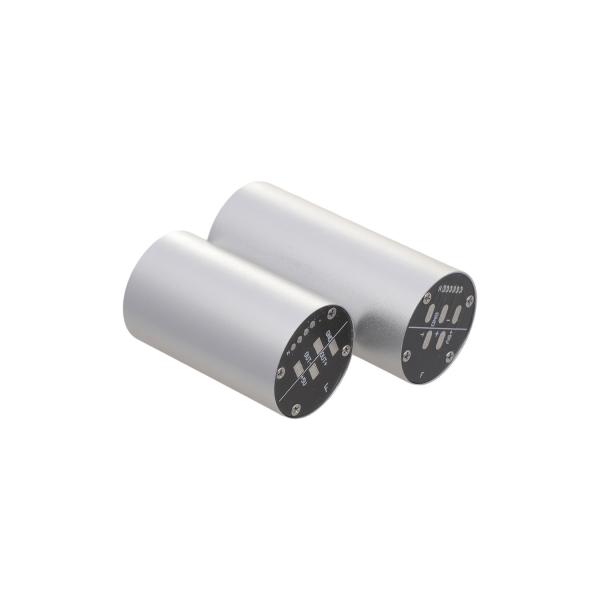

Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Compact Fiber Optic Gyroscope with ±500°/s Angular Rate and ≤1.5°/h Bias Stability for UAV Navigation
Specifications
Bias Stability :
1.5deg/h
Brand Name :
Firepower
Maximum Angular Rate :
500deg/s
Band Width :
300Hz
Operating Temperature :
-40C to +65C
Supply Voltage :
+5V
Zero Bias Repeatability :
1.5deg/h
Random Walk Coefficient :
0.04deg/root-h
Vibration Resistance :
20g, 20-2000Hz
Dimensions :
24x39mm
Weight :
30g
Model Number :
MFOG-24
Place of Origin :
China
Certification :
CE, RoHS
Description
Compact Fiber Optic Gyroscope MFOG-24 ±500°/s Angular Rate ≤1.5°/h Bias Stability for UAV Drone Flight Control Navigation
Product Overview

The MFOG-24 is a compact fiber optic gyroscope specifically engineered for UAV and drone flight control navigation. Based on the Sagnac effect, it provides accurate angular rate measurement with ±500°/s range and ≤2°/h bias stability. Its ultra-lightweight design (φ24*39mm, ≤30g) makes it ideal for multi-rotor drones, fixed-wing UAVs, and VTOL aircraft requiring precise attitude stabilization.

Key Features for UAV Applications
  • Angular rate range: ±500°/s for agile drone maneuvers
  • Zero-bias stability ≤2°/h ensures smooth hovering and waypoint tracking
  • Angular random walk ≤0.04°/√h for clean navigation data fusion
  • 20g vibration resistance handles rotor-induced high-frequency vibration
  • No moving parts eliminates mechanical wear in continuous UAV operation
  • Low power consumption ≤1.5W extends drone battery life
  • Operating temperature -40°C~+65°C suitable for high-altitude UAV missions
UAV Navigation Application Scenarios
  • Multi-Rotor Drone Stabilization: Provides real-time angular rate feedback for gimbal and flight controller stabilization in aerial photography and surveying drones.
  • Fixed-Wing UAV Waypoint Navigation: Delivers precise heading and turn-rate data for autonomous waypoint-following in mapping and agricultural UAVs.
  • VTOL Aircraft Transition Control: Ensures stable attitude control during vertical takeoff, transition, and forward flight phases of hybrid VTOL platforms.
  • Drone Swarm Coordination: Reliable heading reference for coordinated multi-drone operations in logistics and defense applications.
Technical Specifications
Parameter MFOG-24
Measurement Range ±500°/s
Bias Stability (10s, 1σ) ≤1.5°/h
Zero-Bias Repeatability ≤1.5°/h
Angular Random Walk ≤0.04°/√h
Bandwidth (3dB) ≥300Hz
Power Supply 5V ±0.15
Power Consumption ≤1.5W
Operating Temperature -40°C~+65°C
Vibration Resistance 20g, 20-2000Hz
Dimensions φ24*39mm
Weight ≤30g
Moving Parts None
