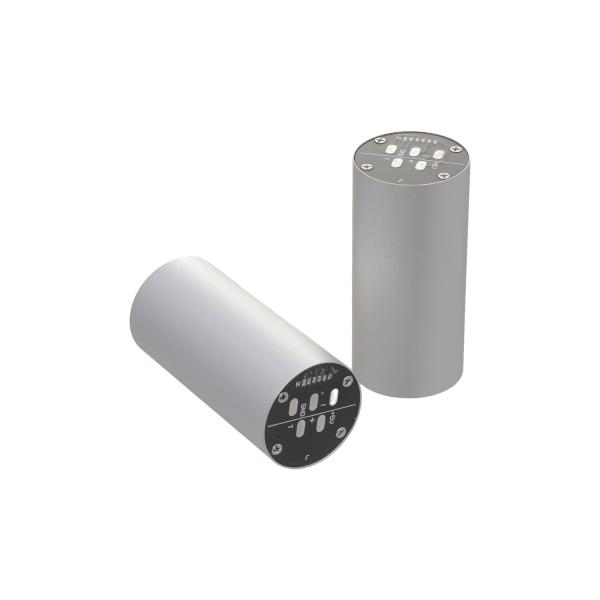

Digital RS422 Output Fiber Optic Gyro with 0.02 deg/h Bias Stability and 200Hz Refresh Rate Angular Rate Sensor
Digital RS422 Output Fiber Optic Gyro with 0.02 deg/h Bias Stability and 200Hz Refresh Rate Angular Rate Sensor
Digital RS422 Output Fiber Optic Gyro with 0.02 deg/h Bias Stability and 200Hz Refresh Rate Angular Rate Sensor
Digital RS422 Output Fiber Optic Gyro with 0.02 deg/h Bias Stability and 200Hz Refresh Rate Angular Rate Sensor
Digital RS422 Output Fiber Optic Gyro with 0.02 deg/h Bias Stability and 200Hz Refresh Rate Angular Rate Sensor
Digital RS422 Output Fiber Optic Gyro with 0.02 deg/h Bias Stability and 200Hz Refresh Rate Angular Rate Sensor
Specifications
Scale Factor Nonlinearity :
≤ 50 ppm
Data Output Rate :
200 Hz
Payment Terms :
T/T, L/C, PayPal, Western Union
Number of Axes :
1 Axis
Certification :
ISO 9001:2015, CE, RoHS
Bias Repeatability :
0.02 deg/h (1 sigma)
MOQ :
1 Piece
Delivery Time :
5 working days for stock, 15-25 days for production
Packaging Details :
WNRLN branded protective case with shock-proof foam insert, export-grade corrugated carton
Bandwidth :
≥ 150 Hz
Measurement Range :
± 300 deg/s
Interface :
RS422 (standard), RS232 (optional)
Protocol :
Binary or ASCII selectable
Gyro Type :
Digital Closed Loop Fiber Optic Gyroscope
Weight :
≤ 320g
Dimensions :
Φ48mm x 33mm
Brand Name :
WNRLN
Price :
USD 1000-1500 / Piece
Data Format :
Angular rate, temperature, status, diagnostics
Model Number :
FOG-DG1-10
MTBF :
≥ 60,000 hours
BIT Coverage :
≥ 95%
Place of Origin :
Guangdong, China
Power Supply :
±5V DC or 5V DC single
Storage Temperature :
-55°C to +85°C
Bias Stability :
0.02 deg/h (1 sigma)
Operating Temperature :
-40°C to +70°C
Random Walk :
0.002 deg/√h
Supply Ability :
500 Pieces per Month
Power Consumption :
≤ 3.5W
Description

Digital RS422 Output Fiber Optic Gyro FOG-DG1-10

The FOG-DG1-10 is a fully digital fiber optic gyroscope featuring RS422 serial output with 200 Hz data refresh rate and 0.02 deg/h bias stability. Purpose-built for modern digital avionics architectures, this gyro eliminates the need for external ADC conversion while providing comprehensive onboard diagnostics.

Key Features

  • Native Digital RS422 Output: Direct serial data stream with selectable binary or ASCII protocol formats for plug-and-play digital system integration.
  • 200 Hz Data Refresh: Consistent 200 Hz output rate with embedded timestamp for precise time-critical control applications.
  • Comprehensive Telemetry: Each data packet includes angular rate, internal temperature, power supply voltage, and BIT status flags.
  • Built-In Test (BIT): ≥ 95% fault coverage with continuous background monitoring of light source, photodetector, coil integrity, and electronics.
  • Flexible Power Input: Accepts ±5V DC dual supply or 5V DC single supply for streamlined power architecture.
  • Low Power Consumption: ≤ 3.5W total, enabling integration into thermally constrained platforms.

Technical Specifications

ParameterSpecification
Number of Axes1 Axis
Bias Stability0.02 deg/h (1 sigma)
Bias Repeatability0.02 deg/h (1 sigma)
Scale Factor Nonlinearity≤ 50 ppm
Measurement Range± 300 deg/s
Random Walk0.002 deg/√h
Bandwidth≥ 150 Hz
Data Output Rate200 Hz
Operating Temperature-40°C to +70°C
InterfaceRS422 (standard), RS232 (optional)
ProtocolBinary or ASCII selectable
Power Supply±5V DC or 5V DC
Power Consumption≤ 3.5W
Weight≤ 320g
DimensionsΦ48mm x 33mm

Applications

  • Digital Fly-by-Wire Flight Control Systems
  • Autopilot Rate Feedback Loops
  • Remotely Operated Vehicle (ROV) Control
  • Rocket Launch Vehicle Attitude Control
  • Test and Measurement Turntable Feedback
  • Flight Simulator Motion Platform Sensing

Evaluation kits including an RS422-to-USB converter and software GUI are available. Contact us to request a demo unit.
