Specifications
Bias Repeatability :
0.8 deg/h
Acceleration :
>=70g
Certification :
ISO 9001:2015, CE, RoHS
Brand Name :
FIREPOWER
Measurement Range :
240 deg/s
Zero-bias stability :
0.8 deg/h
Size :
82mm x 82mm x 19.5mm
Model Number :
MFOG-910
Scale factor nonlinearity :
<=1000 ppm
Place of Origin :
China
Description
High Bandwidth Fiber Optic Gyroscope 0.8 deg/h for Precision Motion Measurement Equipment

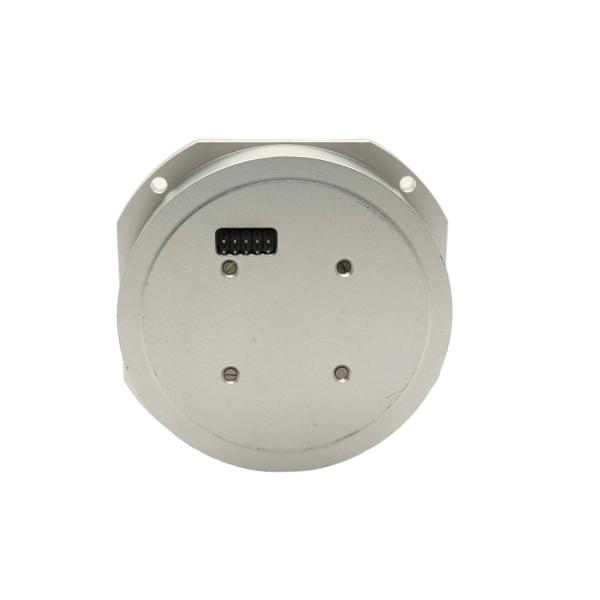

MFOG-910 High Bandwidth Fiber Optic Gyroscope

The MFOG-910 is a high-bandwidth fiber optic gyroscope engineered for precision motion measurement and dynamic testing applications. Its 1000Hz 3dB bandwidth captures rapid angular movements with exceptional fidelity, making it ideal for rate table calibration and motion analysis systems.

Utilizing advanced Sagnac effect technology with micro-nano optical devices, the MFOG-910 achieves 0.8 deg/h bias stability and 0.02 deg/rt-h angular random walk. The solid-state construction ensures repeatable measurements over extended testing campaigns without mechanical degradation.

Technical Specifications
Parameter Specification
Range (deg/s) +/-240
Scale Factor (mV/deg/s) 47+/-5
Scale Factor Nonlinearity (ppm) <=1000
Zero-Bias Stability (10s, 1 sigma, deg/H) <=0.8
Zero-Bias Repeatability (1 sigma, deg/H) <=0.8
3dB Bandwidth (Hz) >=1000
Random Walk (deg/rt-H) <=0.02
Power Supply (V) 5+/-0.25+12
Power Consumption (W) <=1.5
Impact Resistance (g) >=1500
Vibration Resistance (g) >=70
Service Life (years) >=15
MTBF (Calculated) >=100,000 hours
Key Features
  • 1000Hz bandwidth captures high-frequency angular dynamics
  • 0.8 deg/h bias stability for repeatable precision measurements
  • 0.02 deg/rt-h ARW for low-noise motion analysis
  • Solid-state reliability for continuous test laboratory operation
  • Compact 82mmx82mmx19.5mm for test fixture integration
  • 1500g impact resistance ensures durability in test environments
Applications
  • Rate table calibration
  • Inertial sensor testing
  • Vibration analysis systems
  • Dynamic motion measurement
  • Automotive crash test instrumentation
  • Industrial robot validation
