MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
MEMS Gyroscope Chip MGZ330HC-A1 Ultra Low Noise Angular Rate Sensor 0.02deg/h Bias 100deg/s SPI Output
Specifications
Output Accuracy :
24bit SPI
Measuring Range :
100°/s
Supply Ability :
500/month
Brand Name :
Firepower
Angular Random Walk :
<0.005°/√h
Model Number :
MGZ330HC-A1
Delivery Time :
7 days for sample
Bias Stability (Allan) :
<0.02°/h
Price :
negotiable
Noise (Peak to Peak) :
<0.015°/s
Packaging Details :
sponge+box
Scale Factor :
80000 lsb/deg/s
Output Rate (ODR) :
12K Hz
Place of Origin :
china
Bias Stability (1s 10s) :
<0.1°/h
MOQ :
1
Bandwidth (-3dB) :
50Hz
Payment Terms :
T/T
Operating Temperature :
-40°C ~ +85°C
Description

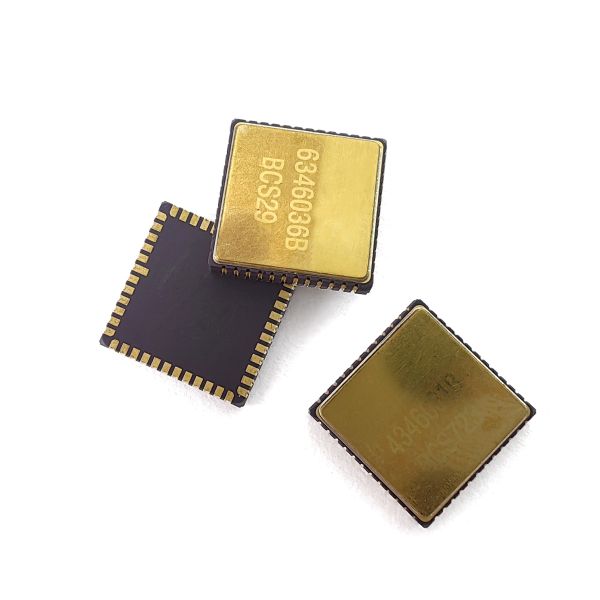

MGZ330HC-A1 MEMS Gyroscope Chip Ultra Low Noise Angular Rate Sensor
The MGZ330HC-A1 is a high-performance MEMS gyroscope chip delivering accurate and stable angular rate measurement for navigation and control systems. Featuring low noise, low drift, and excellent environmental adaptability, it is suitable for UAV flight control, inertial navigation, and industrial automation applications.
Ultra-low noise MEMS gyroscope chip with <0.02°/h bias stability and <0.005°/√h ARW. Designed for precision measurement, optical stabilization, georeferencing, and scientific instrumentation requiring the lowest possible noise floor.
Key Specifications
Parameter Unit MGZ330HC-A1
Measuring Range deg/s 100°/s
Bandwidth (-3dB, customizable) Hz 50Hz
Output Accuracy (Digital SPI) bits 24
Output Rate ODR (customizable) Hz 12K
Delay (customizable) ms <6ms
Bias Stability (Allan variance) deg/h (1-sigma) <0.02°/h
Bias Stability (1-sigma, 10s) deg/h (1-sigma) <0.1°/h
Angular Random Walk (ARW) deg/sqrt-h <0.005°/√h
Scale Factor at 25°C lsb/deg/s 80000 lsb/deg/s
Scale Factor Repeatability (1-sigma) ppm (1-sigma) <100ppm
Scale Factor vs Temperature (1-sigma) ppm (1-sigma) <300ppm
Scale Factor Nonlinearity (1-sigma) ppm <300ppm
Noise (Peak to Peak) deg/s <0.015°/s
G-Value Sensitivity deg/h/g <3
Power-On Time (Valid Data) s 750ms
Sensor Resonant Frequency Hz 10.5k-13.5K
Impact (Powered On) 500g, 1ms
Impact Resistance (Powered Off) 10000g, 10ms
Vibration (Powered On) 18g RMS (20Hz-2kHz)
Operating Temperature -40°C ~ +85°C
Storage Temperature -55°C ~ +125°C
Supply Voltage 5 ± 0.25V
Current Consumption 45mA
Applications
  • UAV drone flight control and attitude stabilization
  • Inertial navigation systems and AHRS
  • Industrial automation and robotics motion sensing
  • Platform stabilization and antenna tracking
  • Precision surveying and georeferencing
  • Automotive vehicle dynamics and ADAS testing
Packing & Shipping
The MGZ330HC-A1 MEMS gyroscope chip is packaged in anti-static ESD-safe packaging within an export-grade carton box. Firepower brand, made in China. Minimum order quantity 1 piece, sample delivery within 7 days. Bulk supply capacity 500 pieces per month. Payment terms T/T. For price inquiry or to request samples, please contact us.
