Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
Specifications
Brand Name :
Firepower
Model Number :
MFOG1703
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T,L/C
Supply Ability :
10 pcs/5 months
Delivery Time :
5 months
Packaging Details :
wooden box
Bias Stability :
≤1°/h
Measuring Range :
±150°/s
Dimension :
φ40 × 20mm
Start Time :
3s
Output Drive Voltage :
≥5+0.25V
Connector :
J30J-15TJL/(Customizable)
Description

Main Performance Parameters

Serial

number

Project

Performance

indicators

1

Range (°/s)

±150

2

Scale factor (mV/ o /s)

12±1.2

3

Zero-bias stability (10s, 1σ, °/h)

≤1

4

Zero-bias repeatability (1σ, °/h)

≤1

5

Angular random walk (°/h 1/2 )

≤0.02

6

Zero-bias temperature sensitivity (uV/° C)

≤1

7

Scale Factor Temperature Sensitivity

(ppm/° C)

≤300

8

3dB Bandwidth (Hz)

≥450

9

Impact (g)

1200, 1ms, half

sine

10

Power supply (V)

5+0.25

11

Power Consumption (W)

≤1

12

Dimension (mm)

φ40 × 20

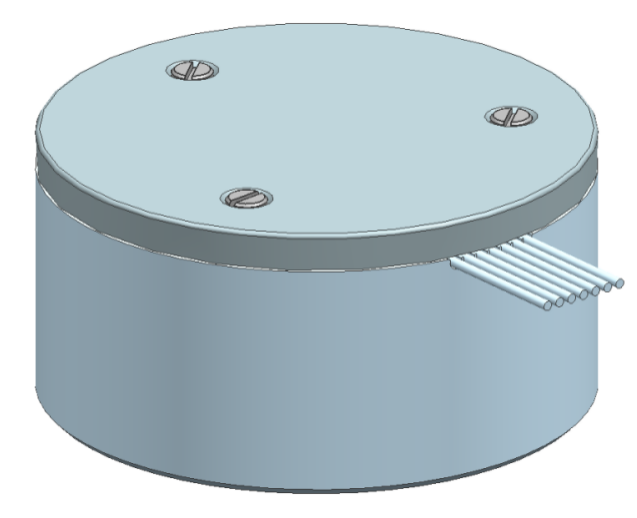

MFOG-1703 is a high-precision micro-nano fiber optic gyroscope based on the Sagnac effect. It integrates optical, mechanical, and electronic systems to provide accurate angular rate measurement.
Featuring a solid-state design with no moving or wearing parts, it ensures high reliability, fast startup, and excellent resistance to vibration and temperature changes.
Compact, lightweight, and low-power, the MFOG-1703 is ideal for UAVs, vehicles, ships, missiles, and aerospace applications requiring precise attitude control and navigation.
It serves as a direct replacement for the Russian Fizoptika VG1703, offering improved stability and system compatibility.


Weight

≤40g

4.5 Operating temperature

-40℃~+70℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.


Outline drawingFizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
