Single Axis Fiber Optic Gyroscope with Compact Size for Robotics
Single Axis Fiber Optic Gyroscope with Compact Size for Robotics
Single Axis Fiber Optic Gyroscope with Compact Size for Robotics
Single Axis Fiber Optic Gyroscope with Compact Size for Robotics
Single Axis Fiber Optic Gyroscope with Compact Size for Robotics
Single Axis Fiber Optic Gyroscope with Compact Size for Robotics
Single Axis Fiber Optic Gyroscope with Compact Size for Robotics
Single Axis Fiber Optic Gyroscope with Compact Size for Robotics
Specifications
Brand Name :
Firepower
Model Number :
MFOG-1703
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T,L/C
Supply Ability :
1000/month
Delivery Time :
10 days for sample
Packaging Details :
carton with sponge
Zero Bias Repeatability :
≤ 1º/h
Type :
Fiber Optic Vertical Gyro
Accuracy :
≤1°/h
Angular Random Walk :
≤0.02°/h
Measuring Range :
±150°/s
Power Consumption :
≤1.5W
Random Vibration :
6.06g，20~2000Hz
Output Drive Voltage :
≥5Vpp
Power :
≤1W
Description

Serial

number

Project

Performance

indicators

1

Range (°/s)

±150

2

Scale factor (mV/ o /s)

12±1.2

3

Zero-bias stability (10s, 1σ, °/h)

≤1

4

Zero-bias repeatability (1σ, °/h)

≤1

5

Angular random walk (°/h 1/2 )

≤0.02

6

Zero-bias temperature sensitivity (uV/° C)

≤1

7

Scale Factor Temperature Sensitivity

(ppm/° C)

≤300

8

3dB Bandwidth (Hz)

≥450

9

Impact (g)

1200, 1ms, half

sine

10

Power supply (V)

5+0.25

11

Power Consumption (W)

≤1

12

Dimension (mm)

φ40 × 20

Fizoptika1703 Micro-Nano Fiber Optic Gyroscope – Reliable angular rate sensor for carrier tasks. Integrates optics, mechanics and electronics, uses Sagnac effect to process counter-propagating light phase differences. Composed of: optical path assembly, detection & control signal circuit board, structural parts. Benefits: simple design, no wear/moving parts, fast startup, small size, light weight. Great for attitude control & measurement


Weight

≤40g

4.5 Operating temperature

-40℃~+70℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

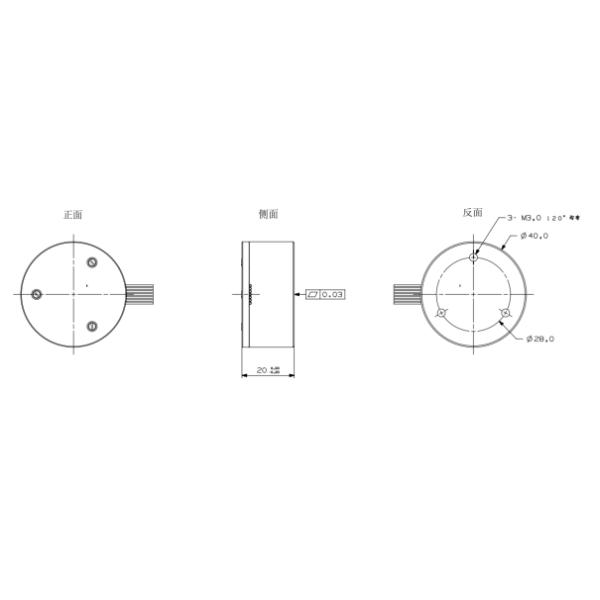

Mechanical and electrical interfaceSingle Axis Fiber Optic Gyroscope with Compact Size for Robotics
