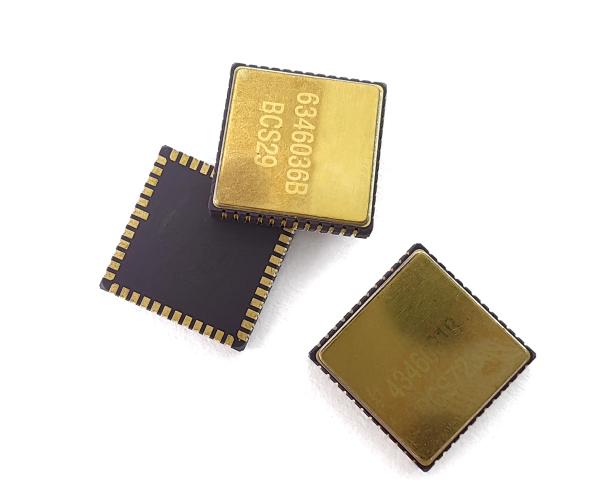

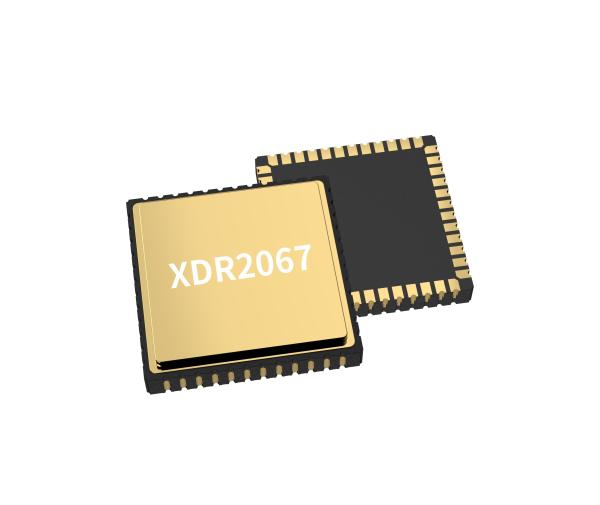

100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
Specifications
Brand Name :
Firepower
Model Number :
MGC500-P2
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
500/month
Delivery Time :
7 days for sample
Packaging Details :
sponge+box
Range :
500dps
Bias @ 25℃ :
45dph
Bias Stability (10 s smoothing) :
2.0dph
Angle Random Walk :
0.08°/√h
Noise @ 10Hz :
0.0012mdps/√H
Bias Repeatability (Weekly Repeatability :
2dph
Scale Factor Repeatability (Weekly Repeatability) :
30ppm
Bandwidth :
100HZ
Description
100hz PCB High Precise Gyro 24 Bits Output Accuracy Digital Spi
Product Specifications
Attribute Value
Range 500dps
Bias @ 25℃ 45dph
Bias Stability (10 s smoothing) 2.0dph
Angle Random Walk 0.08°/√h
Noise @ 10Hz 0.0012mdps/√H
Bias Repeatability (Weekly Repeatability) 2dph
Scale Factor Repeatability (Weekly Repeatability) 30ppm
Bandwidth 100HZ
Technical Parameters

GYRO PCB LOW COST GYRO CHIPS HIGH PRECISE GYRO BOARD SUPPLIER

Parameter MGC150 - P05 MGC500 - P1 MGC500 - P2 MGC500 - P3 Unit
Range ±150 ±500 ±500 ±500 dps
Bias @ 25°C 15 45 45 45 dph
Noise @ 10Hz 0.001 0.0012 0.0012 0.0012 mdps/√Hz
Bias Stability (10 s smoothing) 0.5 1.0 2.0 3.0 dph
Angle Random Walk 0.06 0.08 0.08 0.08 °/√h
Bias Repeatability (Weekly) 2 2 2 2 dph
Scale Factor 38550 11185 11185 11185 LSB/dps
Scale Factor Repeatability (Weekly) 30 30 30 30 ppm
Non - linearity @ Full Scale (FS) 100 100 100 100 ppm
Non - linearity @ 200 dps 50 50 50 50 ppm
Bandwidth 30 ≥100 ≥100 ≥100 Hz
G - Sensitivity 2 3 3 3 dph/g
Vibration Rectification Coefficient @ 6.06 grms 0.4 0.3 0.3 0.3 dph/g²
Vibration Reliability (Power - on) 4000g, 0.5ms 4000g, 0.5ms 4000g, 0.5ms 4000g, 0.5ms -
