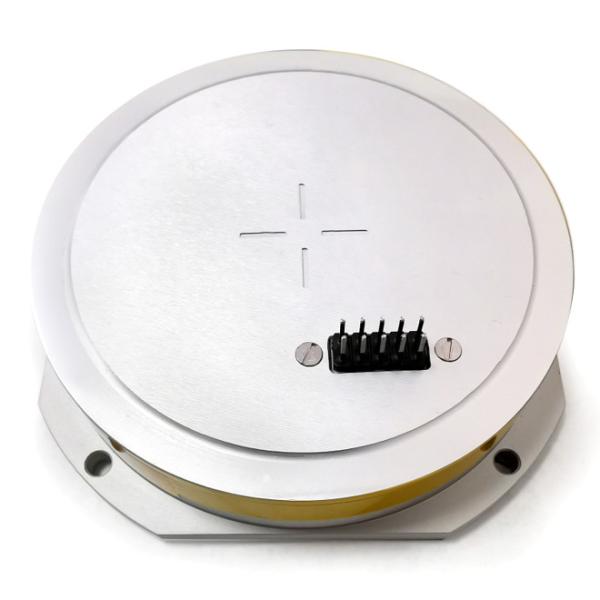

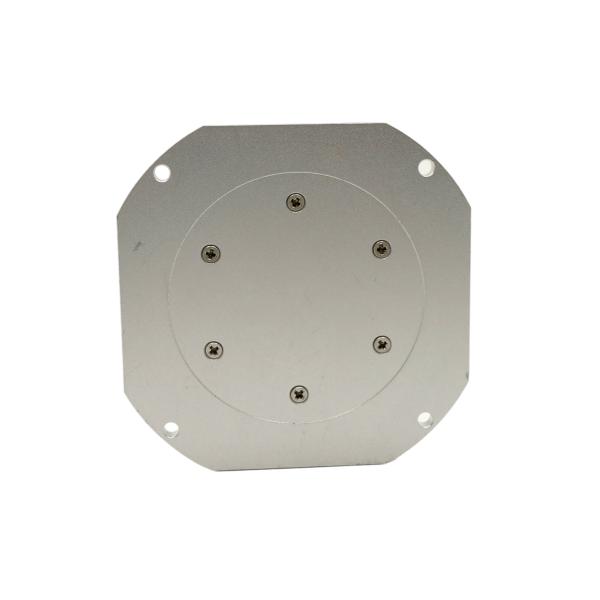

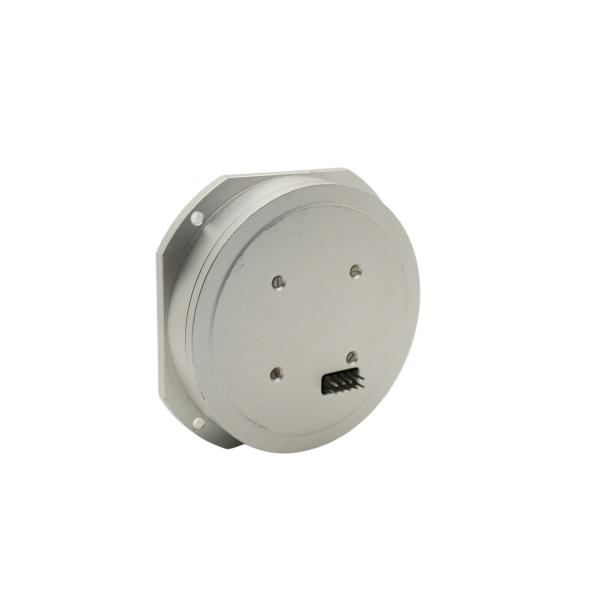

290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
Specifications
Brand Name :
Firepower
Model Number :
MFOG-910
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
800USD
Packaging Details :
1KG
Delivery Time :
1 weeks for sample
Payment Terms :
100% in advance
Supply Ability :
100 pcs/month
Range :
±240°/s
Scale factor :
47±5mV/°/s
Zero-bias stability :
≤0.8°/h
Zero-bias repeatability :
≤0.8°/h
Random walk :
≤0.02°/h
Random vibration level :
20g
Description
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
Product Overview

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along the sensitive axis. It features a digital closed-loop detection circuit that extracts optical path differences caused by external angular speed, with voltage signal modulation/demodulation for real-time angular velocity detection.

290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
Technical Specifications
Parameter Specification
Bias repeatability (°/h) ≤0.03
Bias drift (°/h) (10s smooth) -45~+70 ≤0.1
Steady-state power consumption (W) <4
Start time (s) 5
Dimensions (mm) 70×70×32
Supply voltage (V) ±5
Dynamic range (°/s) ±500
Scale factor non-linearity (ppm) ≤10
Random walk coefficient(º/√h) ≤0.005
Operating temperature (℃) -40～+70
Storage temperature (℃) -45～+80
Key Features
  • Single-axis optical gyroscope module
  • High precision with ≤10ppm scale factor repeatability
  • Compact 70×70×32mm dimensions
  • Low power consumption (<4W)
  • Fast 5-second start time
  • Wide operating temperature range (-40～+70℃)
Applications
  • Photoelectric cranes and crane systems
  • Flying platforms and UAVs
  • Inertial navigation systems
  • Inertial measurement units
  • Optical/photographic instruments
  • Platform stabilization devices
Support & Services

Our technical support team provides comprehensive assistance including:

  • 24/7 diagnostic and troubleshooting
  • Software updates and upgrades
  • Product installation and configuration
  • On-site maintenance and repair
  • Remote monitoring solutions
  • Comprehensive product training
Packaging & Shipping
  • Static-free protective bag
  • Foam-padded shipping box
  • Secure sealing and labeling
  • Reliable delivery service
Frequently Asked Questions
What is the brand name of the Fiber Optic Gyro?
AVIC
What is the model number?
F70-98
Where is it manufactured?
China
What certifications does it have?
CE certified
What is the minimum order quantity?
1 unit
Product tags

interferometric fiber optic gyroscope

,

fiber optic gyro

,

fiber optics gyroscope
