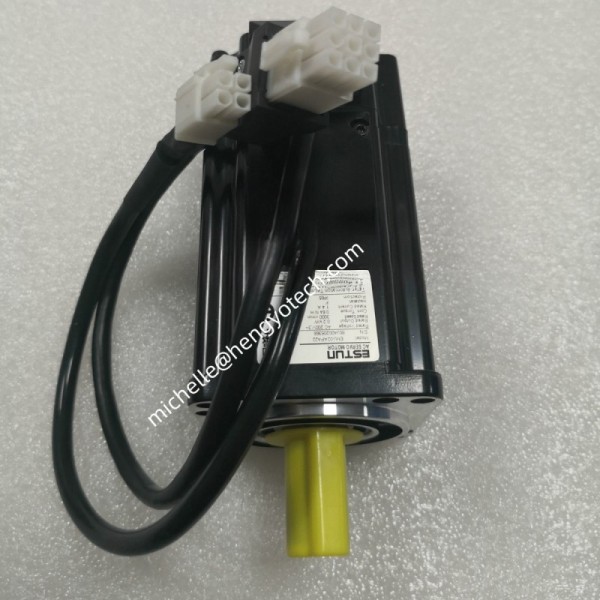

Estun EMJ-02APA22 200W AC Servo Motor with IP65 Protection and 4500 RPM Max Speed for Industrial Automation
Estun EMJ-02APA22 200W AC Servo Motor with IP65 Protection and 4500 RPM Max Speed for Industrial Automation
Estun EMJ-02APA22 200W AC Servo Motor with IP65 Protection and 4500 RPM Max Speed for Industrial Automation
Estun EMJ-02APA22 200W AC Servo Motor with IP65 Protection and 4500 RPM Max Speed for Industrial Automation
Estun EMJ-02APA22 200W AC Servo Motor with IP65 Protection and 4500 RPM Max Speed for Industrial Automation
Estun EMJ-02APA22 200W AC Servo Motor with IP65 Protection and 4500 RPM Max Speed for Industrial Automation
Specifications
Brand Name :
ESTUN
Model Number :
EMJ-02APA22
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
50pcs/month
Delivery Time :
3 working days
Packaging Details :

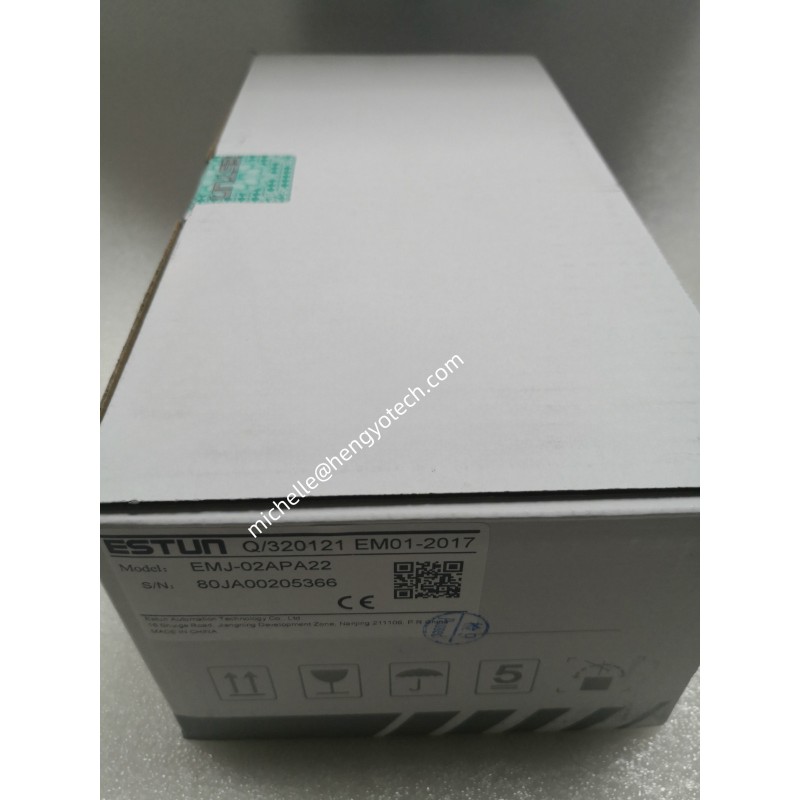

original package
Condition :
original brand new
Warranty :
one year
Shipping way :
DHL FedEx
Application :
CNC machine, packaging machine
Description
Estun EMJ-02APA22 200W Middle Inertia Servo Motor
The Estun EMJ-02APA22 is a highly efficient 200W (0.2kW) AC Servo Motor designed for precision industrial automation. As a core model in the EMJ Series, it balances high dynamic response with smooth operational stability. This motor is engineered to meet the rigorous demands of small-scale CNC machinery, electronic assembly, and medical equipment.
Technical Specifications
Feature Specification
Model Number EMJ-02APA22
Series EMJ Series (Small Capacity)
Rated Output 200 W (0.2 kW)
Input Voltage 200 V - 230 V AC
Rated Torque 0.64 N*m (Peak Torque: 1.91 N*m)
Rated Speed 3000 r/min
Maximum Speed 5000 r/min
Encoder Type 20-bit Incremental / 17-bit Absolute
Protection Rating IP65 (Dust-proof and water-resistant)
Shaft Design Standard Straight Shaft (Keyway available)
Key Features & Industrial Benefits
  • High Dynamic Response: Optimized electromagnetic design reduces cogging torque for ultra-smooth rotation and rapid acceleration
  • Compact & Space-Saving Design: Small footprint ideal for compact medical devices, desktop CNCs, and automated laboratory equipment
  • Industrial Durability (IP65): Built to withstand dust and moisture for longer service life in factory environments
  • Versatile Drive Compatibility: Natively compatible with Estun ProNet and EDB series servo drives
Primary Industrial Applications
  • Electronic Assembly: Precise component placement and soldering
  • Medical Equipment: Laboratory automation and diagnostic scanning axes
  • Packaging Machinery: Small-scale labeling and high-accuracy feeding
  • Textile Machinery: Constant tension control and winding
  • Small CNC Tools: Engraving, milling, and 3D printing axes
Model Decoding
Model Segment Explanation
EMJ EMJ Series Medium-Inertia Servo Motor
02 Rated Power: 0.2kW (200W)
A 200VAC Voltage Class
P Standard Mounting & Cooling Configuration
A Standard Encoder (2500P/R incremental encoder)
22 Special Configuration: Oil-sealed, no brake (200VAC standard setup)
Detailed Technical Specifications
Parameter Value
Rated Voltage 200VAC, three-phase
Rated Power 0.2kW (200W)
Rated Torque 0.64N*m
Rated Current 1.3A
Rated Speed 3000r/min; Max Speed: 4500r/min
Rotor Inertia 0.000269kg*m²
Encoder 2500P/R incremental encoder (standard); 17-bit absolute encoder (optional)
Cooling Method Self-cooling (natural convection)
Protection Class IP65 (shaft extension); IP20 (motor body)
Ambient Temperature 0°C - 40°C (operation); -20°C - 60°C (storage)
Weight Approx. 1.5kg (without cables)
Installation & Wiring Notes
  • Mount the motor on a rigid base to minimize vibration; use matching mounting brackets and torque-tighten fasteners as per specifications
  • Match with PRONET-E-02A drive; connect power terminals and encoder cable (CN2 interface of the drive) correctly
  • Use shielded twisted-pair cables for the encoder to reduce electromagnetic interference; ground the cable shield at the drive end
  • Ensure the oil-sealed shaft (code "22") is properly aligned with the load to avoid excessive radial force on the bearing
  • Wait at least 5 minutes after power-off before performing wiring checks to prevent electric shock
