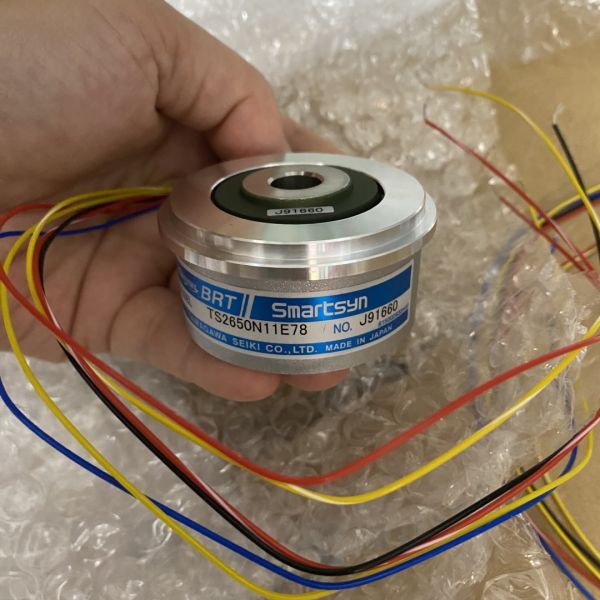

Brushless resolver can be used for high accurate feedback of position and speed sensing, and pole detection of motor. Through their features of resistance for harsh environment and other reasons, they are used with motors for machine tools and robots, in steelworks.
We collectively call these brushless resolvers as FA-SOLVER, and renewed their lineup to cope with a new FA era.

FEATURES

• Wide temperature range
  Built-in type : -55 to +155 °C
  Shaft type : -30 to +100 °C
  Temperature compensation type (BRT): -10 to +80 °C (For details, please refer to each individual specification.)
• Superior environment resistance
  Vibration : 196 m/s2{20 G} at 10 Hz to 500 Hz, for 2 hours to each of three axes.
  Shock : 981 m/s2{100 G} for 6 ms, 3 times to each of 6 axes, 18 times in total
  Humidity : 90 % RH or above at 60 °C
• High speed rotation
  Built-in type : 10,000 min-1(r/min)
  Shaft type : 6,000 min-1(r/min)
  Allowable rotation speed of some types may differ from the above values. For details, please refer to each individual specification. In addition, types exceeding 10,000 min-1(r/min) are also available.
• High reliability
  Resolver has the similar structure to electric motors but has high reliability because of no winding coil on its rotor. In particular, the built-in types are free from maintenance because ball bearings are not installed in them.
• Absolute position detection
• Long-distance transmission
  Robustness against noise enables long-distance transmission
• Capable of compact incorporation
  The use of built-in types of Resolver minimizes housings of motors. Best suited for compact design

Resolvers Application Example

Brushless resolver is highly reliable rotary measurement sensor.
Incessant vibration and repeated shock at a constructive site or in a factory.
The more your car runs, the more severe the environment in the engine room becomes.
Even under such conditions, guarantee steadfast safety and reliability of your car.
