Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection
Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection
Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection
Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection
Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection
Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection

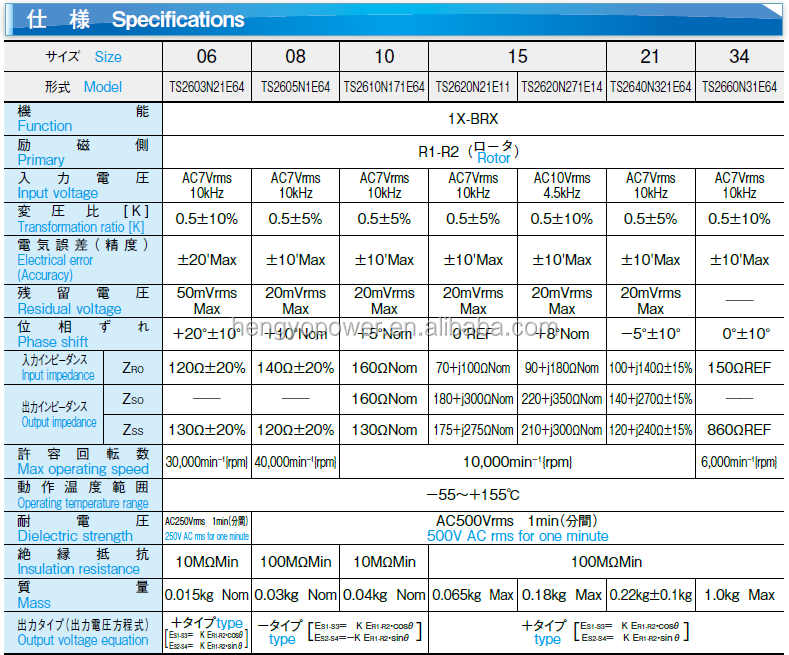

Specifications
Model Number :
TS2620N271E14
Brand Name :
Tamagawa
Place of Origin :
Japan
MOQ :
1
Price :
negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
200pcs/month
Delivery Time :
In stock
Packaging Details :
original package
Type :
resolver
Shipping term :
DHL
Condition :
100% Original and Brand New
Warranty :
One Year
Package :
Original Package
Payment term :
Bank T/T, Western Union, PayPal
Description
Tamagawa Resolver TS2620N271E14 BRX Rotary Incremental Encoder
The Tamagawa TS2620N271E14 BRX Rotary Incremental Encoder delivers exceptional performance in demanding industrial environments with robust construction and reliable position detection capabilities.
Key Features
  • Wide Temperature Range: Operating temperature from -55°C to +155°C
  • Superior Environmental Resistance: Built to withstand harsh conditions
  • Vibration Resistance: 196m/s² (20G) at 10Hz-500Hz for 2 hours across three axes
  • Shock Resistance: 981m/s² (100G) for 6ms, tested 18 times across six axes
  • High Humidity Tolerance: 90% RH or above at 60°C
  • High-Speed Rotation: Up to 10,000 rpm (Size 08: 40,000 rpm)
  • Absolute Position Detection: Precise rotational position measurement
  • Long-Distance Transmission: Robust noise immunity enables reliable signal transmission over distance
  • Compact Design: Built-in Smartsyn technology minimizes motor housing requirements
  • Cost-Effective Solution: Competitive pricing without compromising performance
Reliability & Construction
Exceptional longevity and reliability are achieved through optimized mechanical construction and automated coil incorporation processes, ensuring consistent performance in industrial applications.

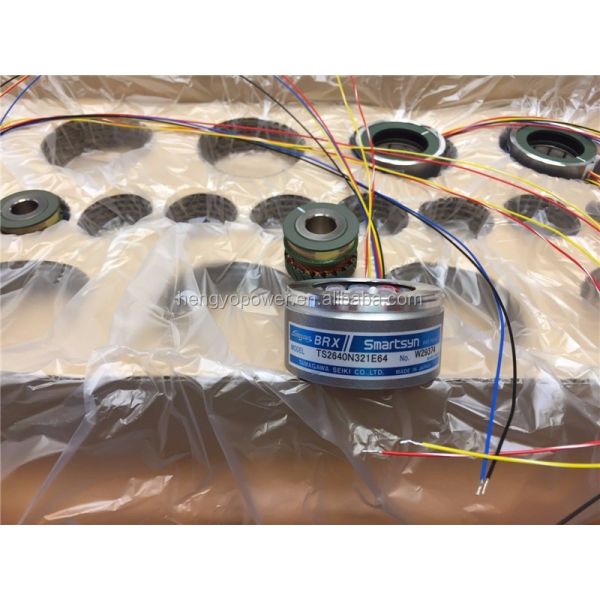

Product Images
Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection
Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection
Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection
Tamagawa Resolver TS2620N271E14 Rotary Incremental Encoder with Wide Temperature Range High Speed Rotation and Absolute Position Detection
