Specifications
Model Number :
ABXING OF series
cabinet Size :
1000mm*10000mm,500mm*1000mm
MOQ :
4
Delivery Time :
15-25 Working day
IP rating :
IP66
Weight :
30.5KG
Payment Terms :
T/T,Western Union
Pixel pitch(mm) :
P2.9, P3.91,P4.8, P6.25,P7.8,P10.41
Place of Origin :
China
Service Access :
Front/Rear
Price :
$680-$1680
LED lifetime :
100,000h
Supply Ability :
Monthly production capacity: 5000 pieces
Warranty :
3Year
Certification :
CE/FCC/CCC/EMC
Grey Level :
14 bits
Brand Name :
ABXING LED
Operation power voltage :
100-240V/50-60Hz
Packaging Details :
flight case/Environmentally friendly wooden case
Brightness :
4500nits-5500NIts
Description
ABXING OF1000 Series Outdoor LED Display
High-performance outdoor LED display with advanced cooling and energy-saving technology, engineered for demanding applications requiring exceptional brightness, durability, and energy efficiency.
Product Overview
The ABXING OF1000 Series is a premium outdoor LED display featuring lightweight aluminum cabinet with 7-layer heat dissipation, common cathode power-saving technology, IP65/IP66 weather protection, and N+1 redundancy. Available in six pixel pitches and multiple cabinet sizes for flexible solutions in billboards, stadium displays, retail signage, and 3D naked-eye installations.
P4.8 Outdoor LED Screen Panel Roadside Advertising Waterproof Programmable Sign Board ABXING OF
Cabinet & Mechanical Specifications
Parameter Specification
Standard Cabinet Size 1000mm * 1000mm
Alternative Sizes 1500mm * 1000mm, 1000mm * 500mm, 1500mm * 500mm
Module Size 500mm * 250mm
Cabinet Weight 30.5kg/m² - 28kg lighter than conventional cabinets
Cabinet Material Aluminum frame with aluminum module base
Surface Finish Sony gray - reflects solar radiation, reduces heat absorption
Protection Rating IP65 (front and rear) / IP66 available
Cooling System 7-layer efficient heat dissipation (fans, vents, fins, die-cast housing)
Service Access Dual front and rear maintenance
Installation Options Fixed steel structure, hanging, exposed, 90° corners, curved setups
Connection System Fast locks and handle holes on all sides
P4.8 Outdoor LED Screen Panel Roadside Advertising Waterproof Programmable Sign Board ABXING OF
Optical & Visual Performance
Parameter Specification
Pixel Pitch Options P2.9, P3.91, P4.8, P6.25, P7.8125, P10.417
Brightness Up to 10,000 nits - visible in direct sunlight
LED Type High-brightness black or white LED lamps
Contrast High contrast ratio for vivid, lifelike imagery
Mask Design Innovative nanofabrication process for enhanced clarity

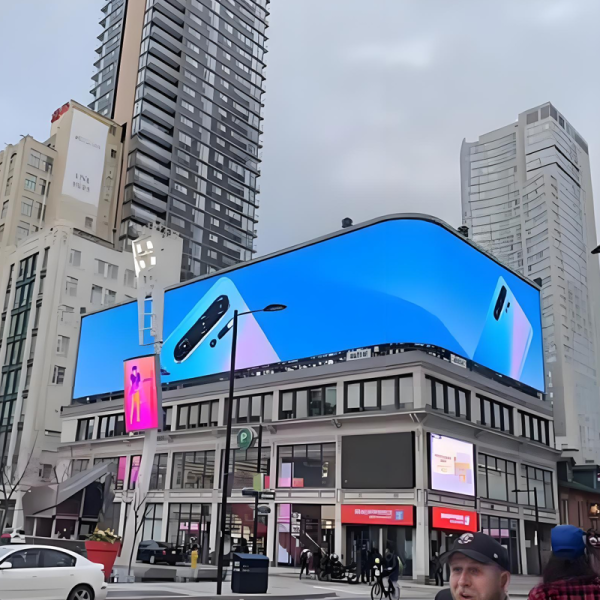

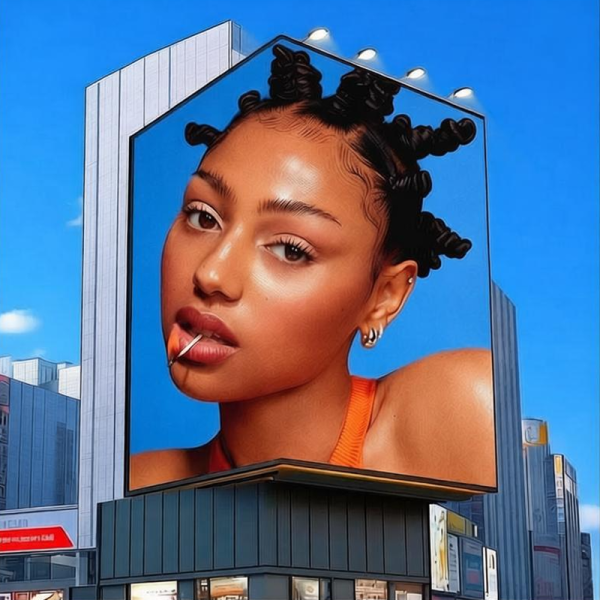

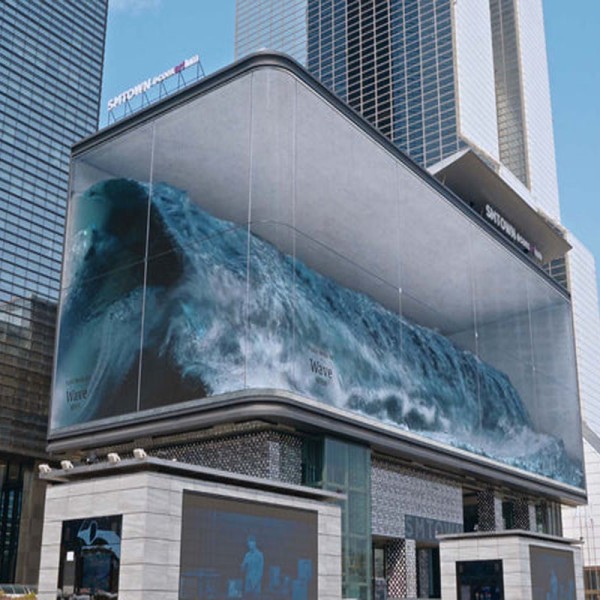

3D Capability Supports outdoor naked-eye 3D display effects
Electrical & Driving Specifications
Parameter Specification
Driving Solution Common Cathode low-voltage technology
Power Savings Over 40% reduction compared to conventional displays
Input Voltage AC 100V-240V - compatible with power systems worldwide
Heat Generation Minimized through common cathode technology
Redundancy N+1 power and signal redundancy - never blackout
P4.8 Outdoor LED Screen Panel Roadside Advertising Waterproof Programmable Sign Board ABXING OF
Thermal Management Specifications
Parameter Specification
Cooling System 7-layer heat dissipation
Cooling Components Fans, airflow vents, aluminum fins, die-cast housing
External Cooling Required No - air conditioner not needed
Thermal Performance Maintains optimal operating temperatures in high ambient conditions
P4.8 Outdoor LED Screen Panel Roadside Advertising Waterproof Programmable Sign Board ABXING OF
Intelligent Monitoring & Diagnostics
Feature Function
Module Spot Check Verifies individual module performance
Voltage Monitoring Tracks power supply health in real time
Module Connector Detection Identifies connection issues before failure
Module Temperature Detection Monitors thermal conditions across the display
Alert System Email notifications for proactive maintenance
Cable & Connectivity Specifications
Parameter Specification
Cable Design Concealed waterproof wiring with aviation connectors
Signal Connection Cable-free with signal pin dual sockets
Ribbon Cable Required No - eliminates common failure points
Module Replacement Easy, no direction confusion
P4.8 Outdoor LED Screen Panel Roadside Advertising Waterproof Programmable Sign Board ABXING OF
Environmental & Durability Specifications
Parameter Specification
Protection Rating IP65 (front and rear) / IP66 available
Weather Resistance Rain, snow, dust, and humidity protection
Direct Outdoor Exposure Supported without additional enclosures
Operating Temperature Designed for diverse outdoor climate conditions
Solar Reflection Sony gray finish reduces heat absorption
P4.8 Outdoor LED Screen Panel Roadside Advertising Waterproof Programmable Sign Board ABXING OF
Pixel Pitch Specifications
Pixel Pitch Optimal Viewing Distance Typical Applications
P2.9 3 - 8 meters Close-range, high-detail displays
P3.91 4 - 10 meters Medium-distance advertising
P4.8 5 - 12 meters Stadium displays, billboards
P6.25 6 - 15 meters Large-format outdoor signage
P7.8125 8 - 20 meters Long-distance viewing
P10.417 10 - 25 meters Very large-format displays
P4.8 Outdoor LED Screen Panel Roadside Advertising Waterproof Programmable Sign Board ABXING OF
Application Suitability
  • Roadside billboards and digital out-of-home (DOOH) advertising
  • Stadium and arena perimeter screens
  • Shopping mall facades and retail signage
  • Event staging, concerts, and festivals
  • Transportation hubs and public information displays
  • 3D naked-eye display projects
  • Building wraps and architectural integration
Ordering Information
All OF1000 Series cabinets are supplied with aluminum cabinet with Sony gray finish, common cathode power supply units, IP65-rated sealed construction, fast lock connection hardware, concealed waterproof cable system, and front and rear service access.
Pixel pitch and cabinet size must be specified at order. For detailed mechanical drawings, electrical schematics, and compliance certificates, please contact our engineering support team.
