The ABXING IO960-320 Series is a premium outdoor fixed LED display engineered for permanent installations requiring exceptional brightness, durability, and maintenance convenience. Featuring advanced SMD encapsulation technology, this display delivers vivid, smooth, and high-contrast imagery that captures attention in any outdoor environment.

With full front-service access for all critical components—including LED modules, power supplies, receiving cards, HUB cards, and cables—the IO960-320 Series significantly reduces maintenance time and costs. Available in multiple cabinet sizes with support for 320×320mm or 250×250mm LED modules, this series offers the flexibility to meet diverse project requirements while maintaining exceptional visual performance and reliability.

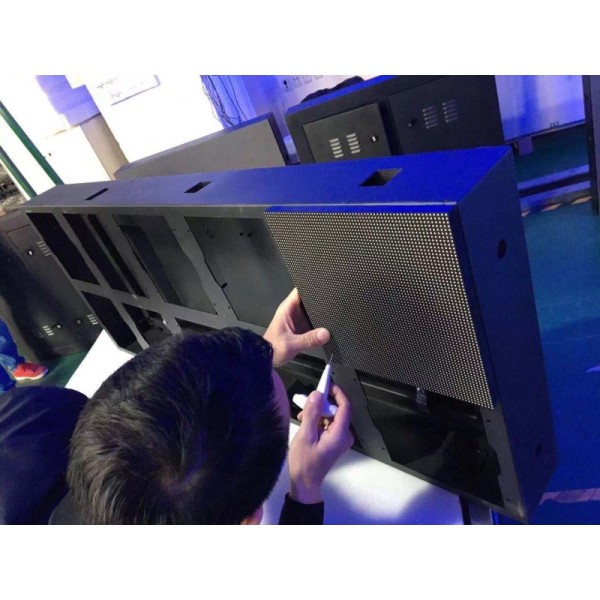

The IO960-320 Series features a comprehensive full front-service design that sets it apart from conventional outdoor displays. Every critical component can be accessed, removed, and replaced entirely from the front of the display.

This innovative design eliminates the need for rear corridors or access hatches, making the IO960-320 Series ideal for installations against walls, in space-constrained locations, or in environments where rear access is unavailable. The front-service architecture significantly reduces maintenance time, minimizes downtime, and lowers long-term operating costs.

The IO960-320 Series utilizes advanced SMD (Surface-Mounted Device) 3-in-1 LED encapsulation technology, delivering exceptional brightness and color performance.

• Vivid, Lifelike Colors - Accurate color reproduction that brings content to life
• Smooth Picture Quality - High refresh rate eliminates flicker for broadcast-quality video
• High Brightness - Excellent visibility even in direct sunlight
• Consistent Performance - Reliable operation across the entire display surface

The IO960-320 Series offers exceptional flexibility with multiple cabinet sizes and module options to match your specific installation requirements.

• Cabinet Sizes - Choose from 500×1000mm, 1000×500mm, or 960×960mm
• Module Options - Support for both 320×320mm and 250×250mm LED modules
• Custom Configurations - Mix and match to create the perfect display size for any application

Outdoor LED displays generate significant heat, particularly in direct sunlight. The IO960-320 Series addresses this challenge with a sophisticated cooling system featuring three aerofoil fans in each 960×960mm cabinet.

• Powerful Airflow - Ventilation volume of 6.6 cubic meters per minute
• Rapid Air Circulation - Complete air exchange 25 times every minute inside the cabinet
• Immediate Cooling - Maintains optimal operating temperatures for extended component life
• Reduced Thermal Stress - Minimizes wear on electronic components

Engineered to perform reliably in challenging outdoor environments, the IO960-320 Series withstands rain, dust, and humidity with IP65 protection.

• Rain & Moisture - Sealed construction prevents water ingress
• Dust & Particulates - Protection against airborne particles
• UV Resistance - Anti-ultraviolet materials prevent degradation
• Temperature Extremes - Reliable performance in hot and cold climates

The IO960-320 Series features a 140° horizontal and 140° vertical viewing angle, ensuring consistent color and clarity from virtually any position.

• Largest Viewing Area - More viewers can see the display clearly
• Consistent Color - Accurate color reproduction from any angle
• Clear & Natural Images - Excellent image quality in all directions

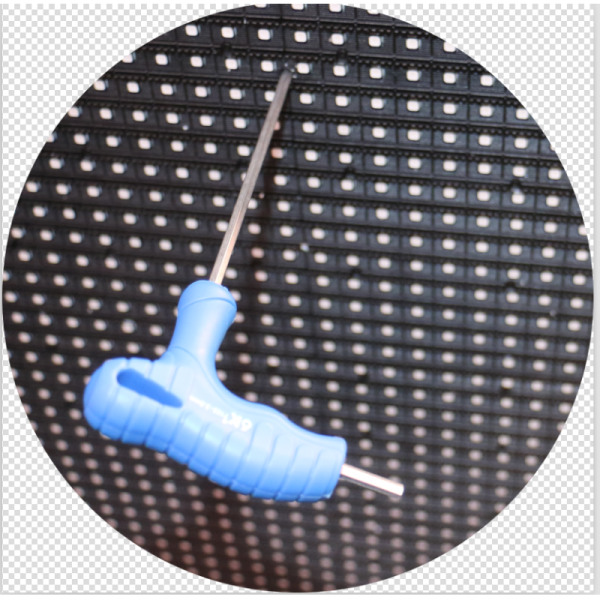

The IO960-320 Series features a user-friendly quick lock system that simplifies installation and removal without requiring specialized technical skills.

The IO960-320 Series cabinet is constructed from high-strength aluminum alloy for optimal performance and durability.

• Lightweight - Only 40kg for the 960×960mm cabinet
• High Strength - Superior structural integrity
• Corrosion-Resistant - Long-term durability in outdoor environments
• Thin Profile - Only 150mm thick for a sleek appearance
