106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box
106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box
106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box
106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box
106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box
106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box
106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box
106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box
Specifications
Brand Name :
ANBOX
Model Number :
E10640
Certification :
CE
Place of Origin :
CHINA
MOQ :
1pc
Price :
USD6-USD10
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
5000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
PE bag, Cartons
Product :
Split-body Extruded Aluminum Enclosure
Color :
Black in stock, can be customized
External size :
106*40*110mm, Any Length Available
Application :
Electronic Projects like switch/converter, power supply units, audio amplifier projects, ham radio projects,etc
Material :
Aluminum 6063
Surface treatment :
Brushed Black, can custom anodized matt black
Type :
Aluminum Heatsink Case
Description

106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box

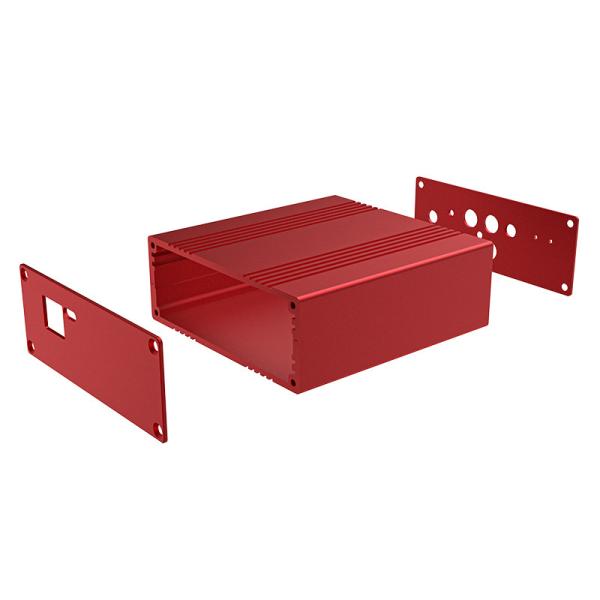

This Extruded Aluminum heatsink case size is106*40*110mm, Length can be changed, with hairline brushed surface finish and black color in stock, other surface such as anodized sandblasting and colors can be customized, this heatsink case is suitable to fit Width 100mmm Printed Circuit Boards.

The sliding cover design allows the top part of the extrusion slides smoothly, easy to access inside to mount parts or components

This heat sink case made of extruded aluminum AL6063, it has excellent electromagnetic shielding performance, good heat dissipation performance.

This extruded electronic Aluminum Enclosure are widely use for instrument, electric power,telecommunication, radio and television, medical device,network, hotel and military supply.

Description for this Aluminum heatsink case

  • Extruded aluminum enclosure with heat-sink top and heatsink sides.
  • Sturdy extruded case construction
  • Black / Silver sandblast / matte anodized finish
  • Built-in slots/grooves are for holding PCB or circuit boards.
  • Excellent electromagnetic shielding performance, good heat dissipation performance
  • Aluminum PCB Box with Flanged Ear Body for Electronics Development Black
  • Customization is welcomed, such as cut-out/silkscreen/laser engraving/sticker/Tapping/Laser cutting Or customized as per your drawing or sample.

Paremeters of this Extruded Aluminum Heatsink Wall-mount Enclosure

Model NO. E10640
Structure Split body Aluminum Enclosure
Outer Size 106*40*110mm (W*H*L) L can be change
PCB width 100mm
Surface treatment brushed black
Color Black,can be customized
Components The top and bottom halves aluminum enclosure, end caps, and self-tapping screws
Material Extrusion Aluminum 6063
Cusomization color ,cutout, laser silkscreen,label, drill holes, change length

Drawing

106*40*110mm Brushed Black Aluminum Heatsink Case For Width100mm PCB Project Box


Over 200 extruded aluminum enclosures available, your OEM / ODM order is highly welcomed.
