Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm
Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm
Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm
Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm
Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm
Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm
Specifications
Brand Name :
ANBOX
Model Number :
E10727
Certification :
CE
Place of Origin :
CHINA
MOQ :
1pc
Price :
USD5-USD8
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
5000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
PE bag, Cartons
Product :
Split-body Extruded Aluminum Enclosure
Color :
Black, Silver, and customized colors
External size :
131*27*120mm, Any Length Available
Length :
can be cut as per your requests
Application :
Electronic Projects like switch/converter, power supply units, audio amplifier projects, ham radio projects,etc
Material :
Aluminum 6063
Surface treatment :
Matt Anodized, custom available
Type :
Wall mount Aluminum Enclosure
Description

Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm

This Split-Body Extruded Aluminum Enclosure size is 131/27/120mm with wall mount, Enclosures bodies are fabricated from extruded aluminum with internal slots which are designed to accomodate printed circuit boards 102mm width.

The sliding cover design allows the top part of the extrusion slides smoothly, easy to access inside to mount parts or components

This heat sink case made of extruded aluminum AL6063, it has excellent electromagnetic shielding performance, good heat dissipation performance.

This extruded electronic Aluminum Enclosure are widely use for instrument, electric power,telecommunication, radio and television, medical device,network, hotel and military supply.

Description for this Split-body Extruded Aluminum Enclosure

  • Extruded aluminum enclosure with heat-sink top and heatsink sides.
  • Sturdy extruded case construction
  • Black / Silver sandblast / matte anodized finish
  • Built-in slots/grooves are for holding PCB or circuit boards.
  • Excellent electromagnetic shielding performance, good heat dissipation performance
  • Aluminum PCB Box with Flanged Ear Body for Electronics Development Black
  • Customization is welcomed, such as cut-out/silkscreen/laser engraving/sticker/Tapping/Laser cutting Or customized as per your drawing or sample.

Paremeters of this Extruded Aluminum Heatsink Wall-mount Enclosure

Model NO. E10727
Structure Split body Aluminum Enclosure
Outer Size 131*27*120mm (W*H*L) L can be change
PCB width 102mm
Surface treatment matt black sandblasting anodizing
Color Black and Silver, can be customized
Components The top and bottom halves aluminum enclosure, end caps, and self-tapping screws
Material Extrusion Aluminum 6063
Cusomization color ,cutout, laser silkscreen,label, drill holes, change length

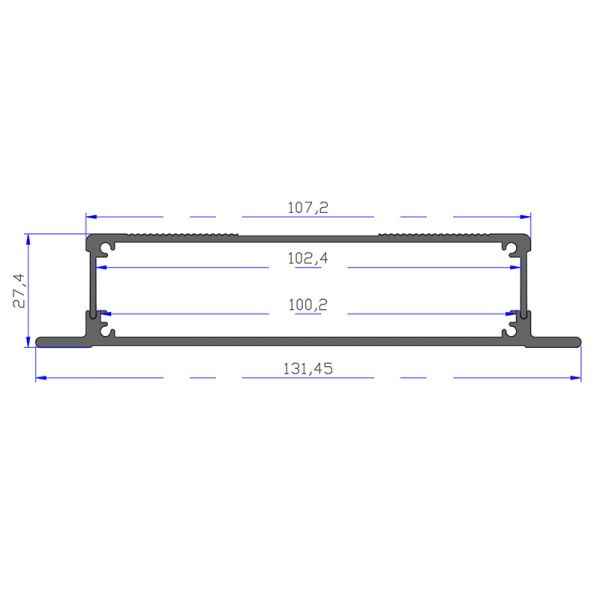

Drawing

Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm


Over 200 extruded aluminum enclosures available, your OEM / ODM order is highly welcomed.
