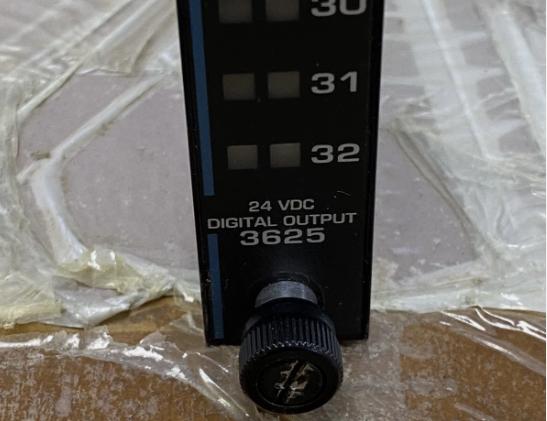

Invensys Triconex 3625 Supervised Digital Output Module
Invensys Triconex 3625 Supervised Digital Output Module
Specifications
Brand Name :
Invensys Triconex
Model Number :
3625
Certification :
COC
Place of Origin :
USA
MOQ :
1 Piece
Price :
inquiry
Payment Terms :
T/T
Supply Ability :
10 Piece per a day
Delivery Time :
5-8 work days
Packaging Details :
original
Name :
3625 Invensys Triconex Supervised Digital Output Module
Model :
3625
Package :
STANDARD
Warranty :
12 months
Gross Weight :
2.2 lbs / 35.2 oz / 1kg
Packing Size :
7" x 7" x 4" (18 cm x 18 cm x 10 cm)
Lead time :
1~3 Days
Quality :
100%Brand
Product name :
Supervised Digital Output Module
Stock :
Available
Description

3625 Invensys Triconex Supervised Digital Output Module

Product Details:

Brand Name Invensys Triconex
Model 3625
Catalog TMR architecture
Origin United States (USA)
Dimension 16*16*12cm
Weight 1kg
HS Code 8537101190
Payment T/T
Sales Price $2400
Warranty 12 months
Lead time 3-5 work days


Description:

Designed for the most critical control programs, supervised digital output (SDO) modules meet the needs of systems whose outputs remain in a
single state for extended periods of time (in some applications, for years). An SDO module receives output signals from the main processors on each of three channels. Each set of three signals is then voted upon by a fully faulttolerant quadruplicated output switch whose elements are power transistors, so that one voted output signal is passed to the field termination.

Each SDO module has voltage and current loopback circuitry coupled with sophisticated online diagnostics that verify the operation of each output
switch, the field circuit and the presence of a load. This design provides complete fault coverage without the need to influence the output signal.
The modules are called “supervised” because fault coverage is extended to include potential field problems. In other words, the field circuit is supervised by the SDO module so that the following field faults can be detected:

• Loss of power or blown fuse

• Open or missing load

• A field short resulting in the load being energized in error

• A shorted load in the de-energized state

Failure to detect field voltage on any output point energizes the power alarm indicator. Failure to detect the presence of a load energizes the load alarm indicator. All SDO modules support hot-spare modules and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane
