UNS N08825 Incoloy 825 Seamless Nickel Alloy Pipe W.Nr 2.4858 For Marine Product Pipeline System
UNS N08825 Incoloy 825 Seamless Nickel Alloy Pipe W.Nr 2.4858 For Marine Product Pipeline System
UNS N08825 Incoloy 825 Seamless Nickel Alloy Pipe W.Nr 2.4858 For Marine Product Pipeline System
UNS N08825 Incoloy 825 Seamless Nickel Alloy Pipe W.Nr 2.4858 For Marine Product Pipeline System
UNS N08825 Incoloy 825 Seamless Nickel Alloy Pipe W.Nr 2.4858 For Marine Product Pipeline System
UNS N08825 Incoloy 825 Seamless Nickel Alloy Pipe W.Nr 2.4858 For Marine Product Pipeline System
Specifications
Brand Name :
TSING SHAN
Model Number :
UNS N08825 Incoloy 825
Certification :
ISO SGS MTC
Place of Origin :
China
MOQ :
100KGS
Price :
12.5-25 USD/KG
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Export Packing
Equal Grades :
UNS N08800
Form Of Supply :
bar, rod, sheet, plate
Surface Treatment :
Anodized,Brushed,Mill Finished,Polished
Material :
Nickel-iron-chromium alloy
Modulus Of Elasticity :
196 kN/mm²
Specification :
0.3mm-6mm
Coefficient Of Expansion :
14.4 μm/m °C (20 – 100°C)
Alloy Type :
Iron based nickel-chromium Alloy
Thermalconductivity :
14-20W/m-K
Curie Point :
<-196°C
Raw Materials :
NI38-46%,CR19.5-23.5%
Thickness :
0.3-20mm
Material Composition :
Nickel, Chromium, Iron, Molybdenum
Modulus Of Rigidity :
75.9 kN/mm²
Electrical Resistivity :
1.03 μΩ·m
Description

UNS N08825 Incoloy 825 Seamless Nickel Alloy Pipe W.Nr 2.4858 For Marine Product Pipeline System

Product Description


Incoloy 825 Specification
UNS W.Nr
N08825 2.4858


Incoloy 825 Chemical composition
Alloy % Ni Cr Fe C Mn Mn Cu Mo Al Ti P S
Min 38 19.5 balance 1.5 2.5 1 0.6
825 Max 46 23.5 balance 0.05 1 0.5 3 3.5 0.2 1.2 0.02 0.03

Incoloy 825 Physical properties
Density 8.1 g/cm³
Melting point 1370-1400°C

Incoloy 825 Alloy mi nimum mechanical properties in the room temperature
Alloy state Tensile strength
Rm N/mm²		 Yield strength
R P0. 2N/mm²		 Elongation
A 5 %		 Brinell hardness
HB
825 550 220 30 ≤200


Characteristic as below
1. Good stress corrosion cracking resistance performance
2. Good resistance for pitting and crevice corrosion performance
3. Good anti-oxidation and non-oxidzing heat acid performance
4. Good mechanical performance in both room temperature and up to 550°C
5. Have the pressure vessel authenticate when manufacture temperature up to 450°C

Incoloy 825 Metallurgical structure
825 is the face-centered cubic lattice structure.

Incoloy 825 Application field
825 widely use in many kinds of industry field that the working temperature no more than 550°C.

Incoloy 825 Typical application field
1. Sulfuric acid factory usage for heating pipe, container, basket, chain and so on.
2. Cooling heat exchanger, marine product pipeline system and gas pipeline of acidic environment.
3. Heat exchanger, steam machine, washing, impregnation pipe, etc. for phosphoric acid produce
4. Oil refining in the air heat exchanger
5. Food project
6. Chemical process
7. Application of high pressure oxygen flam-retardant alloy

UNS N08825 Incoloy 825 Seamless Nickel Alloy Pipe W.Nr 2.4858 For Marine Product Pipeline System

UNS N08825 Incoloy 825 Seamless Nickel Alloy Pipe W.Nr 2.4858 For Marine Product Pipeline System

FAQ


Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .

Q2: Can I have free sample before making orders?

A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.

Q3: How do you control the quality ?

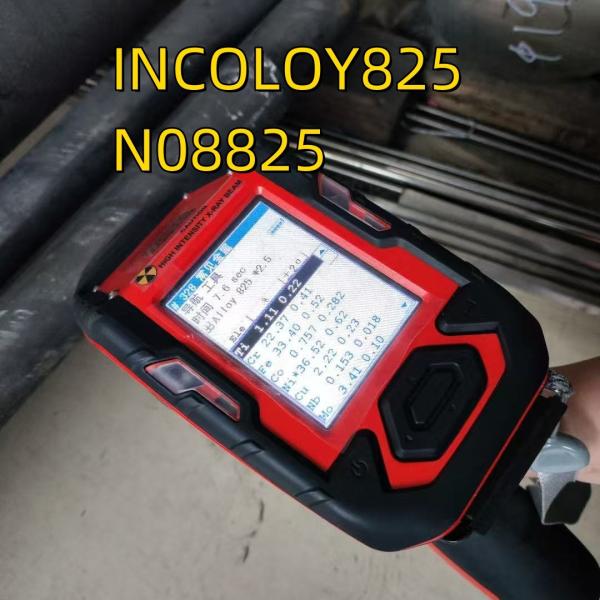

A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .

Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .

Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
