Specifications
Brand Name :
TSING SHAN
Model Number :
Nickel Alloy 800 N08800 W. Nr. 1.4876 Incoloy 800/800h/800ht
Certification :
ISO SGS MTC
Place of Origin :
China
MOQ :
100KGS
Price :
12.65-28.5 USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Export Packing
Specific Heat :
460 J/kg•°C
Standard :
ASTM, ASME
Chemical Position :
Nickel-Iron-Chromium
Weldability :
Good
Chemical Composition :
Nickel-iron-chromium alloy
Magnetic Permeability :
1.04-1.07
Alloy Type :
Nickel-iron-chromium Alloy
High Temperature Resistance :
Up to 1000°C
Sureface :
Bright, Acid white
Delivery State :
Sosoloid
Quality Test :
MTC (mill Test Certification)
Dia :
0.6mm,0.8mm,0.9mm,1.0mm,1.2mm,1.6mm
Modulusofelasticity :
200-210GPa
Modulus Of Elasticity :
196 kN/mm²
Type Of Material :
Nickel iron chromium austenitic alloy
Description

Incoloy 800HT Rod Nickel Alloy 800 N08800 W. Nr. 1.4876 Incoloy 800/800h/800ht Round Bar

Product Description

Incoloy 800HT is nickel-iron-chromium alloy. The alloys' higher creep-rupture strength is the result of aluminum, carbon, and titanium contents. In addition, Incoloy 800 has good corrosion resistance in acidic environments while being resistant to oxidation and carburization in high temperature environments.

Incoloy 800HT sheet is available in thicknesses ranging from .020 to .156". Incoloy 800HT strip in coil from is available in lighter gauges up 12" wide. Incoloy 800HT plate is available up 2" thick.

Incoloy 800HT bar is available in wrought bar up to 8" diameter and larger sizes and shapes may be forged to order.

Incoloy 800HT seamless pipe is available up to 8" NB. Larger sizes are available in welded construction (100% X-ray) and can also be fabricated to order. Incoloy 800HT tubing is available up 3" OD. Incoloy 800HT redrawn tubes and tubing with tight tolerances can be supplied in almost any size no matter how small the size or quantity.

Butt-weld and forged fittings are available or can be manufactured with short lead times..

Characteristics of Incoloy 800H/HT

  • High temperature strength
  • High creep rupture strength
  • Resistant to oxidation and carburization in high temperature environments
  • Good corrosion resistance in many acidic environments
  • Good resistance to many sulfur-containing atmospheres

Product Parameters

Weight% Ni Cr Fe C Al Ti Al+Ti
Alloy 800 30-35 19-23 39.5 min 0.10 max 0.15-0.60 0.15-0.60 0.30-1.20
Alloy 800H 30-35 19-23 39.5 0.05-0.10 0.15-0.60 0.15-0.60 0.30-1.20
Alloy 800HT 30-35 19-23 39.5 0.06-0.10 0.25-0.60 0.25-0.60 0.85-1.20



Incoloy 800HT Rod Nickel Alloy 800 N08800 W. Nr. 1.4876 Incoloy 800/800h/800ht Round Bar

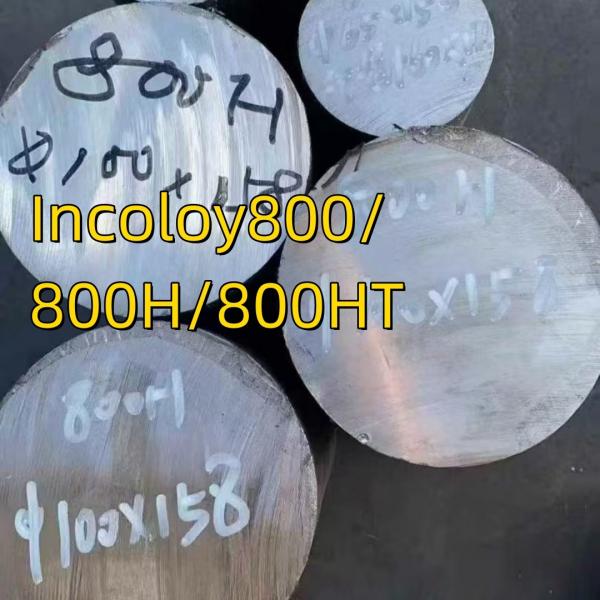

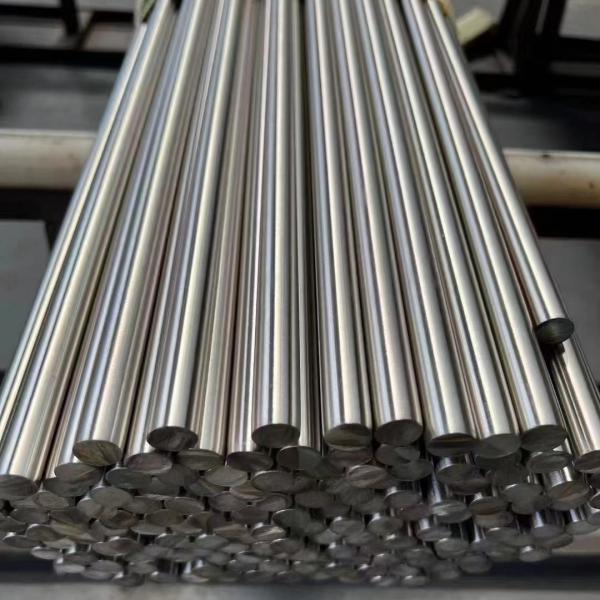

Detailed Photos

Incoloy 800HT Rod Nickel Alloy 800 N08800 W. Nr. 1.4876 Incoloy 800/800h/800ht Round BarIncoloy 800HT Rod Nickel Alloy 800 N08800 W. Nr. 1.4876 Incoloy 800/800h/800ht Round Bar

Incoloy 800HT Rod Nickel Alloy 800 N08800 W. Nr. 1.4876 Incoloy 800/800h/800ht Round Bar

FAQ

What types of high-temperature alloy products do you offer?
We offer high-temperature alloy rods, wires, strips, plates, tubes, bolts, and nuts. Our products cover various specifications and sizes to meet different application needs.

How to choose the right high-temperature alloy material?
Choosing the right high-temperature alloy material requires a comprehensive consideration of factors such as the temperature, corrosiveness, and mechanical strength requirements of the specific application environment. Our engineers can provide professional advice to help you select the most suitable material.

What international standards do your high-temperature alloy products meet?
Our products meet international standards such as ASTM, AMS, GB/T, ensuring product quality and reliability.

Can you customize products according to customer requirements?
Yes, we offer customized services based on the specific needs of our customers, including special specifications and performance requirements.

What are your production processes and quality control like?
We use advanced production processes and a strict quality control system. From raw material procurement to the final product shipment, every step is carefully monitored to ensure the product quality meets the standards.

Can you provide samples?
Yes, we can provide samples according to your requirements.
