Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Specifications
MOQ :
30
Price :
2.65
Model NO. :
304 316L
Shape :
Angle
Technique :
Hot Rolled
Surface Treatment :
Bright
Specification :
30*30-100*100
Material :
304 316 310s 2205
Standard :
AISI ASTM JIS
Side Length :
20-200mm
Thickness :
3-24mm
Quality :
0.89-71.17kg/m
Equal Angle :
Yes
Unequal Angle :
Yes
Transport Package :
Wooden Box
HS Code :
7219340000
Delivery Time :
5-10 days
Description
Hot Rolled 304 316L Stainless Steel Angle Bar
No. 1 Finish Stainless Steel Angle in Stock - Available in Equal and Unequal Configurations
Product Overview
Stainless steel angle bars are long strips of steel with perpendicular legs forming L-shaped structural components. Available in both equal and unequal leg configurations to meet diverse construction and engineering requirements.
Product Specifications
Product Name Stainless Steel Angle Bar
Material 304, 316, 310S, 2205
Price Terms FOB, CIF, CFR, EXW
Standard AISI, ASTM, JIS
Packing Customized according to requirements
Certifications ISO, SGS, BV
Delivery Time 5-10 days (based on stock and order quantity)
Payment Terms 30% deposit by T/T, 70% before shipment
Applications
Stainless steel angle bars serve as essential structural components in various construction and engineering applications:
  • Building beams and structural frameworks
  • Bridge construction and support systems
  • Transmission towers and electrical infrastructure
  • Hoisting and transportation machinery
  • Shipbuilding and marine structures
  • Industrial furnaces and reaction towers
  • Container racks and storage systems
  • Cable trench supports and electrical conduits
  • Bus support installation and transportation infrastructure
  • Warehouse shelving and storage solutions
Available Sizes and Specifications
Specification (mm) Weight (kg/m) Specification (mm) Weight (kg/m)
20×30.8980×56.21
20×41.1580×67.38
25×31.1280×78.53
25×41.4680×89.66
30×31.3780×1011.87
30×41.7990×68.35
36×31.6690×79.66
36×42.1690×810.95
36×52.6590×1013.48
40×31.8590×1215.94
40×42.42100×69.37
40×52.98100×710.83
45×32.09100×812.28
45×42.74100×1015.12
45×53.37100×1217.9
45×63.99100×1420.61
50×32.33100×1623.26
50×43.06110×711.93
50×53.77110×813.53
50×64.46110×1016.69
56×32.62110×1219.78
56×43.45110×1422.81
56×54.25125×815.5
56×86.57125×1019.13
63×43.91125×1222.7
63×54.82125×1426.19
63×65.72140×1021.49
63×87.47140×1225.52
63×109.15140×1429.49
70×44.37140×1633.39
70×55.4160×1024.73
70×66.41160×1229.39
70×77.4160×1433.99
70×88.37160×1638.52
75×55.82180×1233.16
75×66.91180×1438.38
75×77.98180×1643.54
75×89.03180×1848.63
75×1011.09200×1442.89
200×1648.68
200×1854.4
200×2060.06
200×2471.17

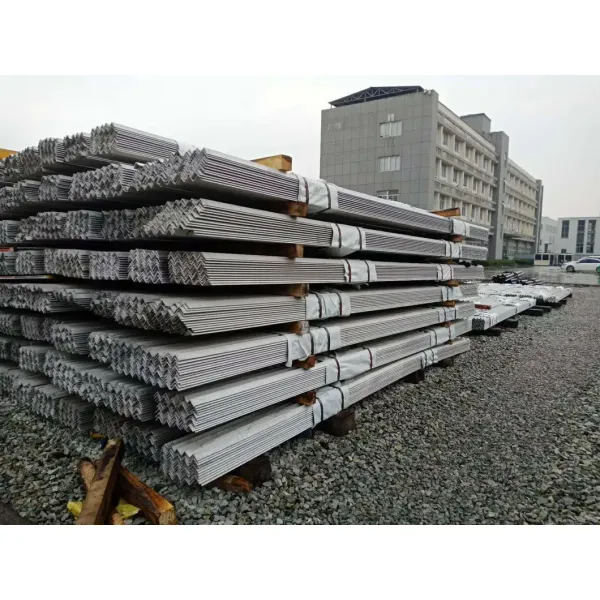

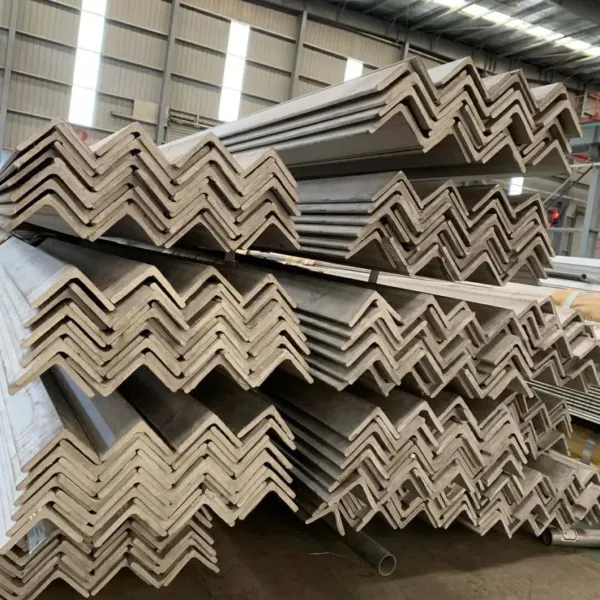

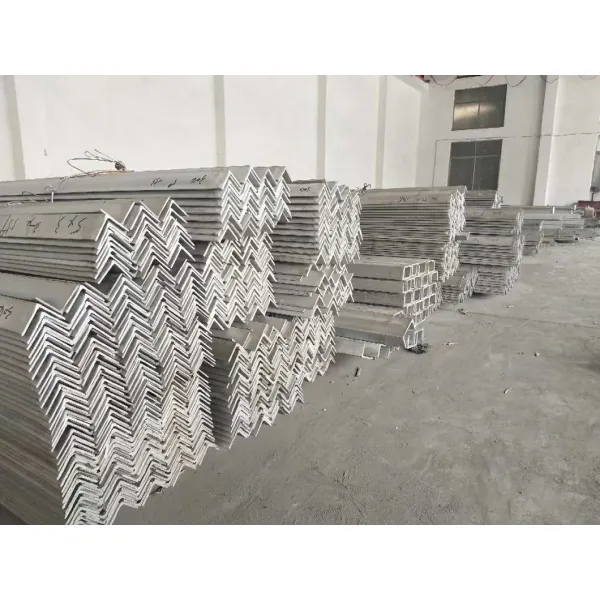

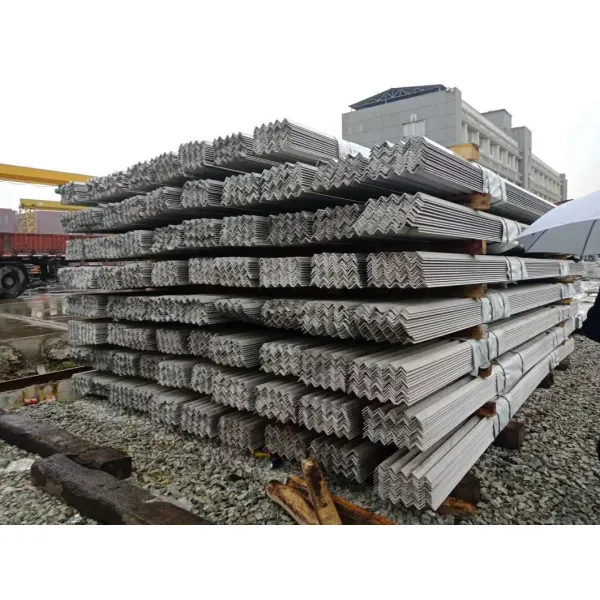

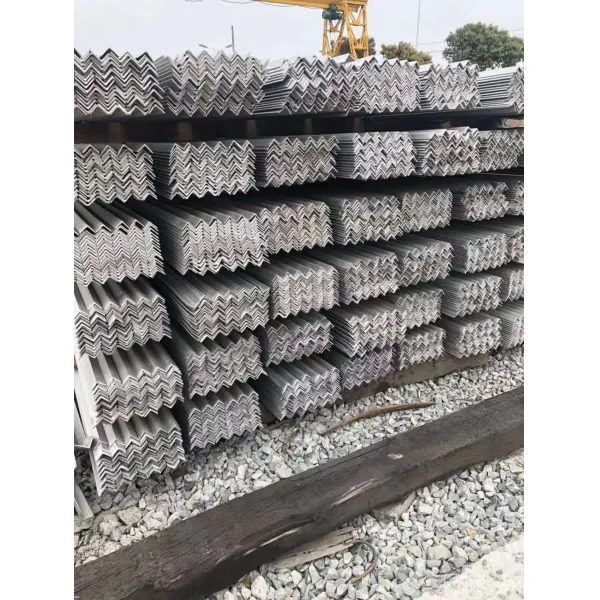

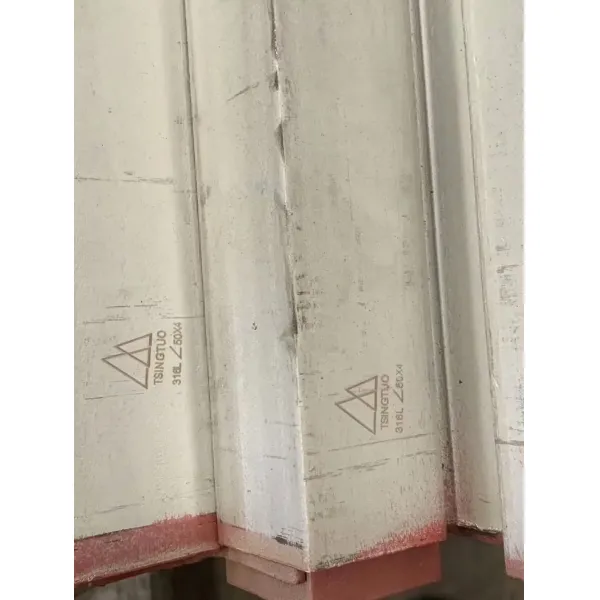

Product Gallery
Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish Hot Rolled 304 316L Stainless Steel Angle Bar with Bright Surface Finish
Our Services
Superior Quality
All materials are first-class grade with advanced equipment and manufacturing techniques. We maintain strict quality control from production through packaging to ensure consistent high-quality stainless steel products.
Competitive Prices
Direct material sourcing through our professional subsidiary factory enables lower production costs, allowing us to offer highly competitive pricing without compromising quality.
Comprehensive Customer Support
  • 24-hour technical support via email
  • 7-day return policy for unsatisfactory goods
  • 3-month quantity assurance guarantee
  • 1-year volume discount program
