Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Specifications
MOQ :
30
Price :
1.86
Shape :
U Channel
Technique :
Hot Rolled
Surface Treatment :
Bright
Angle Bar Size :
30*30*3 - 200*200*10mm
Channel Bar Size :
50*30*3 - 200*100*10mm
Length :
6m
Angle Bar Thickness :
3-10mm
Channel Bar Thickness :
3-12mm
Angle Bar Weight :
0.894-15.0 kg/m
Channel Bar Weight :
1.79-35.8 kg/m
Grade :
201, 304, 310S, 316L, 321, 2205
Standard :
ASTM, GB, DIN
Material :
Stainless Steel
Processing Service :
Cutting
Packing :
Waterproof paper or wooden pallets
Description
201 304 Hot Rolled Peeling Pickled Stainless Steel Angle Bar ASTM
High-quality hot rolled peeling pickled stainless steel angle bars and channel bars manufactured to ASTM standards, available in various grades including 201, 304, 310S, 316L, 321, and 2205.
Product Specifications
  • Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
  • Grades Available: 201, 304, 310S, 316L, 321, 2205, etc.
  • Standards: ASTM, GB, DIN
  • Angle Bar Sizes: 30×30×3 - 200×200×10mm × 6m length
  • Channel Bar Sizes: 50×30×3 - 200×100×10mm × 6m length
  • Services: Cutting
  • Packing: Waterproof paper surround or wooden pallets
  • Brand: TSINGSHAN
Stainless Steel Angle Bar - Standard Sizes and Weight per Meter
Size (A×B mm) 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm
20×200.8941.131.38
25×251.131.451.772.06
30×301.371.772.172.53
35×351.612.092.573.01
40×401.852.412.973.49
45×452.122.763.404.00
50×502.363.073.794.465.135.766.427.06
60×604.585.426.247.03
63×635.035.956.847.718.609.48
70×705.426.427.398.349.3110.3
75×755.826.897.958.9710.011.1
80×807.378.509.6110.711.8
90×908.339.6511.9012.213.4
100×1009.2810.812.2013.615.0
Stainless Steel Channel Bar - Standard Sizes and Weight per Meter
Size (H×B mm) 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm
40×201.79
50×252.27
60×302.743.564.375.12
70×353.234.215.176.08
80×403.714.845.967.03
90×454.255.556.838.05
100×504.736.187.628.9810.311.713.041.2
120×609.2010.912.614.2
130×6510.111.913.815.517.319.1
140×7012.914.916.818.820.7
150×7513.916.018.120.222.226.3
160×8014.817.119.321.623.828.1
180×9016.719.422.024.527.032.0
200×10018.621.624.527.430.235.8
About Our Company
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and South Korea.
Available Materials
Our product range includes 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L, high-temperature resistant stainless steel series, duplex stainless steel series, super stainless steel series, and other specialized materials.
Processing Capabilities
  • Plasma cutting machines
  • Coil material opening equipment
  • Laser cutting machines
  • 8K mirror, grinding wire drawing, film and titanium plating equipment
  • Material opening, strip cutting, plate cutting
  • Oil mill wire drawing, complete coil oil film wire drawing
  • Thick plate cutting up to 150mm thickness
  • Custom cutting of rounds, squares, and shaped pieces
  • Casting parts and forging parts
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various other industries.
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM

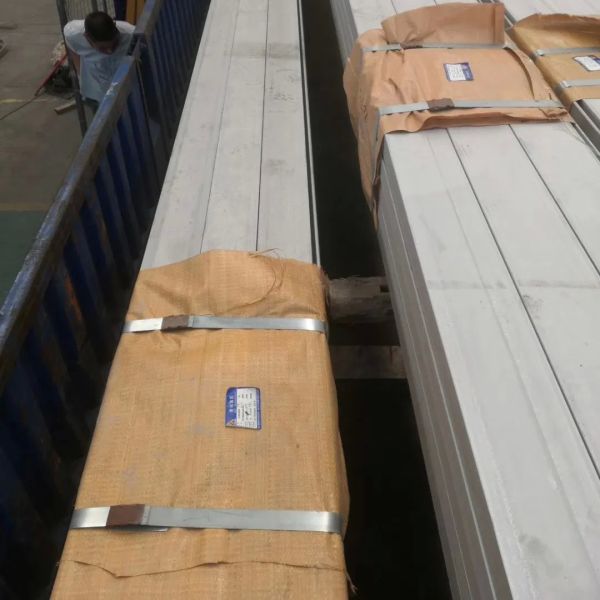

Product Photos
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Product Applications
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
Stainless steel angle bars and channel bars are primarily used for frame structures, including high-voltage power transmission towers, frame structures on both sides of main beams in steel structure bridges, columns and booms of tower cranes on construction sites, and columns and beams in workshops. They are also used for air-conditioning and solar-powered shelf installations under windows.
Widely applied in building structures and engineering construction projects such as house beams, ship beams, industrial furnaces, and various other structural applications across multiple industries.
Contact Us
Hot Rolled Pickled Bright Surface Stainless Steel Angle Bar SS Angle Bar ASTM
For inquiries about our stainless steel angle bars and channel bars, please contact our sales team for pricing, specifications, and custom requirements.
