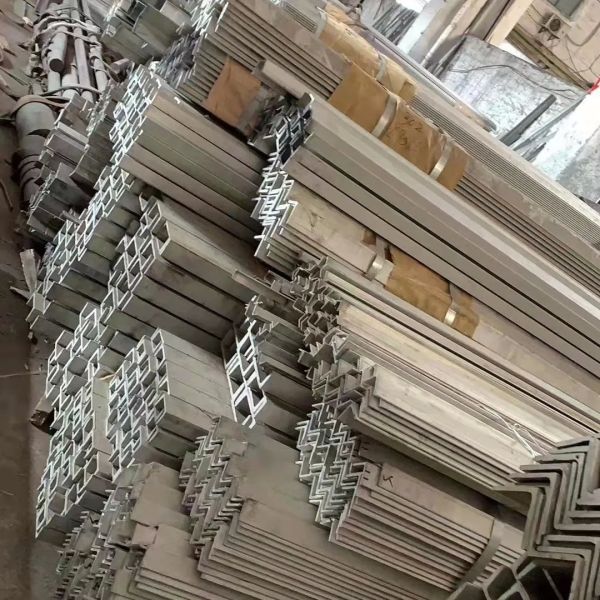

Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Specifications
MOQ :
30
Price :
1.79
Shape :
U Channel
Technique :
Hot Rolled
Surface Treatment :
Bright
Specification Range :
30*30-100*100
Angle Bar Size :
30*30*3 - 200*200*10mm * 6m length
Channel Bar Size :
50*30*3 - 200*100*10mm * 6m length
Grade :
201 304 310S 316L 321 2205
Standard :
ASTM GB DIN
Thickness Range :
3-12mm
Weight per Meter :
0.894-35.8kg
Length :
6m
Material :
Stainless Steel
Angle Bar Sizes :
20×20 to 100×100mm
Channel Bar Sizes :
40×20 to 200×100mm
Processing Service :
Cutting
Description
Stainless Steel Channel Bars & Angle Bars
High-quality Grade 201, 304, and 316L Stainless Steel Channel Bars (U Channels/C Channels) and Angle Bars for industrial applications.
Product Specifications
Product Name Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade 201, 304, 310S, 316L, 321, 2205, etc.
Standard ASTM, GB, DIN
Angle Bar Size 30×30×3 - 200×200×10mm × 6m length
Channel Bar Size 50×30×3 - 200×100×10mm × 6m length
Service Cutting
Packing Waterproof paper surround or wooden pallets
Brand TSINGSHAN
Stainless Steel Angle Bar Specifications
Size (A×B mm) Weight per Meter (kg) by Thickness
3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm
20×200.8941.131.38
25×251.131.451.772.06
30×301.371.772.172.53
35×351.612.092.573.01
40×401.852.412.973.49
45×452.122.763.404.00
50×502.363.073.794.465.135.766.427.06
60×604.585.426.247.03
63×635.035.956.847.718.609.48
70×705.426.427.398.349.3110.3
75×755.826.897.958.9710.011.1
80×807.378.509.6110.711.8
90×908.339.6511.9012.213.4
100×1009.2810.812.2013.615.0
Stainless Steel Channel Bar Specifications
Size (H×B mm) Weight per Meter (kg) by Thickness
3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm
40×201.79
50×252.27
60×302.743.564.375.12
70×353.234.215.176.08
80×403.714.845.967.03
90×454.255.556.838.05
100×504.736.187.628.9810.311.713.041.2
120×609.2010.912.614.2
130×6510.111.913.815.517.319.1
140×7012.914.916.818.820.7
150×7513.916.018.120.222.226.3
160×8014.817.119.321.623.828.1
180×9016.719.422.024.527.032.0
200×10018.621.624.527.430.235.8
About Our Company
We are a comprehensive stainless steel enterprise specializing in wholesale, material processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
  • Long-term partnerships with major steel mills including Taiyuan, East, Zhang Pu, and Zhejiang Qingshan
  • Distribution of imported stainless steel plates from Sweden, North America, South Africa, Japan, and Korea
  • Comprehensive material range including 310S, 309S, 316L, 321, 304L, TP304, and specialty alloys
  • Advanced processing equipment: plasma cutting, coil material opening, laser cutting, 8K mirror finishing
  • Custom cutting services for plates up to 150mm thickness
  • Serving machinery, chemical, petroleum, boiler, food, beverage, and medical equipment industries
Product Gallery
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Applications
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Stainless steel angle bars and channel bars are essential for frame structures in various industries:
  • High-voltage power transmission towers
  • Steel structure bridge frameworks
  • Tower crane columns and booms on construction sites
  • Workshop columns and beams
  • Air-conditioning and solar-powered shelf supports
  • Building structures and engineering construction
  • Ship beams and industrial furnaces
Contact Information
Grade 201 304 316L Hot Rolled Stainless Steel Channel Bar with Bright Surface U Channel
Contact us for pricing, specifications, and custom orders of our premium stainless steel channel bars and angle bars.
