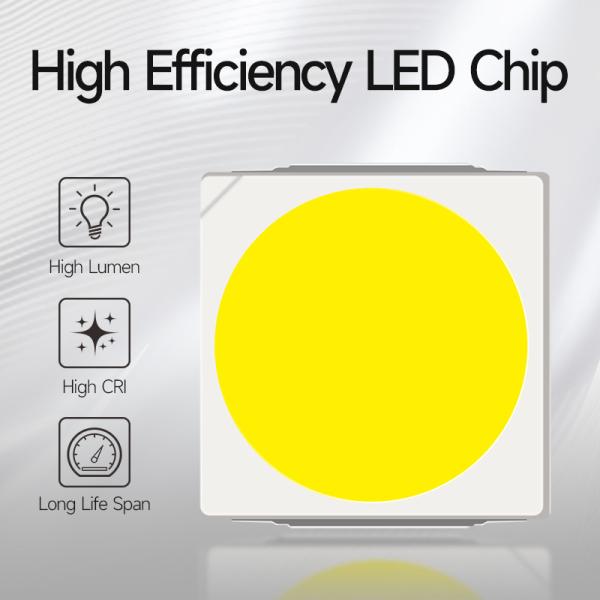

PCT Substrate SMD 5054 3V White High Light Efficiency 180LM/W 400mA LED CHIP
PCT Substrate SMD 5054 3V White High Light Efficiency 180LM/W 400mA LED CHIP
PCT Substrate SMD 5054 3V White High Light Efficiency 180LM/W 400mA LED CHIP
PCT Substrate SMD 5054 3V White High Light Efficiency 180LM/W 400mA LED CHIP
Specifications
Supply Ability :
200KKpcs/Month
Model :
HY-5054W30L200-3V4S
MOQ :
Negotiable
Certification :
Rohs
Brand Name :
HuanYu Dream
Delivery Time :
7-9 Work Days
Model Number :
HY-5054W30l200-3V4S
Color :
3000K
Price :
Negotiable
Voltage（V） :
3V
CRI（Ra） :
80
Packaging Details :
4000pcs/Reel
Customizable :
Support
Payment Terms :
T/T,Paypal,Ali Pay
Place of Origin :
China
Current(mA) :
600mA
Efficiency(lm/w) :
180LM/W@400mA
Substrate :
PCT
Description
PCT Substrate SMD 5054 3V White High Light Efficiency 180LM/W 400mA LED CHIP
This is a 5054 packaged, 3V driven, white, high-efficiency SMD LED. At a drive current of 400mA, it achieves a luminous efficacy of 180 lumens per watt and a color rendering index (Ra) greater than 80.
Technical Specifications--High Lumen High Efficiency SMD LED
Attribute Value
Model HY-5054W30L200-3V4S
Current 600mA
Voltage 3V
Color Temperature 3000K
CRI (Ra) 80
Efficiency 180LM/W@400mA
Substrate PCT
Customizable Supported
Key Features-SMD 5054 High Efficiency LED CHIP

  • Package Size: 5054 package, dimensions are 5.0mm × 5.4mm.


  • Electrical Parameters: Forward voltage is approximately 3.0V.


  • Photoelectric Performance: Emits white light, with a luminous efficacy of up to 180LM/W at 400mA current, and a color rendering index Ra=80, meeting general lighting needs.


  • Applications: Ideal for high-brightness LED tubes, bulbs, panel lights, and other lighting products.

Detailed Specifications--SMD LED 5054 CHIP
Parameter Specification
Electronic Power 2W
Color Temperature 3000K
Current (IF) 600mA
Forward Voltage (VF) 3V
Light Efficiency 180lm/w@400mA
CRI 80
Lumen Output 200-210LM
Dimensions 5.0*5.4mm
Chip Manufacturer Sanan/Epistar
Viewing Angle 120°
Warranty 3 years
Package Size--5054 SMD White LED CHIP

PCT Substrate SMD 5054 3V White High Light Efficiency 180LM/W 400mA LED CHIP


Applications--High Efficiency SMD 5054 LED CHIP

LED Bulbs/Candles: Suitable as replacements for traditional incandescent bulbs, providing high-brightness and uniform illumination.

LED Tubes (T5/T8): Used for strip lighting in office areas, shopping malls, or underground parking lots; high luminous efficacy contributes to energy savings.

LED Panel Lights: Used as the light source for side-lit or direct-lit panel lights, achieving high-brightness backlighting.

Industrial and Mining Lamps/Floodlights: Due to their high luminous flux per LED, suitable for industrial lighting or outdoor facade lighting where brightness requirements are stringent.

Ceiling Lights/Kitchen and Bathroom Lights: Used for indoor lighting in homes, ensuring bright spaces with natural color rendering (Ra>80).
