High Lumen High Efficiency 200LM/W 5054 SMD 100mA White 9V LED CHIP
High Lumen High Efficiency 200LM/W 5054 SMD 100mA White 9V LED CHIP
High Lumen High Efficiency 200LM/W 5054 SMD 100mA White 9V LED CHIP
High Lumen High Efficiency 200LM/W 5054 SMD 100mA White 9V LED CHIP
Specifications
Brand Name :
HuanYu Dream
Model Number :
HY-5054W60L800-3W
Certification :
Rohs
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,Paypal,Ali Pay
Supply Ability :
200KKpcs/Month
Delivery Time :
7-9 Work Days
Packaging Details :
4000pcs/Reel
Model :
HY-5054W60L800-3W
Current(mA) :
300mA
Voltage（V） :
9V
Color :
6000-6500K
CRI（Ra） :
80
Efficiency(lm/w) :
200LM/W@100mA
Substrate :
EMC
Customizable :
Support
Description
High Lumen High Efficiency 200LM/W 5054 SMD 100mA White 9V LED CHIP
Product Overview--High Light Efficiency SMD LED 5054
This is a high-brightness, high-efficiency SMD LED chip. Operating at 9V and 100mA, it boasts a luminous efficacy of up to 200 lumens per watt and produces strong white light. Its "5054" package size provides excellent heat dissipation and light emission performance, making it ideal for lighting applications requiring energy efficiency, high brightness, and limited space.
Technical Specifications--SMD 5054 LED CHIP
Attribute Value
Model HY-5054W60L800-9V6S
Current 300mA
Voltage 9V
Color Temperature 6000-6500K
CRI (Ra) 80
Efficiency 200LM/W@100mA
Substrate EMC
Customizable Supported
Product Function--High Power High Light Efficiency SMD 5054 CHIP

Ultra-high luminous efficacy: With a luminous efficacy of 200 lumens/watt, it means extremely low energy consumption and very high brightness, placing it at an industry-leading level.

High operating voltage: Utilizes a 9V drive voltage, facilitating series connection and simplifying certain circuit designs while improving stability.

Standard current drive: Operates at a common 100mA current, easily matching standard power supplies and drive solutions.

Large package size: Employs a "5054" package (5.0mm x 5.4mm), providing a larger chip area, better heat dissipation, and stronger light output capability.

Detailed Specifications--SMD 5054 High Light Efficiency
Parameter Specification
Electronic Power 3W
Color Temperature 6000-6500K
Current (IF) 300mA
Forward Voltage (VF) 9V
Light Efficiency 200lm/w@100mA
CRI 80
Lumen Output 800-850LM
Dimensions 5.0×5.4mm
Chip Manufacturer Sanan/Epistar
Viewing Angle 120°
Warranty 3 years

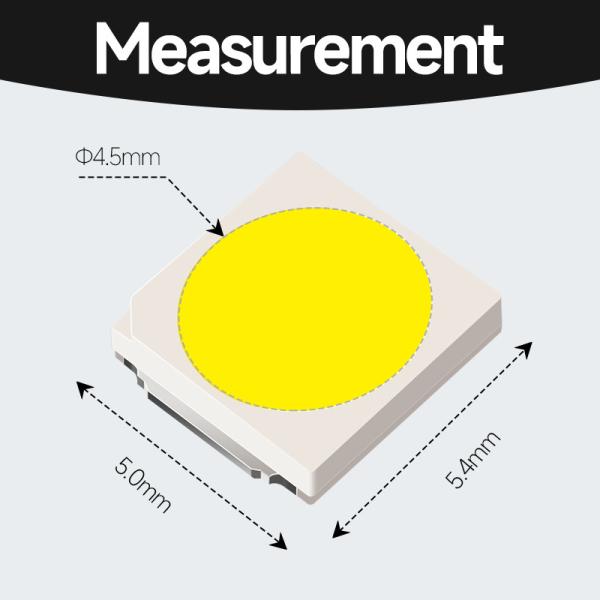

Package Size--White SMD 5054 LED

High Lumen High Efficiency 200LM/W 5054 SMD 100mA White 9V LED CHIP


Applications--SMD 5054 LED CHIP

Commercial and Industrial Lighting: Particularly suitable for high-ceilinged spaces such as supermarkets, factories, warehouses, and stadiums, its high luminous efficiency significantly reduces long-term electricity costs.

Outdoor and Road Lighting: Can be used for streetlights, tunnel lights, and high-mast plaza lights, etc. Its high brightness and efficiency meet the energy-saving and reliability requirements of public lighting.

Specialty and Professional Lighting: Suitable for professional equipment requiring concentrated, high-intensity light, such as floodlights, industrial and mining lamps, and photographic fill lights.

High-Demand Indoor Lighting: Can be used as a light source for high-end panel lights, linear lights, and grille lights, achieving lower energy consumption and heat generation while ensuring high brightness.
