Whole Sale LED Module 30W 40W 50W 60W 210lm/W IP66 Street Light 5054 LED Chip
Whole Sale LED Module 30W 40W 50W 60W 210lm/W IP66 Street Light 5054 LED Chip
Whole Sale LED Module 30W 40W 50W 60W 210lm/W IP66 Street Light 5054 LED Chip
Whole Sale LED Module 30W 40W 50W 60W 210lm/W IP66 Street Light 5054 LED Chip
Specifications
Supply Ability :
30000 units per day
IP Rate :
IP66
CRI :
Ra70(Can be Customized)
Place of Origin :
China
Beam Angle :
Type Ⅰ Ⅱ Ⅲ Ⅳ Ⅴ 30/60/90 Degree
LED Chip :
5054
Delivery Time :
7-15 Working Days
Model Number :
HY-M30-50H
Payment Terms :
Ali Pay,T/T,Paypal
CCT :
4000K(Can be Customized）
MOQ :
Negotiable
Power :
30W
Brand Name :
HuanYu Dream
Material :
Aluminum
Efficiency :
212lm/W
Price :
Negotiate
Packaging Details :
40pcs/Ctn
Description
Whole Sale LED Module 30W 40W 50W 60W 210lm/W IP66 Street Light 5054 LED Chip

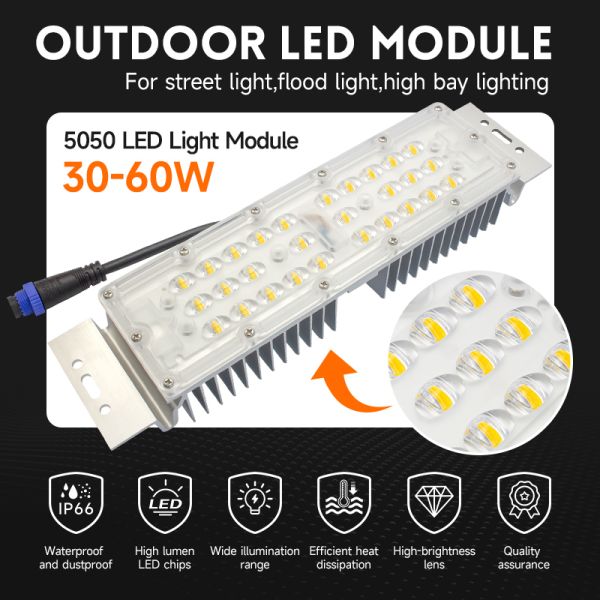

HuanYu LED Module is high-efficiency, waterproof LED modules and designed for street lighting, available for wholesale.
  • Product Type: LED Street Light Module (Wholesale)
  • Power Options: 30W, 40W, 50W, 60W
  • Luminous Efficacy: 210lm/W (Very high efficiency, leading to significant energy savings)
  • LED Chip: 5054 SMD Chip
  • Protection Rating: IP66
  • Application: Primarily for street lights, also suitable for flood lights, tunnel lights, and high bay lights.

Typical Features & Advantages

  • Modular Design: Easy to install, replace, and maintain. Often uses a standard interface (like M15) for plug-and-play functionality.
  • Superior Heat Dissipation: Equipped with an integrated aluminum heat sink to ensure long lifespan and stability.

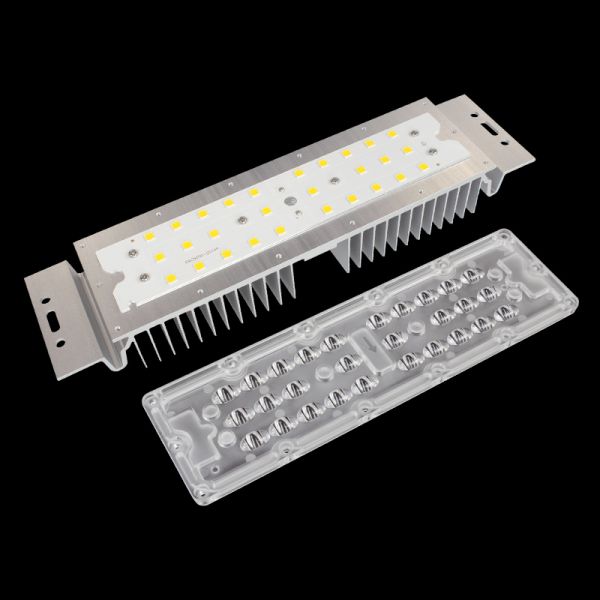

  • Optical Lens: Uses professional optical lenses to provide a batwing light distribution curve, which is perfect for uniform road illumination.
  • Durable Construction:
  • Housing: Die-cast aluminum.
  • Working Temperature: Can operate in a wide range, typically -40°C to +50°C.

Whole Sale LED Module 30W 40W 50W 60W 210lm/W IP66 Street Light 5054 LED Chip

Products Specifications:

Type IP66 LED Module 210lm/W for Street Light
Power 30W 40W 50W 60W
Efficiency >210lm/W >205lm/W >195lm/W >190lm/W
LEDs 5054 LED
CRI 70Ra (80Ra 90Ra Optional)
CCT 4000K (3000K/5000K/6000K Optional)
LED Qty 28pcs
IP Rate IP66
Body Material Aluminum
Connector Size M15
Wire Length 200mm/300mm Optional
Lifespan >50000 Hours
Lens Material PC(PMMA Optional)
Customize Yes

Whole Sale LED Module 30W 40W 50W 60W 210lm/W IP66 Street Light 5054 LED Chip

Whole Sale LED Module 30W 40W 50W 60W 210lm/W IP66 Street Light 5054 LED Chip

Whole Sale LED Module 30W 40W 50W 60W 210lm/W IP66 Street Light 5054 LED Chip

Key Words:

  • Use anodizing aluminum alloy heat-sink, improve the service life of radiator.
  • Excellent operating temperature -40~50 degree.
  • High performance design with multi-chips package 5050 LED Source.
  • Variety beam angles.
  • High Safety, low voltage input voltage.
  • Easy to assemble and maintain with national standard M15 electrical interface, achieved plugged and play, only need loosening the screw during maintenance.
  • IP66 Rating
  • 50,000 Hours Life-Span and 5 Years Warranty.
