Outdoor Lighting SMD LED 3030 High Efficiency White 150mA 6V LED CHIP
Outdoor Lighting SMD LED 3030 High Efficiency White 150mA 6V LED CHIP
Outdoor Lighting SMD LED 3030 High Efficiency White 150mA 6V LED CHIP
Outdoor Lighting SMD LED 3030 High Efficiency White 150mA 6V LED CHIP
Specifications
Brand Name :
HuanYu Dream
Model Number :
HY-3030W40L160-1W
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,Paypal,Ali Pay
Supply Ability :
500000pcs/Day
Delivery Time :
7-9 Work Days
Packaging Details :
5000pcs/Reel
CRI :
80Ra
LED Type :
High Light Efficiency 3030 SMD LED Chip
Voltage :
6.0-6.2V
IF :
150mA
Efficiency :
182LM/W@150mA
Color(CCT) :
4000K
Life Span :
50000hrs
Warranty :
3years
Customized :
Availabe
Description
Outdoor Lighting SMD LED 3030 High Efficiency White 150mA 6V LED CHIP
This is a medium-power SMD LED CHIP using a 3030 package. Driven at 6V and 150mA, it emits 4000K neutral white light. Its core advantage is its excellent luminous efficacy of up to 182LM/W, demonstrating superior energy efficiency. It also boasts a good color rendering index (Ra80), accurately reproducing the colors of objects. It is suitable for commercial and residential lighting scenarios where high luminous efficacy and color accuracy are required. During use, attention should be paid to heat dissipation, and a constant current driver should be used to ensure stable performance.
Key Attributes--SMD 3030 High Efficiency LED CHIP
Attribute Value
CRI 80Ra
LED Type High Light Efficiency 3030 SMD LED Chip
Voltage 6.0-6.2V
IF 150mA
Efficiency 182LM/W@150mA
Color (CCT) 4000K
Life Span 50000hrs
Warranty 3 years
Customized Available

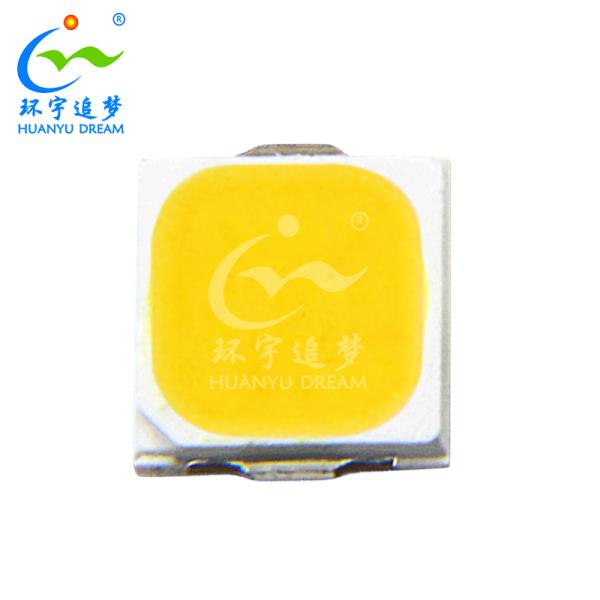

Product Graph--SMD 3030 LED CHIP

Outdoor Lighting SMD LED 3030 High Efficiency White 150mA 6V LED CHIP

Applications--High Efficiency SMD 3030 LED CHIP

  • Indoor Basic Lighting

    Panel Lights/Flat Panel Lights: Utilizing their high luminous efficacy and neutral white light, they provide uniform and comfortable lighting for offices or classrooms.

    Downlights/Spotlights: Suitable for living rooms, shopping malls, hotels, and other locations requiring focused or ambient lighting.


  • Commercial Space Lighting

    Shop Lighting: Ra80 color rendering index (CRI) effectively showcases product colors, while a 4000K color temperature creates a clean and bright shopping environment.

    Office Lighting: Neutral white light helps with concentration, and high luminous efficacy meets energy-saving and environmental protection requirements.


  • Industrial and Auxiliary Lighting

    Industrial and Mining Lamps/High Bay Lamps (Auxiliary or Low-Power Models): Used as supplementary light sources in industrial environments requiring high luminous efficacy and a certain CRI.

    Outdoor Landscape Lighting (e.g., LED Strips, Modules): Can be used for decorative lighting applications such as building outlines and billboards where luminous efficacy and lifespan are important.


    Summary: This product is primarily positioned in the mid-to-high-end indoor and commercial lighting market, where a comprehensive range of luminous efficacy, CRI, and color comfort is required.
