High Efficiency 150mA 190LM/W SMD 3030 5.6-6V White LED CHIP
High Efficiency 150mA 190LM/W SMD 3030 5.6-6V White LED CHIP
High Efficiency 150mA 190LM/W SMD 3030 5.6-6V White LED CHIP
High Efficiency 150mA 190LM/W SMD 3030 5.6-6V White LED CHIP
Specifications
Brand Name :
HuanYu Dream
Model Number :
HY-3030W30L160-1W
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,Paypal,Ali Pay
Supply Ability :
500000pcs/Day
Delivery Time :
7-9 Work Days
Packaging Details :
5000pcs/Reel
CRI :
80Ra
LED Type :
High Light Efficiency 3030 SMD LED Chip
Voltage :
5.6-6.0V
IF :
150mA
Efficiency :
190LM/W@150mA
Color(CCT) :
3000K
Life Span :
50000hrs
Warranty :
3years
Customized :
Availabe
Description
High Efficiency 150mA 190LM/W SMD 3030 5.6-6V White LED CHIP
This is a high-efficiency white LED chip in an SMD 3030 package. Its key feature is its ability to deliver an outstanding luminous efficacy of up to 190 lumens per watt at an operating voltage of 5.6 to 6 volts. With a standard drive current of 150 mA, it provides high-brightness and energy-efficient lighting, suitable for general or professional lighting solutions that prioritize high luminous efficacy and reliability.
Technical Specifications--High Efficiency SMD 3030 LED CHIP
Attribute Value
CRI 80Ra
LED Type 3030 SMD LED Chip High Light Efficiency
Voltage 5.6-6V
IF 150mA
Efficiency 190LM/W@150mA
Color (CCT) 3000K
Life Span 50000hrs
Warranty 3 years
Customized Available

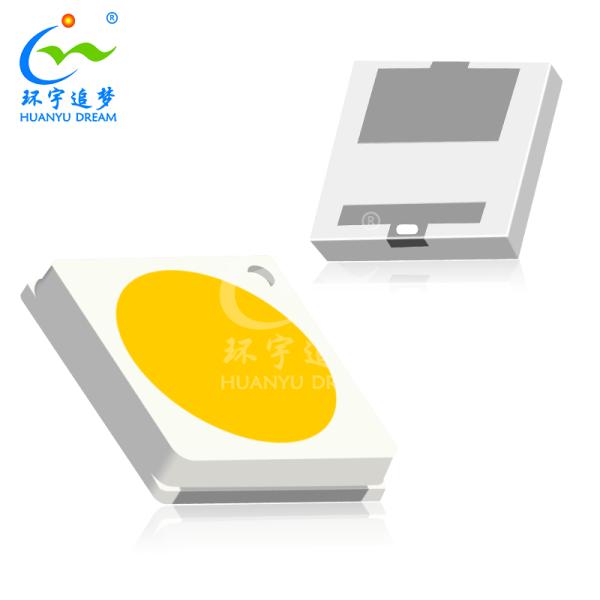

Product Image-SMD 3030 LED CHIP

High Efficiency 150mA 190LM/W SMD 3030 5.6-6V White LED CHIP

Application Areas--SMD 3030 High Efficiency
  • High-efficiency lighting: Used in LED bulbs, tubes, and panel lights, achieving energy savings and high brightness.
  • Commercial and industrial: Suitable for high-bay lights and industrial/mining lights, reducing long-term electricity costs.
  • Compact equipment: Recessed spotlights, emergency lights, electrical indicators, and other space-sensitive designs.
  • Solar systems: Ideal light source for high-efficiency requirements such as solar lighting fixtures and off-grid lighting.
