Wide color gamut 120 Degree View 3840 Phosphor RGBW 4IN1 SMD LED CHIP
Wide color gamut 120 Degree View 3840 Phosphor RGBW 4IN1 SMD LED CHIP
Wide color gamut 120 Degree View 3840 Phosphor RGBW 4IN1 SMD LED CHIP
Wide color gamut 120 Degree View 3840 Phosphor RGBW 4IN1 SMD LED CHIP
Specifications
Power :
0.5W
Price :
Negotiable
Warranties :
3 years
CCT :
2700-6500K
Packaging Details :
1000pcs/Reel
Delivery Time :
7-9 Work Days
Current :
150mA*4
MOQ :
Negotiable
Place of Origin :
China
Voltage :
3V
Payment Terms :
T/T,Paypal,Ali Pay
Type :
SMD 3840 RGBW LED CHIP
Model Number :
HY-3840PRGBW-0.5W
Brand Name :
HuanYu Dream
Certification :
Rohs
Supply Ability :
200KKpcs/Month
Description
Wide color gamut 120 Degree View 3840 Phosphor RGBW 4IN1 SMD LED CHIP

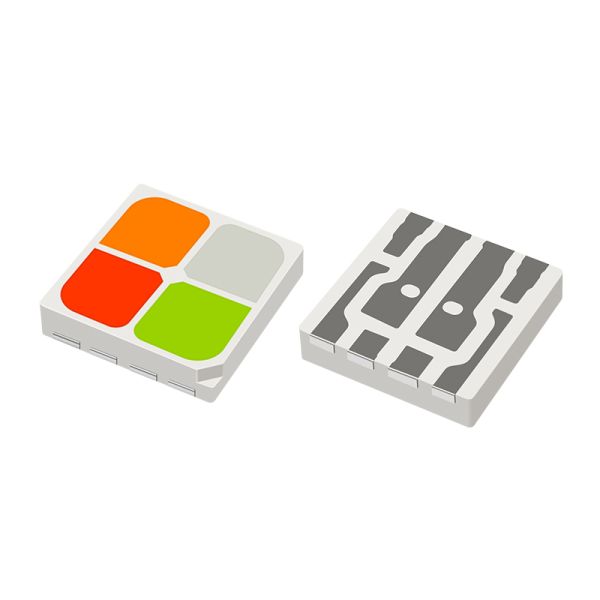

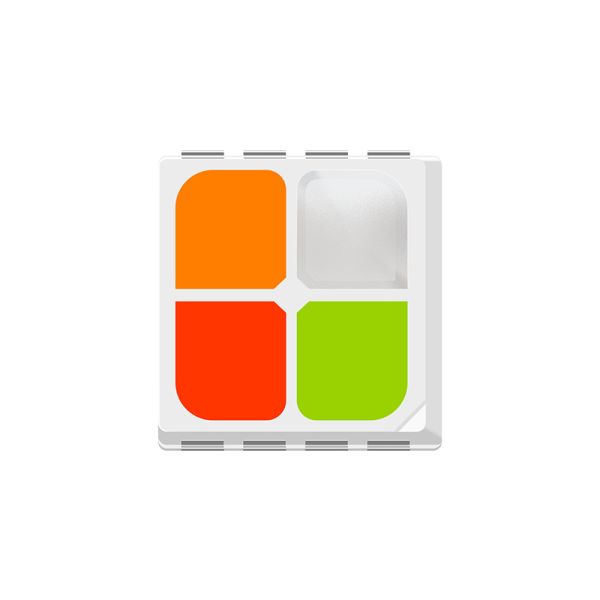

This product is 3.8*4.0MM package size SMD LED chip with 4-in-1 RGBW phosphor technology, delivering wide color gamut and a 120-degree viewing angle.
Key Features--smd 5054 led chip

  • 4-in-1 SMD: Integrates four colors (red, green, blue, and white, or RGBW) within a single package.

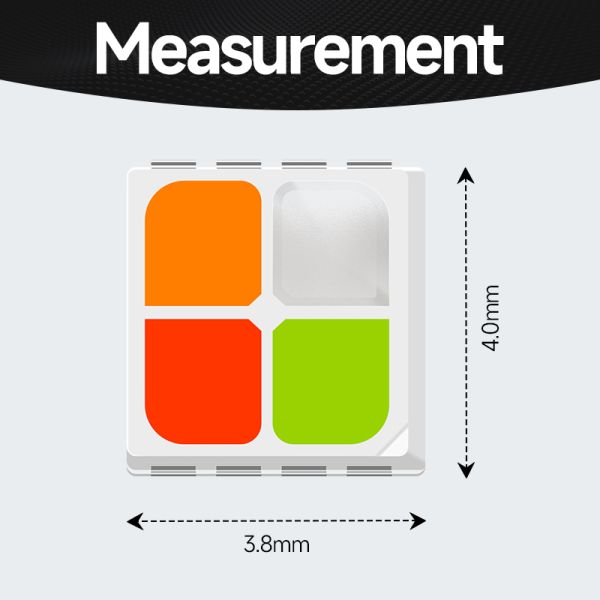

  • 3840: Indicates the SMD device's dimensions are 3.8mm × 4.0mm .


  • Phosphor: White light chips are generated by exciting phosphors with blue light, rather than directly mixing RGB, resulting in purer colors.


  • Wide Color Gamut: Covers a wider range of colors, resulting in more vibrant and realistic images.


  • 120° View: Minimal color and brightness attenuation.

Technical Specifications--3840 RGBW LED CHIP
Attribute Value
Type 3840 PRGBW LED Chip
Power 0.5W
Voltage 3V
Current 150mA×4
CCT 2700-6500K
Warranty 3 years

Wide color gamut 120 Degree View 3840 Phosphor RGBW 4IN1 SMD LED CHIP


Applications--3840 smd led

Wide color gamut 120 Degree View 3840 Phosphor RGBW 4IN1 SMD LED CHIP



High-end rental LED displays: Used for concerts, press conferences, and other events; wide color gamut and wide viewing angle ensure consistent viewing experience for audiences from all angles.


Broadcast and television studio background screens: Meets camera shooting requirements; maintains color accuracy even from side camera positions; RGBW technology ensures a purer white background.


Indoor and outdoor advertising and information screens: Installed in high-traffic areas such as shopping malls, airports, and train stations; minimal color and brightness attenuation when viewed from multiple angles.


High-end conference and command center large screens: Accurately displays charts, data, and video feeds; clear white text without rainbow effects.Creative displays and irregularly shaped screens: 4-in-1 encapsulation for bending resistance; suitable for flexible or curved designs; wide color gamut meets the high color requirements of artistic displays.


Sports stadium fence screens and scoreboards: Suitable for wide-angle viewing by spectators and athletes; bright colors and high reliability.
