Specifications
Packaging Details :
1000pcs/Reel
Power :
1W
Model Number :
HY-5054RGBW
Certification :
RoHS
Price :
Negotiable
Voltage :
2.0-2.4V/3.0-3.6V
Brand Name :
HuanYu Dream
Place of Origin :
China
Payment Terms :
T/T,Paypal,Ali Pay
Supply Ability :
200KKpcs/Month
Delivery Time :
7-9 Work Days
Feature :
RGBW 4 colors in one
Availiable Power :
0.5W / 1W
Current :
300mA adjustable
MOQ :
Negotiable
Type :
3838RGBW
Description
1W Full Color Gamut Spectrum RGBW 4 Colors SMD LED Chip for Smart Home Lamp
Product Overview

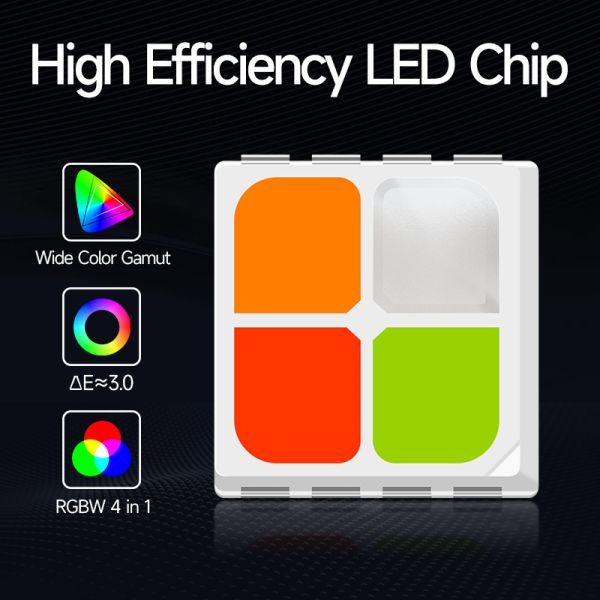

  • 0.5W 1W 3838 SMD LED Chip RGBW

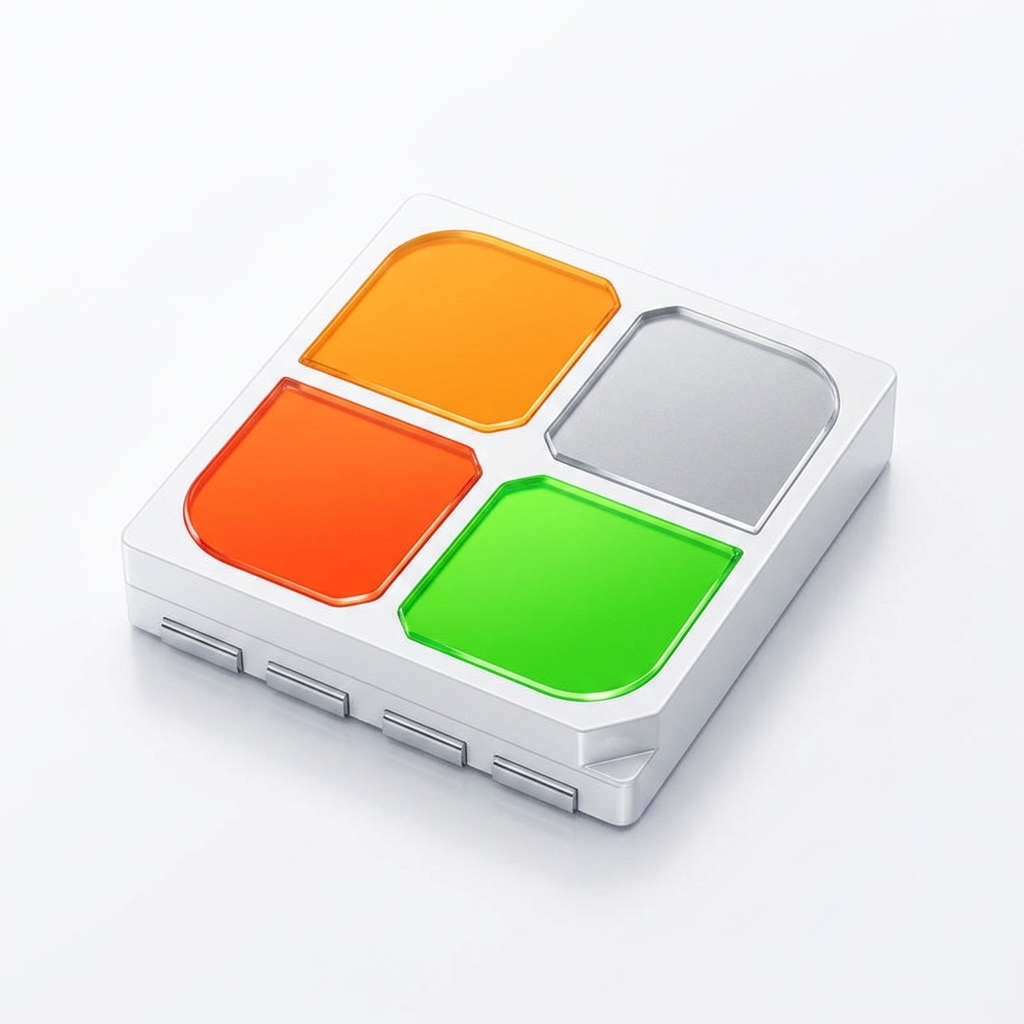

  • 4-Chip-Built-In RGBW 3838 SMD
  • 4 In 1 SMD 3838 RGBCW LED Light featuring 4-channel separate control with excellent mixing light and color capabilities.
Key Features
  • Available in 0.5W and 1W power options
  • 4-channel separate control for precise color mixing
  • High brightness and superior light efficiency
  • Compact, convenient, and flexible design

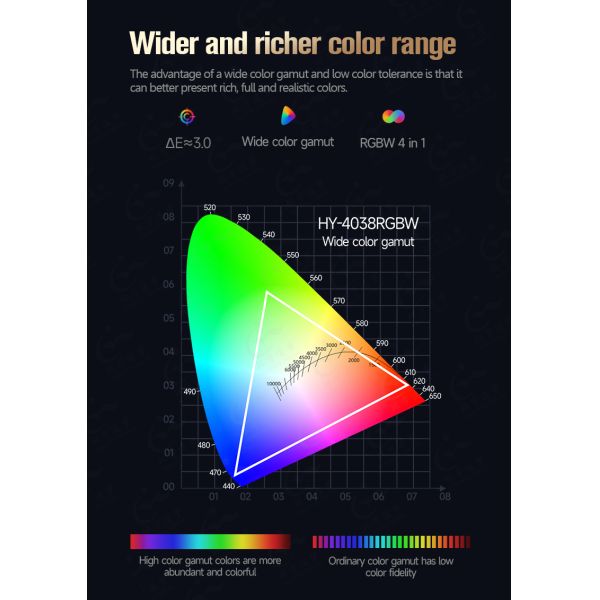

  • It expands the application boundaries of light in healthy lighting and achieves all-weather dynamic light color adjustment along the blackbody radiation curve within a wide color temperature range of 1800~12000K.
High Brightness 1W Power RGBW 4 Colors SMD LED Chip 3838 RGBW LED 4-in-1 LED Dimmable Full Color Gamut Spectrum SMD for LED Strip Light for Smart Home Lamp
Technical Specifications - 1W Model
Model No. RGBW SMD 3838
LED Package 3.8mm × 4.0mm x 0.8mm
Data Color Red | Green | Blue | White

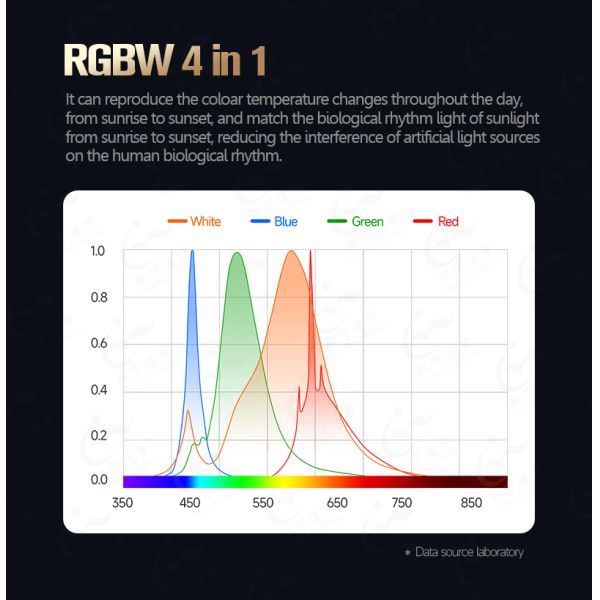

Wave Length 625nm-635nm | 520nm-530nm | 465nm-475nm | 2200-2500K
Flux 20-25LM | 33-38LM | 10-12LM | 58-63LM
Typical Forward Voltage 3.0-3.4V | 3.0-3.4V | 3.0-3.4V | 3.0-3.4V
DC Forward Current 150mA × 4 (tunable)
Typical Power Dissipation 1W(tunable)
Technical Specifications - 4W Model
Model No. RGBW SMD 3838
LED Package 3.8mm × 4.0mm x 0.8mm
Data Color Red | Green | Blue | White
Wave Length 625nm-635nm | 520nm-530nm | 465nm-475nm | 2200-2500K
Flux 20-25LM | 33-38LM | 10-12LM | 58-63LM
Typical Forward Voltage 3.0-3.4V | 3.0-3.4V | 3.0-3.4V | 3.0-3.4V
DC Forward Current 75mA × 4 (tunable)
Typical Power Dissipation 0.5W(tunable)
Emitting Color RGB | W
Viewing Angle 120°
Operating Temperature -40℃ to +100℃
Storage Temperature -40℃ to +100℃
Available in a broad range of CCT (1200-12000K). Contact us for specific requirements and wavelength customization.

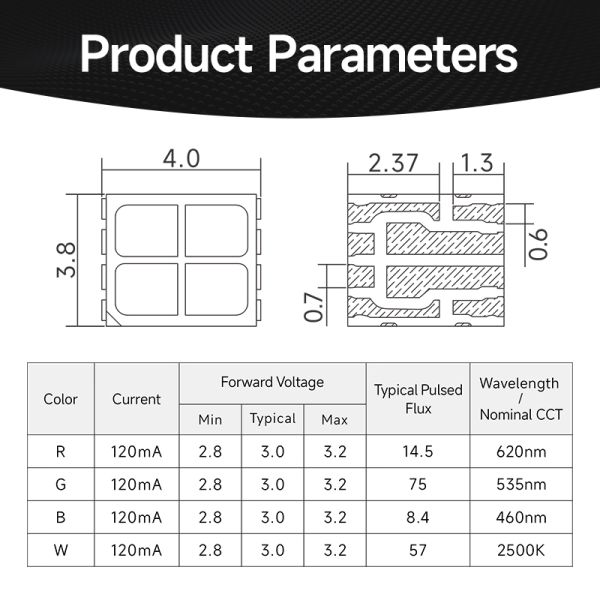

Package Dimension
High Brightness 1W Power RGBW 4 Colors SMD LED Chip 3838 RGBW LED 4-in-1 LED Dimmable Full Color Gamut Spectrum SMD for LED Strip Light for Smart Home Lamp
Applications
  • High Power LED Lamp
  • Down light, wall lamp, garden light
  • Stage lighting
  • Spot lighting, ceiling light
  • Decorative lighting, show lighting
  • Landscape lighting, lighting engineering
High Brightness 1W Power RGBW 4 Colors SMD LED Chip 3838 RGBW LED 4-in-1 LED Dimmable Full Color Gamut Spectrum SMD for LED Strip Light for Smart Home Lamp
