Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Specifications
Brand Name :
1stess
Model Number :
GM (PV60-500VDC) 6200-48PL
Certification :
CE, IEC
Place of Origin :
China
MOQ :
1 piece
Price :
To be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
2000 pieces per month
Delivery Time :
30 days
Packaging Details :
carton box
Charging Mode :
MPPT
Operating Temperature :
-10°C To 50°C
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Nominal Output Voltage :
220VAC/230/240VAC
Communication Interface :
RS232+RS485+ External CT Port
Acceptable Input Voltage Range :
170-280VAC or 90-280VAC
Size :
450*300*130mm
Waveform :
Pure Sine wave
Output Current :
120A
Weight :
12kg
Description
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Product Features
  • Self-consumption and Feed-in to the grid
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
  • Backflow prevention via external CT sensor and grid connection function
  • Parallel operation up to 12 units in 1phase or 3phase
  • Direct Plug WiFi Dongle Supported
  • Output power factor 1.0
  • High PV input voltage range 500Vdc Max
  • Built-in MPPT solar controller 100/120A
  • WiFi remote monitoring optional
  • Detachable dust cover for harsh environment
  • User-adjustable charging current and voltage
  • Programmable supply priority for PV, Battery or Grid
  • Support multiple output priority: SBU/SUB/SUF/ZEC
  • EQ function to optimize battery performance and extend lifecycle

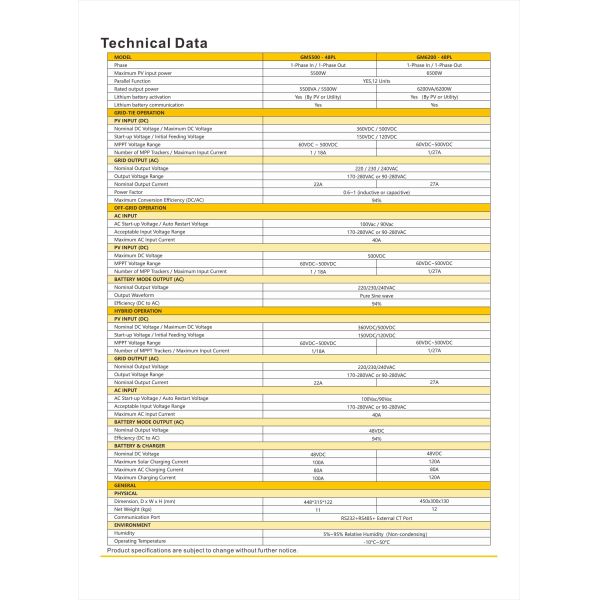

Technical Parameters
Parameter GM5500-48PL GM5500-48PL
Phase 1-Phase In/1-Phase Out 1-Phase In /1-Phase Out
Maximum PV input power 5500W 6500W
Nominal Output Voltage 220/230/240VAC 220/230/240VAC
Waveform Pure Sine wave Pure Sine wave
Battery Voltage 48VDC 48VDC
Communication Port RS232+RS485+External CT Port RS232+RS485+External CT Port
Max.Solar Charge Current 100A 120A
Dimension, D x W x H(mm) 448*315*122 450x300x130
Product Images
Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid Grid-Tie and Backup 48V Single Phase Hybrid Solar Inverter 5.5kw 6.2kw Pure Sine Wave MPPT Off Grid
Africa Spotlight: South Africa - Load-Shedding Solution with Parallel Scalability
JOHANNESBURG, SOUTH AFRICA - South Africa's "Load-shedding" crisis has created the world's most competitive hybrid inverter market. Homeowners demand seamless transition speeds and the ability to expand their systems over time.
The GM Series rises to the challenge with parallel operation for up to 12 units. A homeowner can start with a single GM5500-48PL and, as budget allows, stack additional units to handle larger loads like geysers and ovens without scrapping existing hardware. This modularity is a massive selling point in a price-sensitive but quality-conscious market.
Technical Superiority: With a start-up voltage as low as 150VDC, the system begins charging early in the morning and runs later into the evening, maximizing the use of limited winter sun. This wide operating window is essential for the Highveld region's clear but short winter days.
