Specifications
Brand Name :
1stess
Model Number :
EM (PV60-500VDC) 550048L
Certification :
CE, IEC
Place of Origin :
China
MOQ :
1 piece
Price :
To be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
2000 pieces per month
Delivery Time :
30 days
Packaging Details :
carton box
Charging Mode :
MPPT
Operating Temperature :
-10°C To 50°C
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Output Voltage :
48VDC
Communication Interface :
RS232+RS485
Description
24V 3.5kW 48V 5.5kW Off Grid Hybrid Solar Inverter with MPPT
Product Description:
  • 1. Lithium battery activation function by PV or Utility
  • 2. Compatible work with lifepo4 battery via Rs485
  • 3. Pure sine wave
  • 4. Powerfactor 1.0
  • 5. PVinput Voltage 60Vdc-500Vdc
  • 6. Built-inMPPT60A/100A/120A
  • 7. Capable to work without battery
  • 8. Detachable dustcover for harsh environment
  • 9. WiFiremote monitoring optional
  • 10. Support multiple output priority:UTL,SOL,SBU, SUB
  • 11. EQ function to optimize battery performance and extend lifecycle
Model Number EM3500-24L EM5500-48L EM6200-48L
Place of Origin China China China
Mounting Method Wall Bracket Wall Bracket Wall Bracket
Nominal Battery Voltage (V) 24VDC 48VDC 48VDC
Lithium Battery activation YES( By PV or Utility) YES( By PV or Utility) YES( By PV or Utility)
Nominal Voltage 230VAC 230VAC 230VAC
Lithium Battery communication YES(RS485) YES(RS485) YES(RS485)
Frequency 50/60Hz 50/60Hz 50/60Hz
Waveform Pure Sine wave Pure Sine wave Pure Sine wave
Solar Charger Type MPPT MPPT MPPT
Communication Interface RS232+RS485 RS232+RS485 RS232+RS485
PV Array MPPT Voltage Range 60VDC~500VDC 60VDC~500VDC 60VDC~500VDC
Surge Power 7000VA 11000VA 1240VA

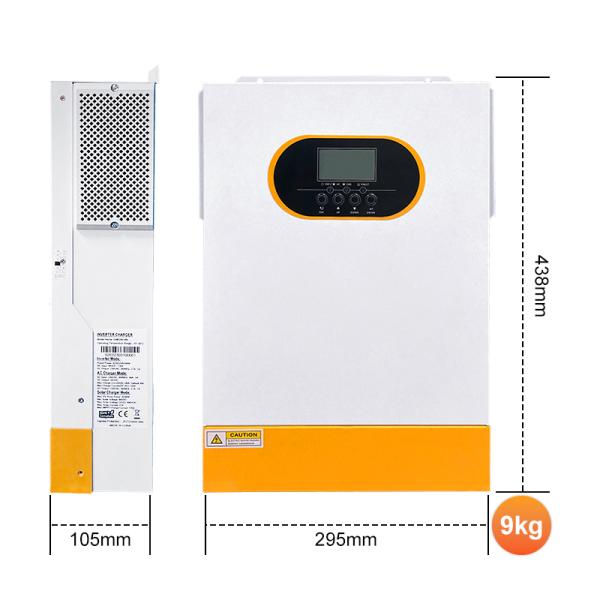

Size 358*295*100mm 438*295*105mm 438*295*105mm
Weight 7kg 9kg 9kg
Operating Temperature Range (-10'℃ to 50℃) (-10'℃ to 50℃) (-10'℃ to 50℃)
