Specifications
Brand Name :
1stess
Model Number :
GM (PV60-500VDC) 6200-48PL
Certification :
CE, IEC
Place of Origin :
China
MOQ :
1 piece
Price :
To be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
2000 pieces per month
Delivery Time :
30 days
Packaging Details :
carton box
Charging Mode :
MPPT
Operating Temperature :
-10°C To 50°C
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Nominal Output Voltage :
220VAC/230/240VAC
Communication Interface :
RS232+RS485+ External CT Port
Acceptable Input Voltage Range :
170-280VAC or 90-280VAC
Size :
450*300*130mm
Waveform :
Pure Sine wave
Output Current :
120A
Weight :
12kg
Description
WiFi Remote Monitor 48V 5.5kw 6.2kw Single Phase Pure Sine Wave Hybrid Solar Inverter MPPT Off Grid System
Product Features
  • Self-consumption and Feed-in to the grid
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
  • Backflow prevention via external CT sensor and grid connection function
  • Parallel operation up to 12 units in 1phase or 3phase
  • Direct Plug WiFi Dongle Supported
  • Output power factor 1.0
  • High PV input voltage range 500Vdc Max
  • Built-in MPPT solar controller 100/120A
  • WiFi remote monitoring optional
  • Detachable dust cover for harsh environment
  • User-adjustable charging current and voltage
  • Programmable supply priority for PV, Battery or Grid
  • Support multiple output priority: SBU/SUB/SUF/ZEC
  • EQ function to optimize battery performance and extend lifecycle
Technical Specifications
Parameter GM5500-48PL GM5500-48PL
Phase 1-Phase In/1-Phase Out 1-Phase In /1-Phase Out
Maximum PV input power 5500W 6500W
Nominal Output Voltage 220/230/240VAC 220/230/240VAC
Waveform Pure Sine wave Pure Sine wave
Battery Voltage 48VDC 48VDC
Communication Port RS232+RS485+External CT Port RS232+RS485+External CT Port
Max.Solar Charge Current 100A 120A

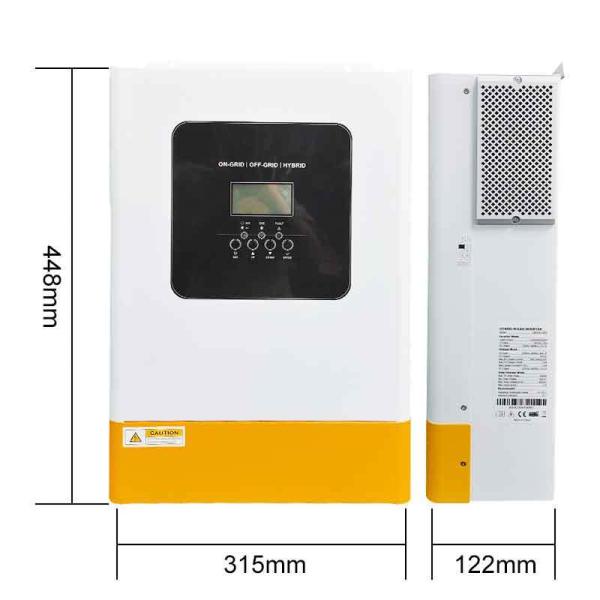

Dimension, D x W x H(mm) 448*315*122 450x300x130
Product Gallery
WiFi Remote Monitor 48V 5.5kw 6.2kw Single Phase Pure Sine Wave Hybrid Solar Inverter MPPT Off Grid System WiFi Remote Monitor 48V 5.5kw 6.2kw Single Phase Pure Sine Wave Hybrid Solar Inverter MPPT Off Grid System WiFi Remote Monitor 48V 5.5kw 6.2kw Single Phase Pure Sine Wave Hybrid Solar Inverter MPPT Off Grid System WiFi Remote Monitor 48V 5.5kw 6.2kw Single Phase Pure Sine Wave Hybrid Solar Inverter MPPT Off Grid System WiFi Remote Monitor 48V 5.5kw 6.2kw Single Phase Pure Sine Wave Hybrid Solar Inverter MPPT Off Grid System WiFi Remote Monitor 48V 5.5kw 6.2kw Single Phase Pure Sine Wave Hybrid Solar Inverter MPPT Off Grid System WiFi Remote Monitor 48V 5.5kw 6.2kw Single Phase Pure Sine Wave Hybrid Solar Inverter MPPT Off Grid System WiFi Remote Monitor 48V 5.5kw 6.2kw Single Phase Pure Sine Wave Hybrid Solar Inverter MPPT Off Grid System
Middle East Spotlight: Saudi Arabia - Powering the Vision 2030 with Scalable Solar

RIYADH, SAUDI ARABIA - With Saudi Arabia's "Vision 2030" targeting 130GW of renewable capacity, the focus is on massive utility projects, but the backbone of the private sector lies in reliable power for compounds, farms, and workshops. The challenge is the combination of extreme heat and frequent dust storms.

The GM Series' detachable dust cover is not an accessory; it is a maintenance necessity in the Riyadh and Jeddah environments, preventing fine dust from clogging fans and cooling systems. The output power factor of 1.0 ensures that every watt of solar power is usable, maximizing the return on investment for businesses.

Why Distributors Choose GM: The ability to operate in Grid-tie, off-grid, and grid-tie with backup modes makes this a versatile SKU for distributors. A single unit can serve a residential villa in the morning and be paralleled into a three-phase system for a small factory in the afternoon. The high 100/120A MPPT charge current ensures that battery banks are charged quickly during the limited window of optimal sunlight, a critical feature given the intense but short peak sun hours.
